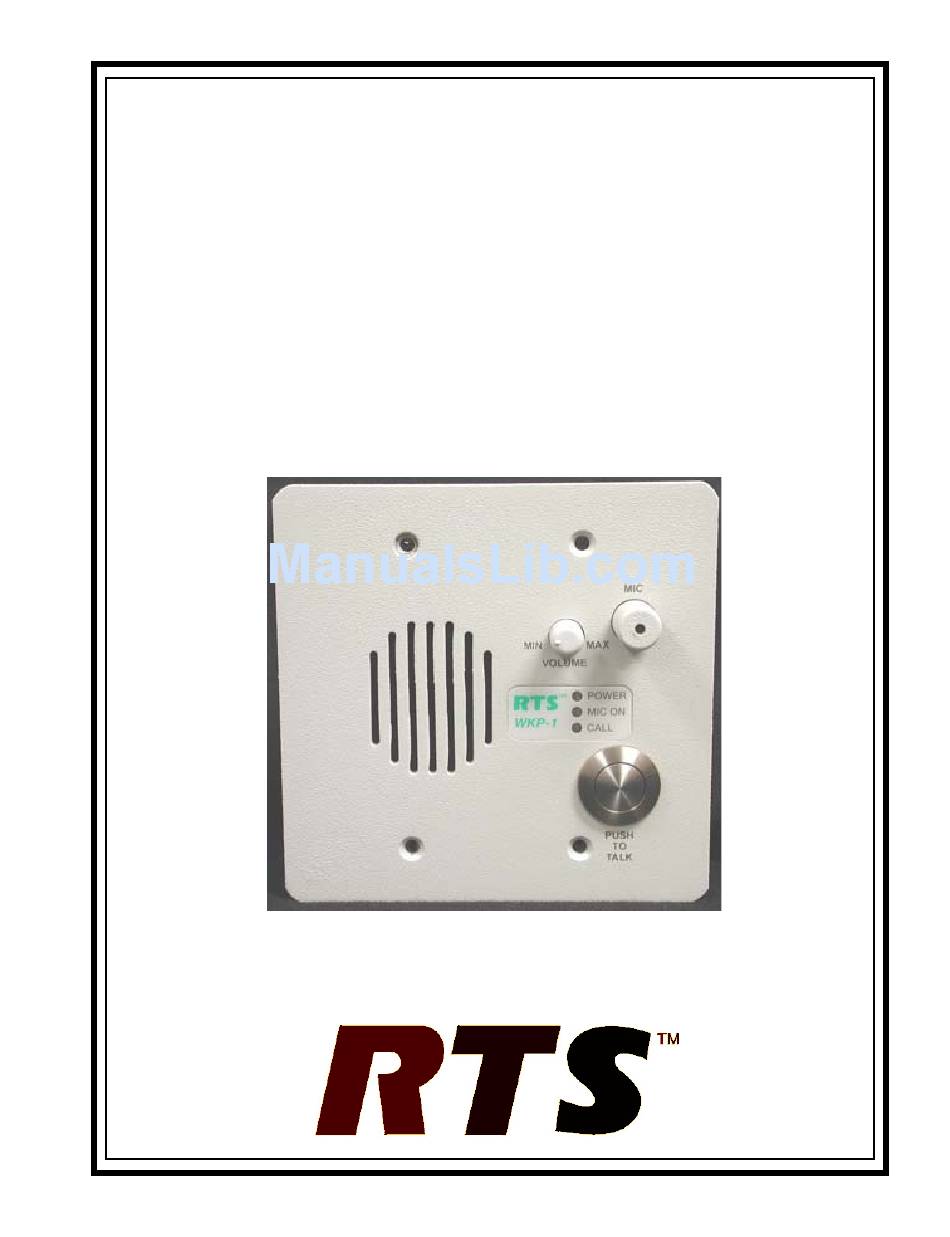

- Page 1 User Manual WKP-1 Digital Matrix Intercom System Industrial Keypanel 9350-7746-000 Rev F 09/2004...
-
Page 2: Proprietary Notice
Inc. to be free from defects in materials and workmanship for a period of three years from the date of sale. The sole obligation of Telex during the warranty period is to provide, without charge, parts and labor necessary to remedy covered defects appearing in products returned prepaid to Telex. -
Page 3: End-User License Agreement For Telex Software
End-User License Agreement for Telex IMPORTANT: Please read this document carefully before using this product. THIS DOCUMENT STATES THE TERMS AND CONDITIONS UPON WHICH TELEX COMMUNICATIONS, INC. (the “COMPANY”) OFFERS TO LICENSE THE INSTALLED SOFTWARE OR PROGRAM (“the SOFTWARE”) FOR USE WITH THE PRODUCT IN WHICH IT WAS INSTALLED. - Page 4 WKP-1 Digital Matrix Intercom System Industrial Keypanel...
-
Page 5: Table Of Contents
5.2 Intercom Key Operation for Different Types of Key Assignments ... 15 5.3 Intercom Key Indications ... 15 5.4 Incoming Calls ... 16 5.5 Operation With the TIF-2000 Telephone Interface ... 16 WKP-1 Digital Matrix Intercom System Industrial Keypanel Contents... -
Page 6: Description And Specifications
1 DESCRIPTION AND SPECIFICATIONS 1.1 GENERAL DESCRIPTION Telex has refined the look of multi-location security with the WKP-1 industrial keypanel. It offers simplified operation and integrates seamlessly with RTS™ digital intercom systems (RTS™ ADAM™/ZEUS™ intercom systems). The physical size and weather-resistant design provides a flexible, robust intercom system. -
Page 7: Specifications
Terminal strip for use with unterminated cabling. Size: Width: 4.562” Length: 4.5” Depth: 2.525”/2.7 with cable attached Note: The keypanel fits a standard 2-gang, minimum 3” deep electrical box. WKP-1 Digital Matrix Intercom System Industrial Keypanel Figure 2. WKP-1 Industrial Keypanel size requirements. -
Page 8: Installation
WKP-1 User Manual Installation and Mounting The WKP-1 mounts directly into a standard two-gang electrical box. The electrical box must be at minimum 3 inches deep to accommodate the stacked design of the pc boards (see figure 2). DIP Switches DIP Switch 1 Open: Default setting. -
Page 9: Address Switch
Use that number to set the WKP-1 Address switch. 2) If you know the connector number (on the back of the ADAM CS frame) that the keypanel will be connected to, look up that connector number in the work sheet, then read across to the appropriate logical keypanel number. -
Page 10: Change Gain Settings With The Application Setup
Speaker. When this occurs a continuous audio loop forms which creates a feedback or squeal. For example, in Figure 3 audio enters the Mic in the WKP-1, goes to the Matrix, then out the speaker on the KP-32. If the Mic on the KP- 32 is ON, the sound emitting from the speaker may be picked up by the mic and sent back to the matrix and to the Industrial keypanel, thus creating an audio loop. - Page 11 Figure 4. The middle board in the WKP-1 (also referred to as the audio board). There are 3 gain control pots that can be configured to reduce feedback. By turning the gain control clocwise, increases the gain level, turning it counter-clockwise, decreases the gain level.
-
Page 12: Contents Of The Different Boards
Figure 5. WKP-1 3-dimensional view component boards. Contents of the different boards The Front board contains: 1- R ESET BUTTON 2- D WITCHES 3- R OTARY DDRESS WITCH The Middle board contains: 4- I NTERNAL OLUME ETTING POT The reset button provides a hardware reset to the processor. -
Page 13: Connections
Connections (RJ-12, CAT-5, and local power) Connections Figure 6. Connections board (back board in figure 3) of the WKP-1. The numbered descriptions correlate with the numbers in the figure. Note: If you are providing your WKP-1 keypanel with remote power use the WKP-1BOP (see figure 8, page 17). - Page 14 Figure 7. RJ-12 Intercom cable wiring diagram Figure 8. CAT-5 (RJ-45) Intercom cable wiring diagram. Table 1. GPI RelayTerminal Pin Assignments WKP-1 Digital Matrix Intercom System Industrial Keypanel...
-
Page 15: Keypanel Setup
Basic Talk or Listen Key Operation: The Push to Talk button activates talk (if assigned). Listen cannot be activated from the WKP-1. The user can only listen when a different keypanel is talking to it. NOTE: The following paragraphs describe special types of key assignments called special functions. These types of key assignments can only be set up using the AZedit software. -
Page 16: Incoming Calls
Note: The 45 second time out does not mean that after 45 seconds the user cannot continue talking with the incoming caller if the Push To Talk key is still pressed. It means that after 45 seconds if either the incoming caller or the WKP-1 disconnects normal Talk key assignments are restored. Operation With the TIF-2000 Telephone Interface You can use the keypanel to answer incoming telephone calls that have been received by the TIF-2000. - Page 17 Table 2. Final Assembly, WKP-1. The Item No. listed corresponds with the numbers in Figure 7, page16. WKP-1 Digital Matrix Intercom System Industrial Keypanel c t i , f f . I " c i l...
- Page 18 Figure 9. WKP-1 Final Assembly, see Table 2 , for descriptions of corresponding numbers in this drawing. WKP-1 Digital Matrix Intercom System Industrial Keypanel...
- Page 19 Figure 10. WKP-1 Breakout Panel (WKP-1 BOP) and system diagram. WKP-1 Digital Matrix Intercom System Industrial Keypanel...
