Summary of Contents for Kramer 602T
- Page 1 KR AMER ELECTRON ICS LT D. USER MANUAL MODELS: 602T Two-fiber Detachable Optical DVI Transmitter 602R Two-fiber Detachable Optical DVI Receiver P/N: 2900-000646 Rev 2...
-
Page 3: Table Of Contents
Figure 1: 602 Two-fiber Detachable Optical DVI Transmitter and Receiver Figure 2: The Auto EDID Button on the 602T Figure 3: Connecting the Fiber Optic Cables Figure 4: Connecting the 602T/602R Two-fiber Detachable Optical DVI Transmitter/Receiver 602T, 602R – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Do not secure the cables in tight bundles or roll the slack into tight coils • Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer 602T, 602R away from moisture, excessive sunlight and dust Caution: No operator serviceable parts inside the unit Warning:... -
Page 6: Overview
Overview The 602T and 602R are a small and lightweight fiber optic transmitter and receiver pair for DVI signals. The 602T converts electrical signals to optical signals and the 602R decodes the optical signals back to electrical signals. The 602T and 602R feature: •... -
Page 7: Defining Edid

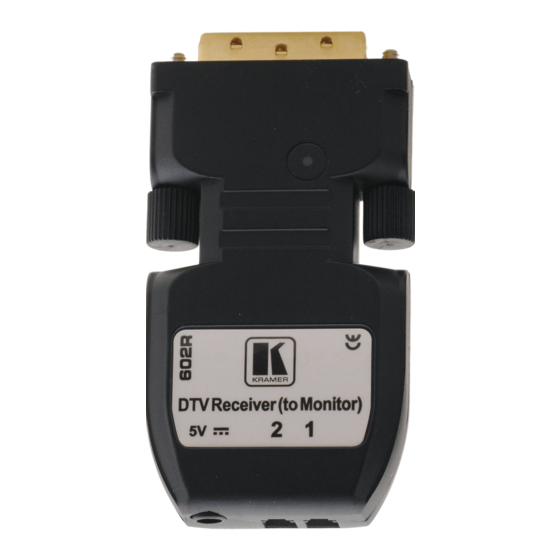

EDID is defined by a standard published by the Video Electronics Standards Association (VESA). Your Two-fiber Detachable Optical DVI Transmitter/ Receiver Figure 1 illustrates the 602T and 602R two-fiber detachable optical DVI extension system: Figure 1: 602 Two-fiber Detachable Optical DVI Transmitter and Receiver 602T, 602R - Overview... -
Page 8: Using The Two-Fiber Detachable Optical Dvi System
If your display has this resolution, you do not need to capture the EDID. You can capture the EDID of the display device on the 602T so that when the computer connects to the 602T, it reads the virtual EDID information and identify the display device. -
Page 9: Connecting The Detachable Optical Dvi Transmitter/Receiver
2. Connect the 602R to the 5V DC power adapter and connect the adapter to the mains electricity. The blue LED lights. 3. Connect the duplex LC fiber cables to the 602T and 602R modules, one cable at a time, as illustrated in Figure Single-mode and multi-mode fiber are applicable up to 500 meters. -
Page 10: Figure 3: Connecting The Fiber Optic Cables
7. If the transmitter does not power up, connect the 5V power adapter to the 602T transmitter, and connect the adapter to the mains electricity. You can use the power supplied through a DVI pin from the graphic cards instead of using the power adapter. -
Page 11: Avoiding Pitfalls During Operation
Be sure that the resolution is set for WUXGA (1920 x 1200) at 60Hz, or lower • Reset the system • Disconnect and reconnect the optical DVI cables Be sure that at all times the cables are stored and used away from liquid or dirt. 602T, 602R - Using the Two-fiber Detachable Optical DVI System... -
Page 12: Technical Specifications
Technical Specifications INPUTS: DVI IN (602T), 2 LC optical connectors (602R) OUTPUTS: 2 LC optical connectors (602T), DVI OUT (602R) RESOLUTION: Up to WUXGA @60Hz (1.65Gbps) POWER SOURCE: 5V DC, 570mA max. (602T); 570mA max. (602R) OPERATING TEMPERATURE: 0° to +50°C (32° to 122°F) STORAGE TEMPERATURE: -30°... - Page 14 " " P/N: 2900- 000646 Rev: 2...
