Page 1: User Manual
K R A ME R E LE CT R O N IC S L TD . USER MANUAL MODELS: 602T Two-fiber Detachable Optical DVI Transmitter 602R Two-fiber Detachable Optical DVI Receiver P/N: 2900-000646 Rev 3... -
Page 3: Table Of Contents
Figure 1: 602 Two-fiber Detachable Optical DVI Transmitter and Receiver Figure 2: The Auto EDID Button on the 602T Figure 3: Connecting the Fiber Optic Cables Figure 4: Connecting the 602T/602R Two-fiber Detachable Optical DVI Transmitter/Receiver 602T, 602R – Contents... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality Position your Kramer 602T, 602R away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Safety Instructions
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview

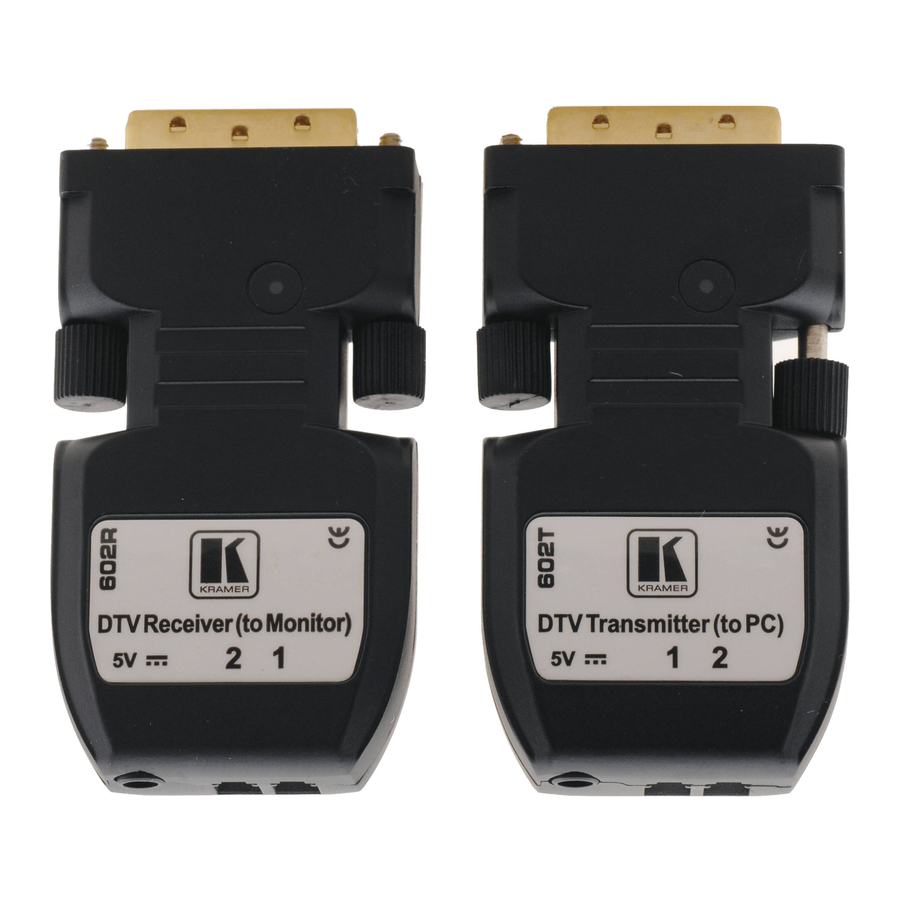

Overview The 602T and 602R are a small and lightweight fiber optic transmitter and receiver pair for DVI signals. The 602T converts electrical signals to optical signals and the 602R decodes the optical signals back to electrical signals. The 602T and 602R feature: ... -
Page 8: Powering The 602T And The 602R
Your 602T/602R pair comes with two 5V DC power adapters. The 602R must always be powered via the external power adapter. The 602T can take power from the external power adapter or from the 5V pin on the DVI card in the computer. -
Page 9: Using The Two-Fiber Detachable Optical Dvi System
If your display has this resolution, you do not need to capture the EDID. You can capture the EDID of the display device on the 602T so that when the computer connects to the 602T, it reads the virtual EDID information and identify the display device. -
Page 10: Connecting The Detachable Optical Dvi Transmitter/Receiver
2. Connect the 602R to the 5V DC power adapter and connect the adapter to the mains electricity. The blue LED lights. 3. Connect the duplex LC fiber cables to the 602T and 602R modules, one cable at a time, as illustrated in Figure Single-mode and multi-mode fiber are applicable up to 500 meters. -
Page 11: Figure 3: Connecting The Fiber Optic Cables
7. If the transmitter does not power up, connect the 5V power adapter to the 602T transmitter, and connect the adapter to the mains electricity. You can use the power supplied through a DVI pin from the graphic cards instead of using the power adapter. -
Page 12: Avoiding Pitfalls During Operation
Be sure that the resolution is set for WUXGA (1920 x 1200) at 60Hz, or lower Reset the system Disconnect and reconnect the optical DVI cables Be sure that at all times the cables are stored and used away from liquid or dirt. 602T, 602R - Using the Two-fiber Detachable Optical DVI System... -
Page 13: Technical Specifications
Technical Specifications INPUTS: DVI IN (602T), 2 LC optical connectors (602R) OUTPUTS: 2 LC optical connectors (602T), DVI OUT (602R) RESOLUTION: Up to WUXGA @60Hz (1.65Gbps) POWER SOURCE: 5V DC, 570mA max. (602T); 570mA max. (602R) OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F) STORAGE TEMPERATURE: -40°... - Page 15 This page is intentionally left blank...
- Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
