5) Mounting
1. Insert the spacers between the counter bores of the body.
2. Hold the product by L-brackets from both ends and tighten the hexagon socket head bolts. Tightening
torque is 0.61 to 0.63Nm.

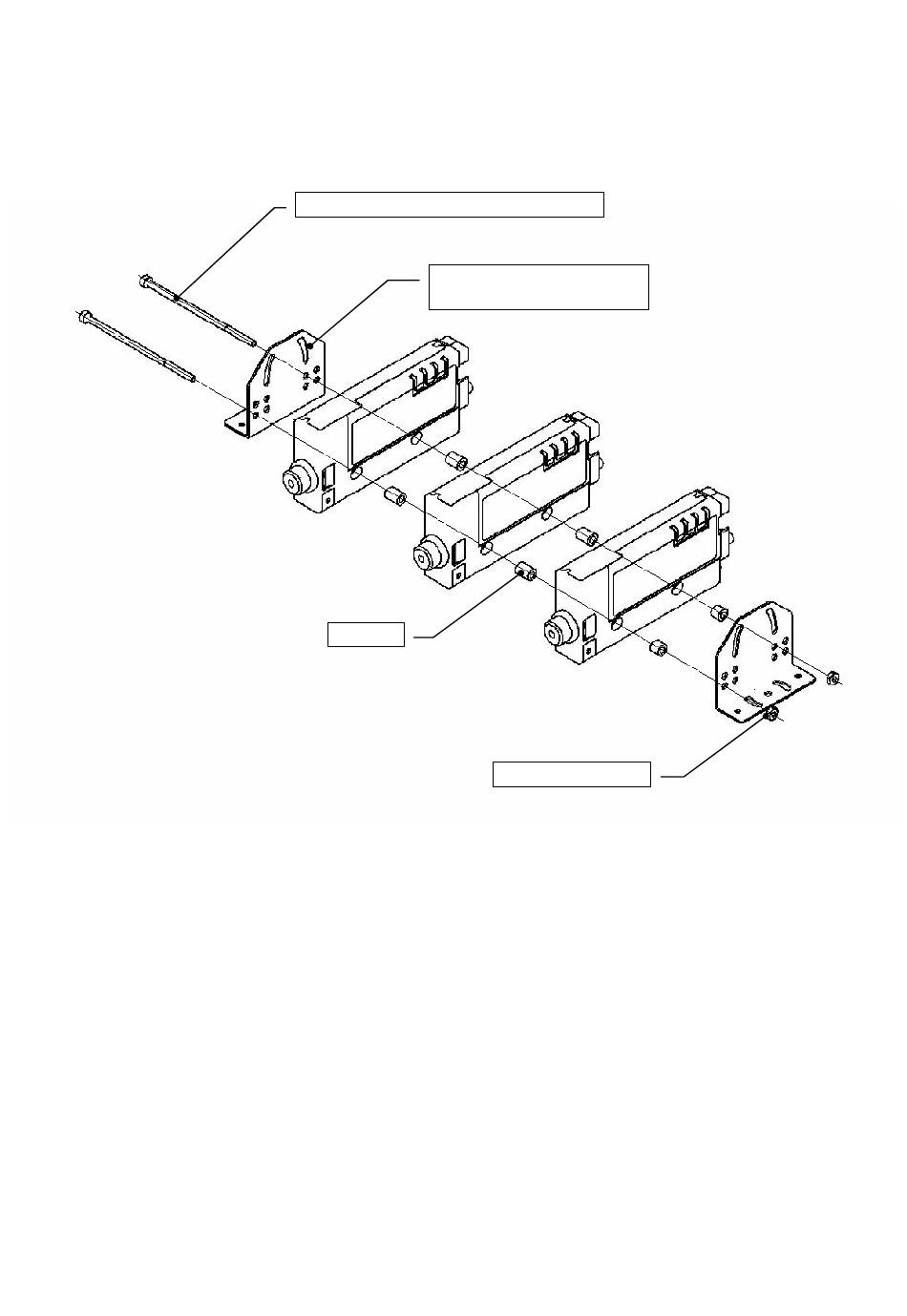

The composition of parts to connect 3 ionizers is shown below.
Fixing hexagon socket head bolt M3
L-bracket
DIN rail mounting bracket
Spacer
- 14 -
Hexagon nut M3
