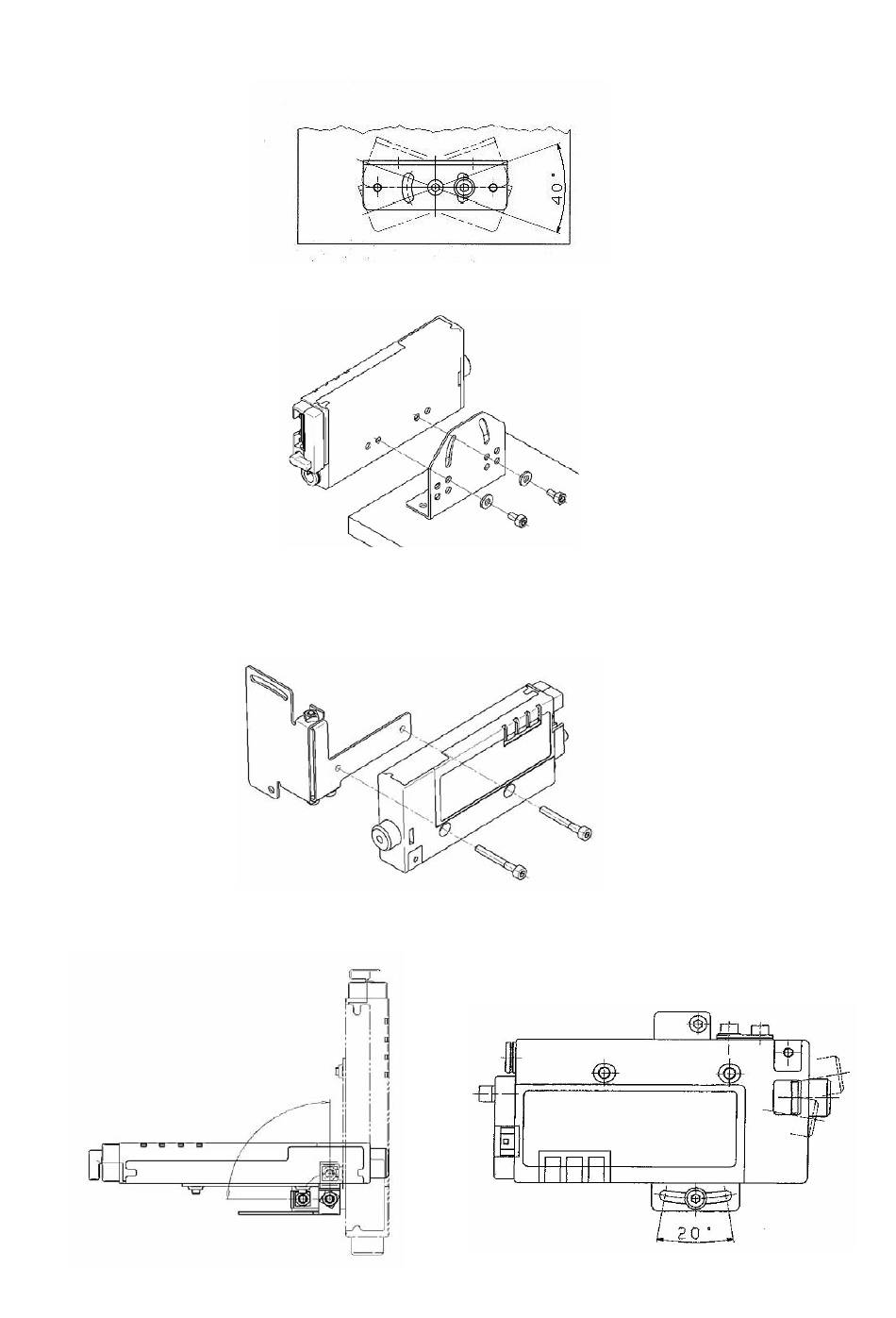

Inward mounting of L-bracket
1. Before mounting the product, mount the L-bracket where the product will be installed. The mounting
angle of the bracket can be adjusted in the following range. Hexagon socket head bolts are not included
with the product and need to be prepared separately.
2. Affix the product with the hexagon socket head bolts (M3 X 6) and washers attached to the product.
Tightening torque is 0.61 to 0.63 Nm.
3) Swing bracket
1. Mount a swing bracket to the product with the hexagon socket head bolts and washers attached to the
product. Tightening torque is 0.61 to 0.63 Nm.
2. Adjust the product to the desired mounting angle and fix it.
90°
