4-2-2 Mounting
When mounting the product, use a M3 hexagon socket head bolts. Tightening torque is 0.61 to 0.63 Nm.
1) Body mounting tap or through hole

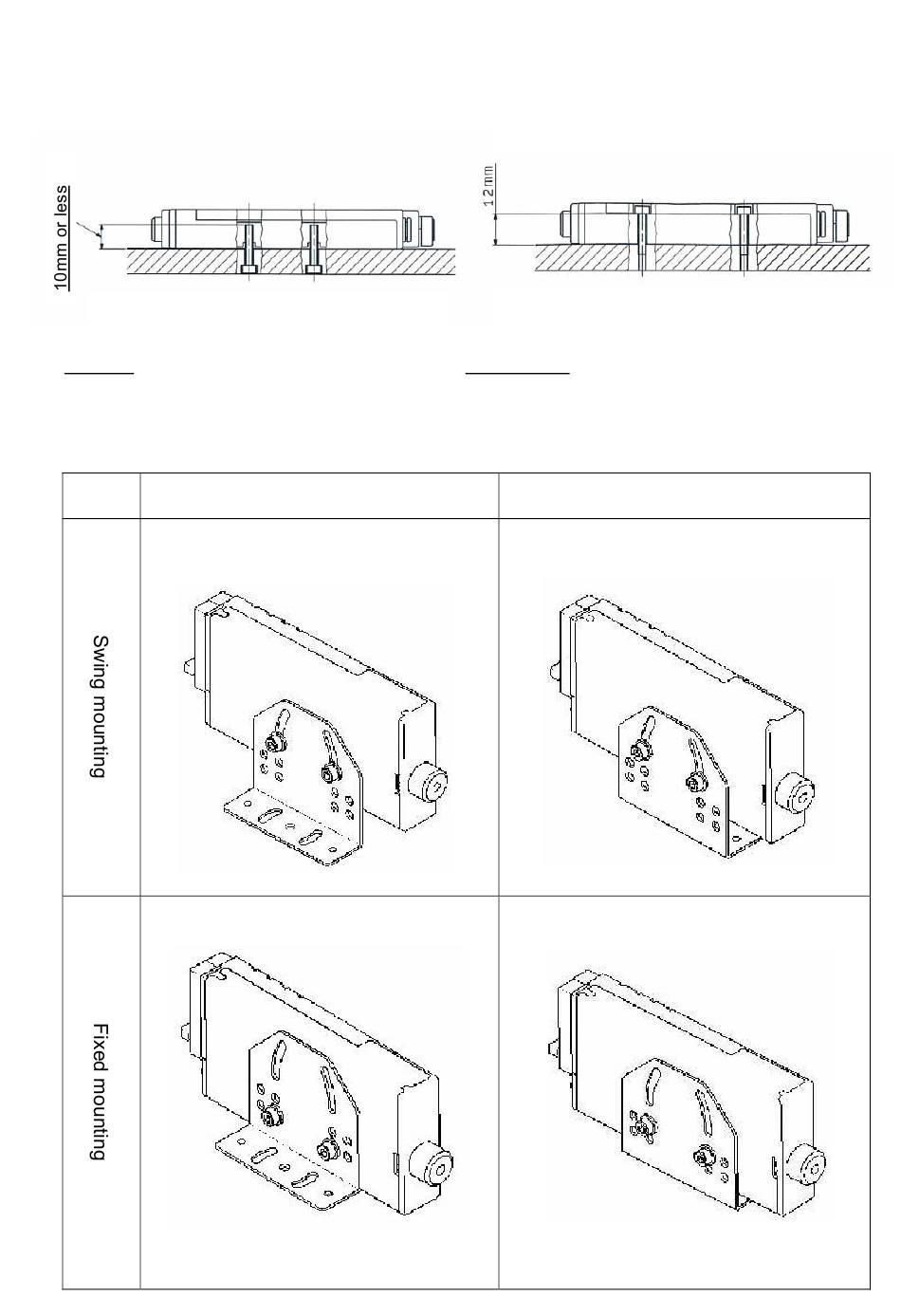

Referring to the figure below, affix the product using hexagon socket head bolts with optimum length.
Use a bolt with a max. screw-in depth of 10
mm or less
Body tap
2) L-bracket
The L-bracket can be mounted in 4 different ways as shown below.
Outward mounting
Use a bolt with a length of 12 mm or more.
Through hole
- 10 -
Inward mounting
