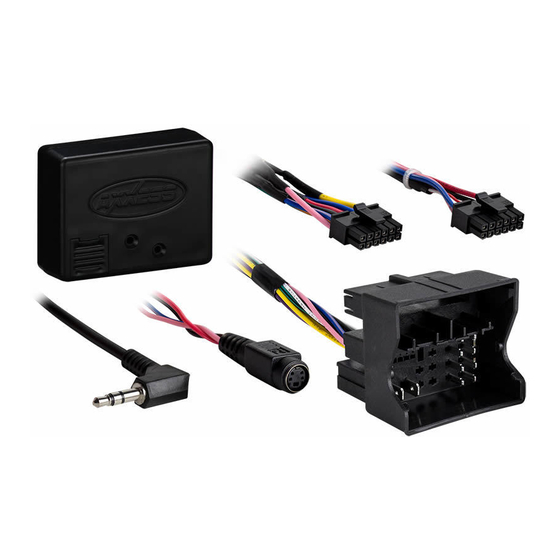

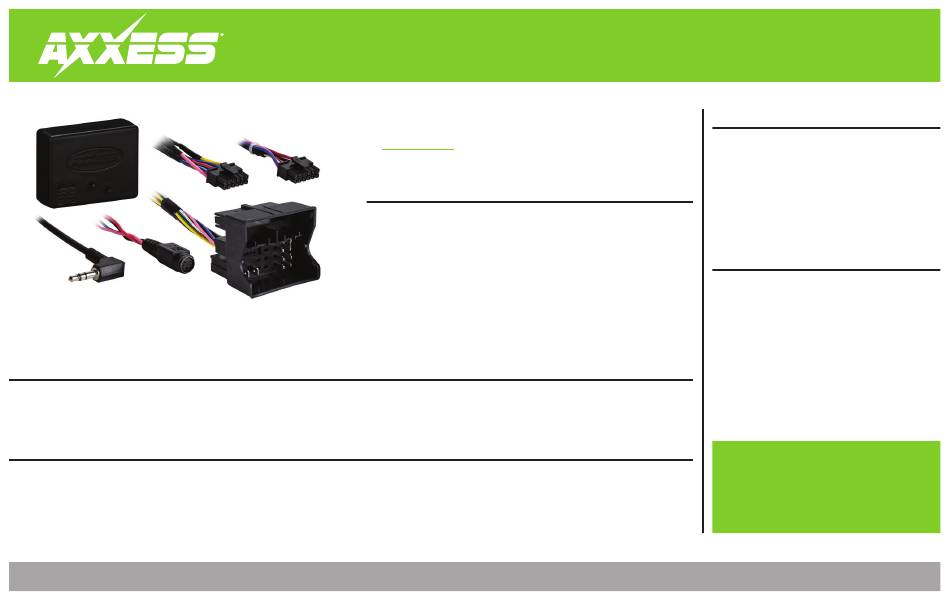

INTERFACE COMPONENTS
• XSVI-9006-NAV interface
• XSVI-9006-NAV harness
APPLICATIONS
Volkswagen
Beetle
2016-2019
Golf Series
2015-up
Jetta
2016-2018
AxxessInterfaces.com
Volkswagen
Visit
AxxessInterfaces.com
vehicle specific applications
INTERFACE FEATURES
• Provides accessory power
(12-volt 10-amp)
• Retains R.A.P. (retained
accessory power)
• Provides NAV outputs (parking
brake, reverse, speed sense)
• For use in non-amplified
systems, or when replacing an
amplified system
Jetta GLI
2016-2018
Passat
2016-up
Tiguan
2016-2017
© COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
Data Interface 2015-up
for more detailed information about the product and up-to-date
• 48-inch leads for remote tuner
location
• Pre-wired ASWC-1 harness
(ASWC-1 sold separately)
• Retains the factory backup
camera
• Retains balance and fade
• Micro-B USB updatable
XSVI-9006-NAV
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections ............................................................2
Installation .............................................................3
Programming .........................................................3
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Small flat-blade screwdriver
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
REV. 3/11/19 INSTXSVI-9006-NAV
Advertisement
Related Manuals for Axxess XSVI-9006-NAV
Summary of Contents for Axxess XSVI-9006-NAV
- Page 1 • For use in non-amplified • Retains balance and fade systems, or when replacing an • Micro-B USB updatable amplified system INTERFACE COMPONENTS • XSVI-9006-NAV interface • XSVI-9006-NAV harness APPLICATIONS Attention! Let the vehicle sit with the key Volkswagen out of the ignition for a few minutes before removing the factory radio.
- Page 2 CONNECTIONS The following (3) wires are for aftermarket multimedia/navigation radios that provide these From the XSVI-9006-NAV harness to the aftermarket radio: wires (if not required, tape them off and disregard them). • Connect the Black wire to the ground wire. • Connect the Light Green wire to the parking brake wire.
- Page 3 INSTALLATION PROGRAMMING With the key in the off position: Attention! If the interface ever loses power, the following steps will need to be performed again. Please ensure that the owner of the vehicle knows this. 1. Connect the XSVI-9006 harness into the interface, and then to the wiring harness in the vehicle.
- Page 4 Have the vehicle apart and ready to perform troubleshooting steps before contacting Metra/Axxess Tech Support. ® NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
- Page 5 • Pequeño destornillador de cabeza plana • Para utilizar en sistemas no • Actualizable por micro-B USB amplificado, o al sustituir un sistema amplificado COMPONENTES DE LA INTERFASE • Interfase XSVI-9006-NAV • Arnés XSVI-9006-NAV APLICACIONES ¡Atención! Deje que el vehículo se asiente Volkswagen con la llave fuera del encendido durante unos minutos antes de retirar la radio de fábrica.
- Page 6 CONEXIONES Los siguientes (3) cables son para radios de mercado secundario con multimedios/navegación Desde el arnés XSVI-9006-NAV al radio de mercado secundario: que incluyen estos cables (si no se requieren, encíntelos e ignórelos). • Conecte el cable negro al cable de tierra. • Conecte el cable verde claro al cable de freno de mano.
- Page 7 INSTALACIÓN PROGRAMACIÓN Con la llave en la posición de apagado: Atención! Si la interfaz pierde energía, los siguientes pasos deberán realizarse nuevamente. Asegúrese de que el propietario del vehículo sepa esto. 1. Conecte el arnés XSVI-9006 a la interfaz, y luego al arnés de cableado en el vehículo. 1.
- Page 8 Tenga el vehículo separado y listo para realizar los pasos de solución de problemas antes de ponerse en contacto con el soporte técnico de Metra / Axxess. EL CONOCIMIENTO ES PODER Mejore sus habilidades de instalación y ®...
