Axxess XSVI-2004 Installation Instructions

Chevrolet corvette data interface 1997-2004

Download this manual

INTERFACE COMPONENTS

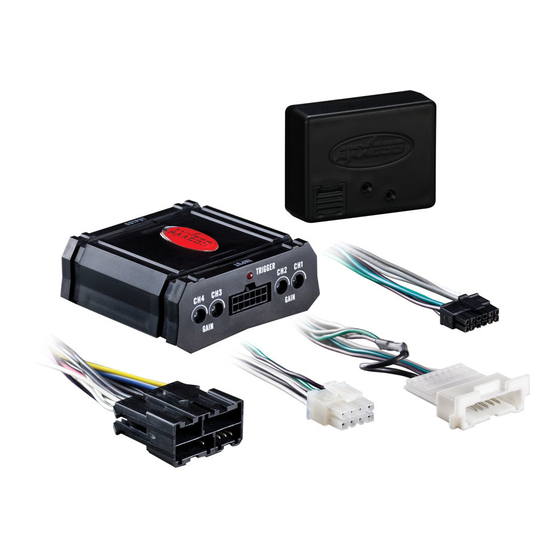

• XSVI-2004 interface • XSVI-2004 harness package* • Differential converter

* Consists of (2) harnesses

AxxessInterfaces.com

Chevrolet Corvette Data Interface

1997-2004

INTERFACE FEATURES

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (retained accessory power)

• High level speaker input

• Retains amplified door woofers

• Micro-B USB updatable

XSVI-2004

I N S T A L L A T I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Connections ............................................................2

Installation .............................................................2

Programming .........................................................3

Adjustments ...........................................................3

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Small flat-blade screwdriver

Product Info

REV. 9/24/19 INSTXSVI-2004

Page 1 • Tape • Wire cutter • Micro-B USB updatable • Zip ties • Small flat-blade screwdriver INTERFACE COMPONENTS • XSVI-2004 interface • XSVI-2004 harness package* • Differential converter * Consists of (2) harnesses Product Info AxxessInterfaces.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION...
Page 2 CONNECTIONS INSTALLATION From the XSVI-2004 harness to the aftermarket radio: Attention! There are two identical 12-pin harnesses from the XSVI-2004 harness, one with power wires, and one with speaker wires. • Connect the Black wire to the ground wire. Differential converter: XSVI-2004 interface: • Connect the Yellow wire to the battery wire.
Page 3 PROGRAMMING ADJUSTMENTS Attention! If the interface loses power for any reason, the following steps will need to be Audio Level Adjustment performed again. 1. Turn the volume of the radio up 3/4 of the way. 1. Cycle the key on and wait until the radio comes on. 2.
Page 4 XSVI-2004 I N S T A L L A T I O N I N S T R U C T I O N S Having difficulties? We’re here to help. Contact our Tech Support line at: 386-257-1187 Or via email at: techsupport@metra-autosound.com...
