Axxess AXAC-FD1 Installation Instructions Manual

Ford camera interface with pre-wired harness 2011-up
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

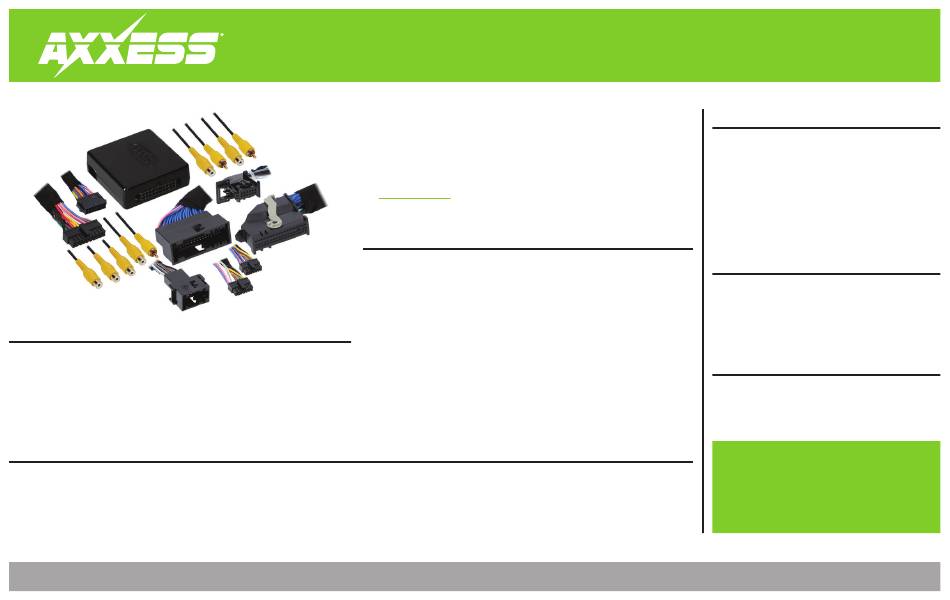

INTERFACE COMPONENTS
• AXAC-FD1 interface
• AXAC-FD1 interface harness
• AXAC-FD1 vehicle harness (qty. 2)
• 12-pin T-harness
• 54-pin T-harness
APPLICATIONS
Ford
Edge
2011-Up
F-150
2013-Up
F-250/350/450/550
2017-Up
AxxessInterfaces.com
Ford† Camera Interface With Pre-Wired Harness
2011-Up
†
With either a 4.2-inch, 6.5-inch, or 8-inch display screen
Visit
AxxessInterfaces.com
vehicle specific applications
INTERFACE FEATURES
• (4) Camera inputs *
• Reverse signal trigger generated via CAN bus communication of the vehicle
• Turn signal trigger generated via CAN bus communication of the vehicle
• (4) Programmable camera control wires
• Micro-B USB updatable
* Models equipped with NAV can only use front and rear camera inputs
Note: AXAC-FDSTK (sold separately) required for 2014-Up models
with a 4.2-inch display screen.
Focus
2012-2019
Fusion
2013-Up
Mustang
2015-Up
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
for more detailed information about the product and up-to-date
Transit
2014-2019
Transit Connect
2015-2018
Ranger
2019-Up
AXAC-FD1
I N S TA L L AT I O N I N S T R U C T I O N S

TABLE OF CONTENTS

Introduction............................................................2
Configuration ..................................................... 2-4
Connections ............................................................5
Installation .............................................................6
Programming .........................................................6
REQUIRED ITEMS (sold separately)
Update Cable: AXUSB-MCBL
Supplemental Harness ‡: AX-ADDCAM-FDSTK
‡ 2014-Up models with 4.2-inch display screen only
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink
• Tape • Wire cutter • Zip ties
CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
REV. 3/31/20 INSTAXAC-FD1

Advertisement

loading

Related Manuals for Axxess AXAC-FD1

Summary of Contents for Axxess AXAC-FD1

  • Page 1: Table Of Contents

    * Models equipped with NAV can only use front and rear camera inputs • AXAC-FD1 interface harness • Crimping tool and connectors, or solder gun, • AXAC-FD1 vehicle harness (qty. 2) Note: AXAC-FDSTK (sold separately) required for 2014-Up models solder, and heat shrink •...

  • Page 2: Introduction

    • Connect the AXUSB-MCBL update cable (sold separately) between the interface and the computer. The cable will connect into the micro-B USB port in the interface. • Open the Axxess Updater and wait until the word Ready is listed in the bottom left of the screen. • Select Add-Cam Configuration.
  • Page 3 CONFIGURATION (CONT.) • Select the vehicle in the drop down list. A tab labeled Configuration will appear after the † • Under Configuration, configure the (4) video trigger inputs to the desired settings. vehicle has been selected. • Once all selections have been configured, press Write Configuration to save the settings. •...
  • Page 4 CONFIGURATION (CONT.) Video trigger legend Video trigger description • Disable (will turn off the input) • Control 2 (negative trigger activation) • Reverse camera: Dedicated by default to Video Trigger 1. Will activate the backup camera while the vehicle is in reverse. •...

  • Page 5: Connections

    The (optional) analog control wires can be used with either a negative or positive trigger, depending on how they are configured in the Axxess Updater. These wires will only be used for manual control of • Connect the RCA jack from the AXAC-FD1 vehicle harness labeled “Camera output”, to the the camera(s).

  • Page 6: Installation

    Note: If the LED doesn’t come on within a few seconds, yet blinks instead, turn the key to the 1. Remove the harness from the factory radio display, then install the AXAC-FD1 vehicle harness off position, disconnect the interface, check all connections, reconnect the interface, and then in between.
  • Page 7 REV. 3/31/2020 INSTAXAC-FD1...
  • Page 8 AXAC-FD1 I N S TA L L AT I O N I N S T R U C T I O N S IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 386-257-1187. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
