Operation (cont'd)
6. Reinstall the battery and depress the tool trigger
to press the fitting. Continue to depress the trigger
until the relief valve actuates and the drive rollers
automatically retract.
Notes:
If the drive rollers do not automatically retract, the
press is incomplete.
The pressing cycle can be interrupted at any
moment by releasing the trigger.
It is normal for the battery load display to light at
both the beginning and near the end of the pressing
cycle.
7. Release the trigger until the drive rollers retract
completely.
8. Compress the jaw ends together to open the jaws
and remove the jaws from the pressed fitting.
Notes:
The pressing jaws must close completely to ensure
a leak-free connection. Always check that jaws
close completely during a pressing cycle and no
foreign objects are between the pressing jaws and
mechanism.
The pressing cycle can be interrupted at any
moment by releasing the trigger.
If it is necessary to remove the jaws before a press
cycle is complete, push the retract button. Pushing
the retract button will cause the drive rollers to
retract completely.
If the pressing cycle must be stopped before the
press is complete, and the jaws or chain have to
be removed from the fitting, the fitting should be
replaced or pressed a second time.
Greenlee / A Textron Company
Pistol Grip Battery-powered Pressing Tool
Operating Procedure for Pressing
1/2" through 2" Fittings Using Press Chain
1. Select the proper size pressing chain for the
intended application. Examine the chain for wear,
damage, dirt or copper buildup. Replace if worn or
damaged and remove any dirt or copper buildup
with a brush or soft cloth with light lubricating oil.

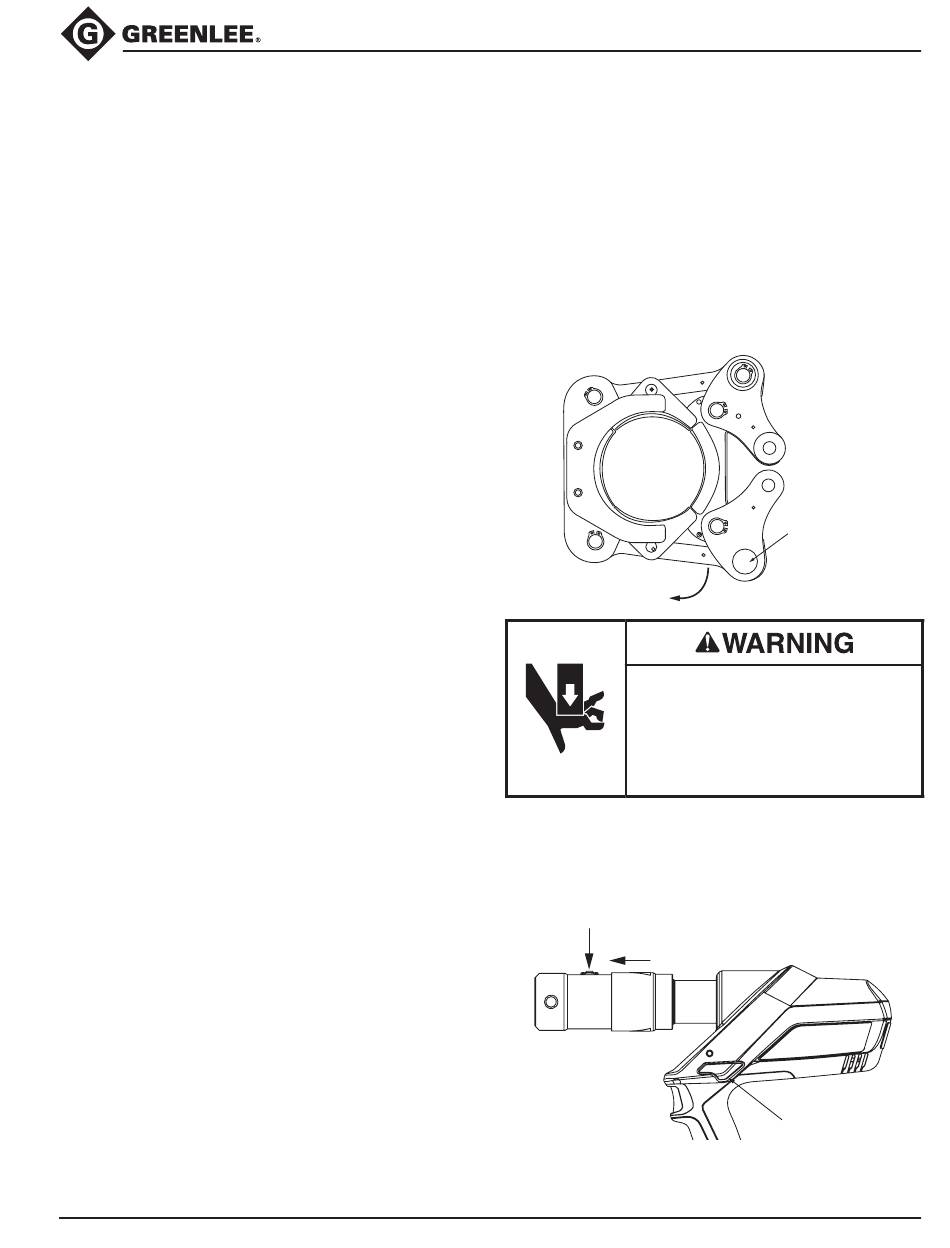

2. Disengage the release pin on the pressing chain
(see view below) and open the chain. Install the
pressing chain around the fitting to be pressed and
re-engage the pin on the pressing chain.
Swing to open
chain unit
3. Check that the red protective sleeve is in the rear
position and the chains 1/2" to 2" marking is visible
on the tool. If not, depress the button on the protec-
tive sleeve and move the sleeve to the rear position
(see view below). Release the button to secure the
protective sleeve.
4. Depress retract button to retract rollers to the back
position or complete a trigger cycle to achieve same
result.
9
4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070
Release Pin
(pull to release)
Before installing the pressing jaws,
remove battery to avoid uninten-
tional operation.
Failure to observe this warning
could result in severe injury or
property damage.
Retract Button
