Summary of Contents for AMP Lighting HydraPro AUL-8001-25-B-BZ

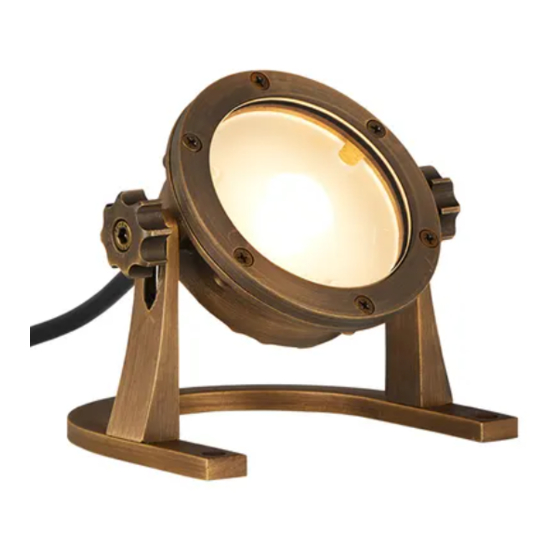

- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® HydraPro LED Underwater Light ® AUL-8001-25-B-BZ (Constant Output) Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
-
Page 2: Important Safety Instructions
INSTALLATION & MAINTENANCE GUIDE HydroPro LED Underwater Light ® AUL-8001-25-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. - Page 3 Important Safety Instructions: Read Before Installation “WARNING-RISK OF ELECTRIC SHOCK” 1. Use only in ponds and small decorative fountains where persons will immerse no more then their hands and lower arms while the product is energized. 2. DO NOT use in water intended for swimming, wading, immersion or bathing.
- Page 4 INSTALLATION & MAINTENANCE GUIDE HydroPro LED Underwater Light ® AUL-8001-25-B-BZ Package Contents A. (1) Fixture Parts (sold separately) A. (3) Mounting Screws A. (3) Anchors B. (3) Flat Washers Product Dimensions 4” 5” 5” w w w. a m p l i g h t i n g . c o m –4–...
- Page 5 INSTALLATION & MAINTENANCE GUIDE HydroPro LED Underwater Light ® AUL-8001-25-B-BZ Install Horseshoe Mount Place the horseshoe mount on the desired location and mark (3) points for the anchors from the holes on the Mounting horseshoe mount. Screw Drill proper holes on the location and Washer insert anchors into the drilled holes.
- Page 6 INSTALLATION & MAINTENANCE GUIDE HydroPro LED Underwater Light ® AUL-8001-25-B-BZ Install/Replace Glare Guard Remove Ring Loosen the screws on the Screw faceplate and remove the faceplate from the housing. Faceplate Housing Install Glare Guard Install the glare guard onto the housing and secure it with the screws Screw previously removed, tightening them in...
- Page 7 customersupport@amplighting.com • 813.978.3900 –7–...
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AUL-8001-25-B-BZ-ver1.pdf...
