- Page 1 INSTALLATION & MAINTENANCE GUIDE Low Voltage Landscape Lighting ® TorrentPro Rotatable Hardscape ® AHS-7006-X-B-BZ Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) w w w. a m p l i g h t i n g . c o m...
-
Page 2: Important Safety Instructions

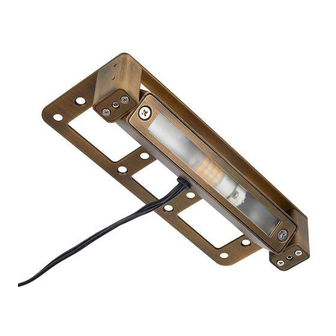

INSTALLATION & MAINTENANCE GUIDE TorrentPro Rotatable Hardscape ® AHS-7006-X-B-BZ Important Safety Instructions: Read Before Installation This luminaire is intended for installation in accordance with local codes and the National Electric Code (NEC). Failure to adhere to these codes and instructions may result in serious injury, property damage and void the warranty. - Page 3 Package Contents A. (1) Fixture Body Product Dimensions 1.5” 3.35” 8” Remove Lens Remove the lens from the luminaire by loosening the lock screws. Luminaire Lens Lock Screw customersupport@amplighting.com • 813.978.3900 –3–...
- Page 4 INSTALLATION & MAINTENANCE GUIDE TorrentPro Rotatable Hardscape ® AHS-7006-X-B-BZ Install Lamp Insert lamp with the correct wattage and type marked on the fixture label and push firmly into place. CAUTION: Do not exceed Lamp maximum wattage marked on luminaire label. Socket Install Lens Install the lens back onto the...
-
Page 5: Wire Connection
INSTALLATION & MAINTENANCE GUIDE TorrentPro Rotatable Hardscape ® AHS-7006-X-B-BZ Install Fixture to Mounting Surface Place the fixture body onto the desired location. Mark four points on the mounting surface using the holes of the mount as a guide. Wall Anchor Set the fixture aside and drill the proper holes where you placed the marks then insert the wall anchors... -
Page 6: Product Dimensions
INSTALLATION & MAINTENANCE GUIDE TorrentPro Rotatable Hardscape ® AHS-7006-X-B-BZ Adjust Luminaire Direction Set Screw Using an Allen Key, loosen the set screws on the side of the fixture to rotate the luminaire to your desired direction by hand. Once you have the desired angle, tighten down the set screws with the Allen Key. - Page 7 customersupport@amplighting.com • 813.978.3900 –7–...
- Page 8 Help Hotline: 1-813-978-3900 • Mon-Fri 9am-6pm (EST) Specifications and product details subject to change without notice. © Copyright 2019, AMP Lighting, Lutz FL USA 33549 • All rights reserved. ® customersupport@amplighting.com • 813.978.3900 w w w. a m p l i g h t i n g . c o m IS-AHS-7006-X-B-BZ-ver1.pdf...
