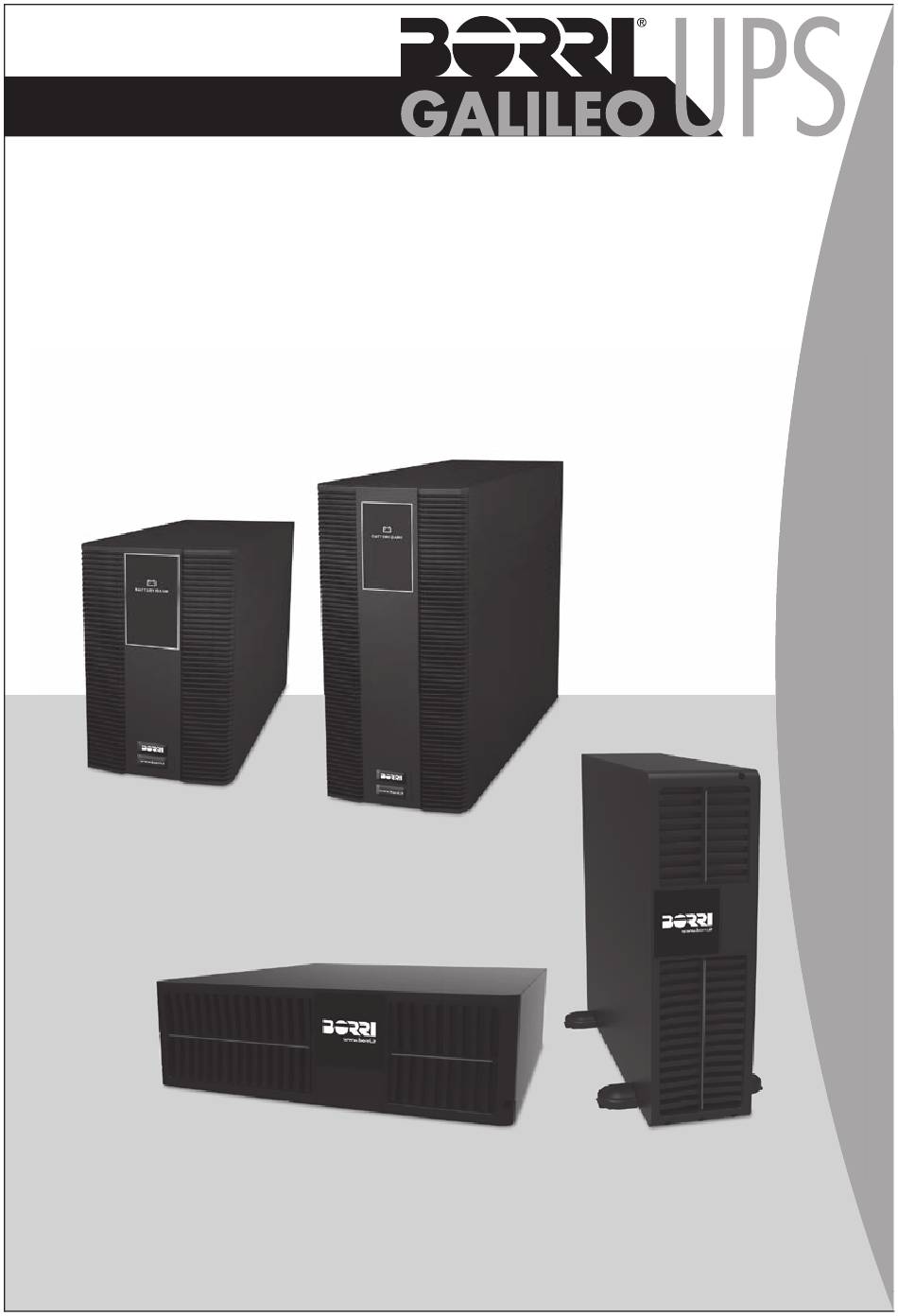

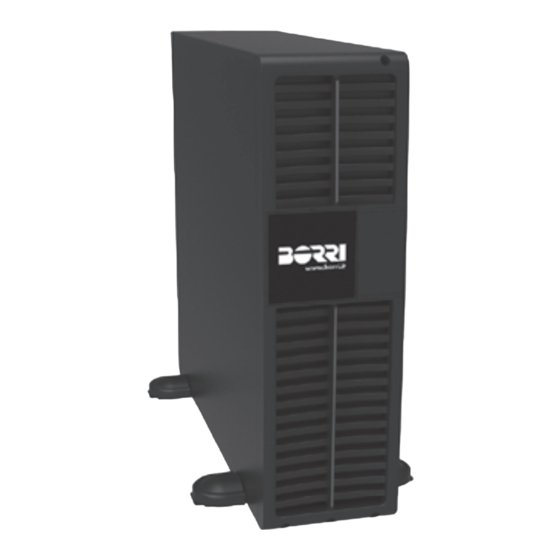

- Page 1 Battery box www.borri.it...
- Page 3 Box batteria Borri Galileo UPS Index page 1 Safety instructions 2 Introduction to the panel 3 Installation and operation 4 Battery box specification Page 1...
-
Page 4: Safety Instructions
Battery box 1 Safety instructions Save these instructions This manual contains important instructions that should be followed during installation and maintenance of the battery box and batteries. An important notice • The battery box which is supplied with a factory input plug can be safely connected to the wall receptacle by the user. • This battery box is connected to an UPS. There will be voltage at the output terminals if the UPS is turned on even if the input AC mains is not available. -
Page 5: Rear Panel Descriptions
Battery box 2 Introduction to the panel Rear panel descriptions Tower 1. DC Breaker 1. Battery over-current protection breaker. 2. To easy swappable battery, please put the position of the breaker in “O” position. In case there is 2 (or next) battery box connected with the battery box, the DC voltage from the UPS Bat.+/- will flow through without any interruption to the 2 battery box. 2. UPS battery +/- To the UPS DC connected. 3. External battery +/- To the DC connected of the 2 (or next) battery box connector +/- connected. Page 3... - Page 6 Battery box Rack 1. DC Breaker 1. Battery Over-current Protection Breaker. 2. To easy swappable battery, please put the position of the breaker in “O” position. In case there is 2 (or next) battery box connected with the battery box, the DC voltage from the UPS Bat.+/- will flow through without any interruption to the 2 Battery Box. 2. UPS battery +/- To the UPS DC terminal or the next battery box. 3. External Battery +/- To the DC terminal of the 2 (or next) battery box connector +/- connected. Page 4...
-
Page 7: Installation And Operation
Battery box 3 Installation and operation The packing condition and the external outlook of the unit must be inspected carefully before installation. Retain the packing material for future use. Unpacking Take the battery box out of the PE foam. Remove the packing materials. Note: The battery box module is approx. 12.2 ~ 50 kgs, be cautious when unpacking and lifting the unit to avoid injury. - Page 8 Battery box Installation instructions Installation supports of Rack/Tower units Tower Use with UPS Page 6...
-
Page 9: Storage Instructions
Battery box Rack Step 1 Step 2 Step 3 DCT connection cable First battery Box Second battery box Storage instructions For extended storage through moderate climate(-15 °C to +30°C / +5 °F to +86 °F), the batteries should be charged for 12 hours every 6 months by plugging the UPS power cord into the wall receptacle. Repeat this every 3 months under high temperature (+30 °C to +45 °C /+86 °F to +113 °F) environment. Page 7... - Page 10 Battery box 4 Battery box specification Battery box GALILEO T specification 1000VA 2000VA 3000VA Battery box code MUPSBATT0001 MUPSBATT0002 MUPSBATT0003 Nominal system voltage 24 VDC 48 VDC 72 VDC Battery quantity 12 Battery type 9 Ah 9 Ah 9 Ah Max UPS charge current* Standard 2.2 A 1.4 A 1 A External charger 5.2 A 4.4 A 4 A Connector color Red ( + ), Black ( - ), Green (Gnd) Dimensions W x D x H (mm) Unit 144 x 367 x 236 151 x 444 x 322...
- Page 11 Battery box Battery box GALILEO RT specification 1000VA 2000VA 3000VA Battery box code MUPSBATT0006 MUPSBATT0007 MUPSBATT0008 Nominal system voltage 24 VDC 48 VDC 72 VDC Battery quantity Battery type 9 Ah 9 Ah 9 Ah Max UPS charge current* Standard 1.5 A 1 A 1 A External charger 4.5 A 4 A 4 A Connector color Red ( + ), Black ( - ), Green (Gnd) Dimensions W x D x H (mm) Unit 440 x 650 x 88 440 x 650 x 88 440 x 650 x 88 Shipping 560 x 833 x 228 560 x 833 x 228 560 x 833 x 228...
- Page 12 Battery box Borri S.p.A. Via 8 Marzo 2 - 52011 Bibbiena (Arezzo) - Italy - phone + 39 0575 5351 - fax +39 0575 561811 - www.borri.it...
