6.8.2 Design of a separate power supply for the SCK-M-U-1500V
voltage measuring module
The voltage measuring module can also be used as a simple analog measuring transducer
outside of the Solarcheck device range. In this case, power is not supplied via the connec-
tion to the SCK-M-I-8S-20A Solarcheck current measuring module, it must be supplied sep-
arately instead. A 24 V DC power supply must be provided. The typical current consumption
is 8 mA. The maximum current consumption is 65 mA. The maximum current consumption
only occurs if the value falls significantly below the minimum input voltage.
300
250
200
150
100
50
0
0 5

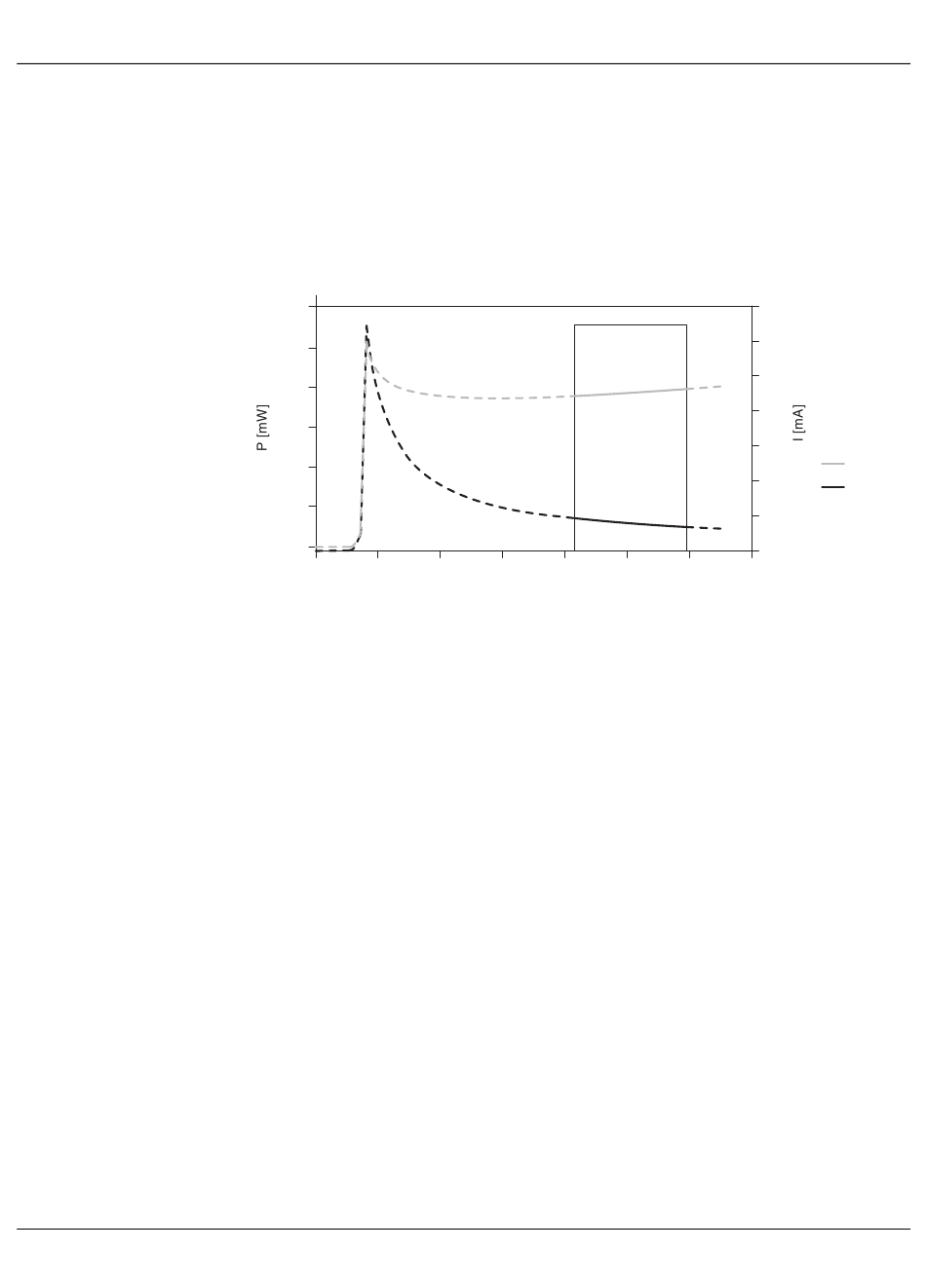

Figure 6-17 Performance characteristics of the voltage measuring module (SCK-M-U-
1500V)
U = 21,6...30 V
N
10 15 20
U [V]
70
60
50
40
30
20
10
0
25 30 35
