Intel® RAID Modules RMSP3AD160F, RMSP3CD080F and RMSP3HD080E Hardware User Guide
2U System – Air Duct RMFBU Mounting Plate

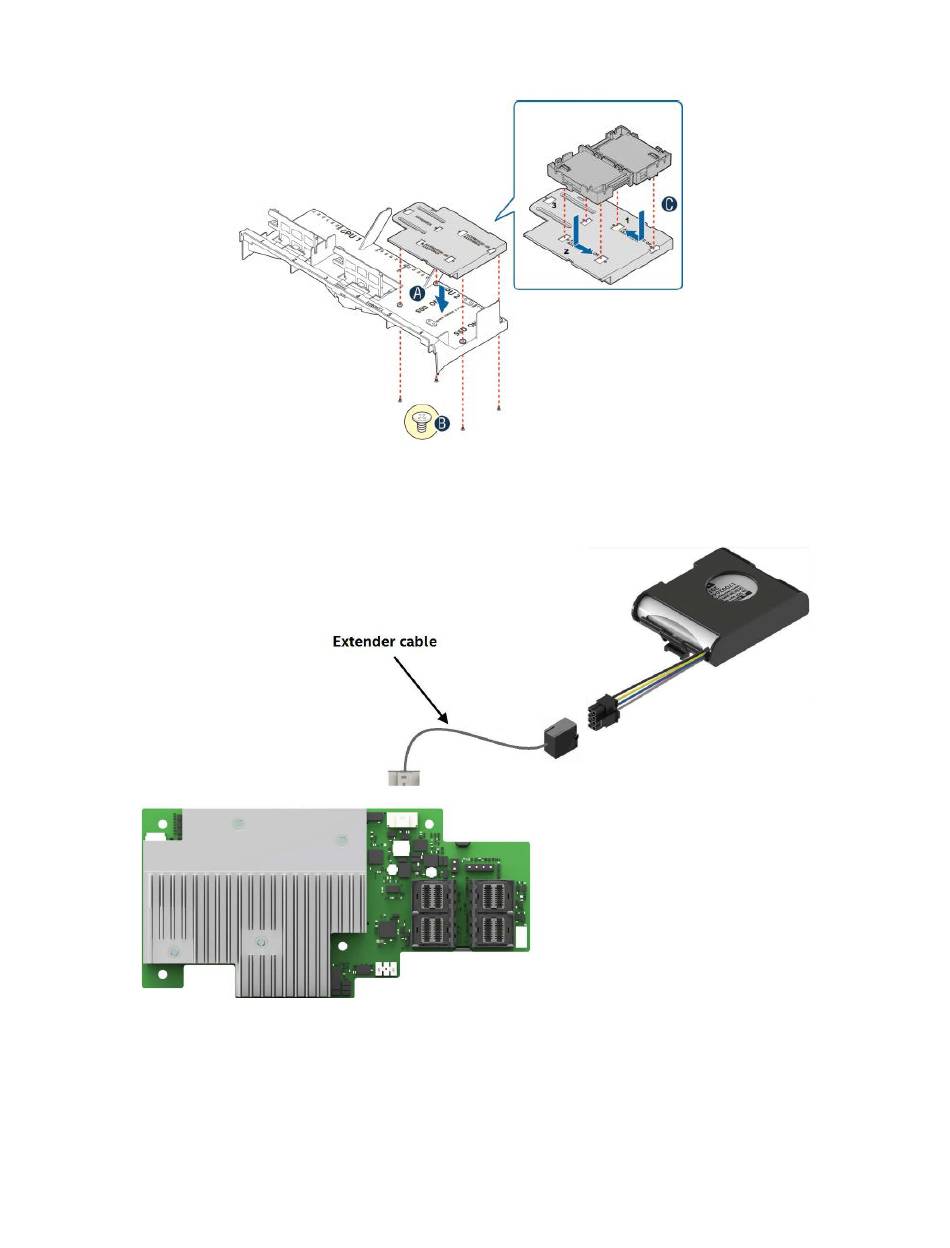

Figure 22. RMFBU assembly installation (example)
4.
Carefully route the extender cable to the Intel® RAID Module and attach the cable to the matching
connector. Use the appropriate cable (605 mm or 930 mm long) that best fits.
Figure 23. Connecting the FBU345 to the RAID module using the extender cable
42
