Intel® RAID Modules RMSP3AD160F, RMSP3CD080F and RMSP3HD080E Hardware User Guide

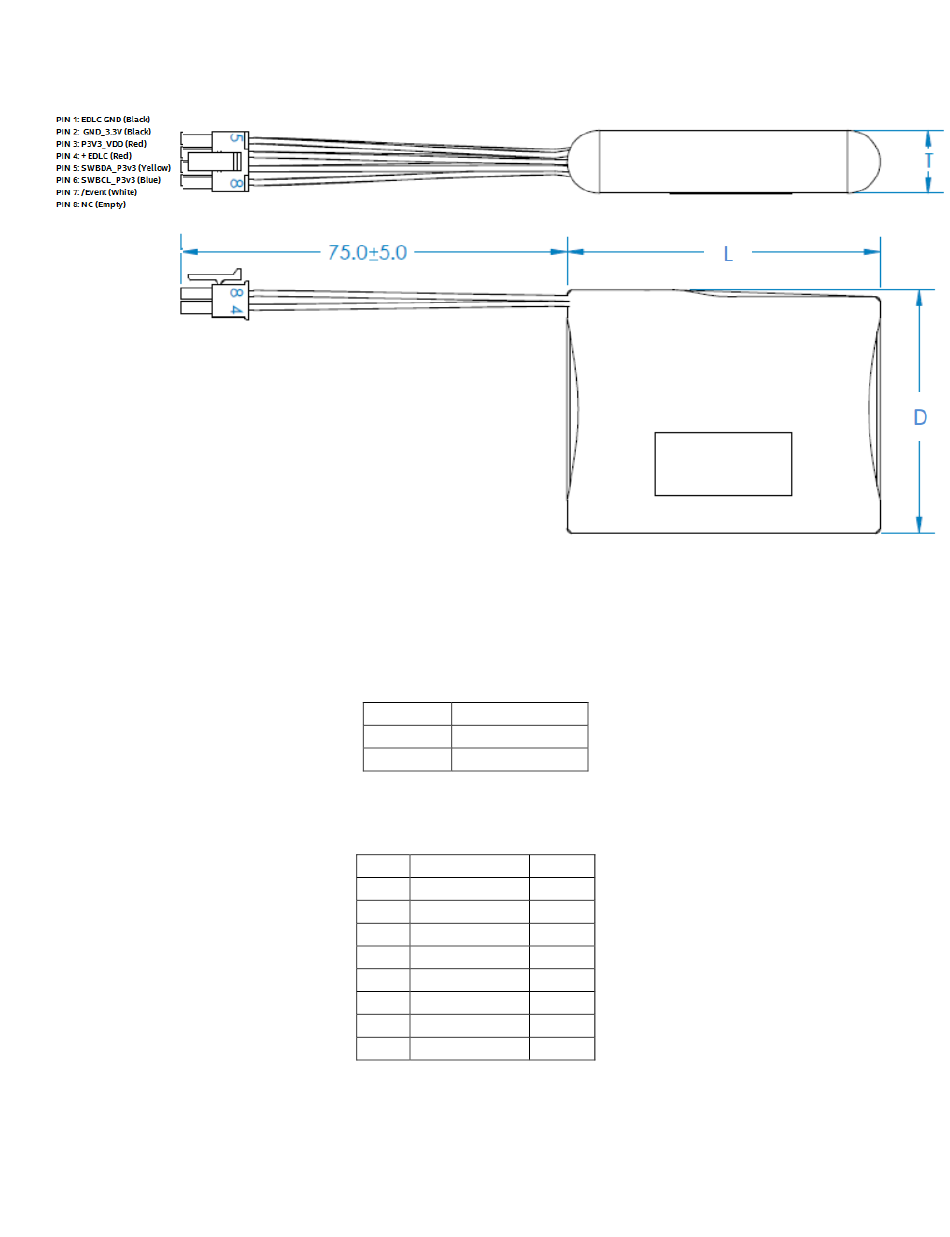

Figure 19. FBU345 layout

FBU 345 Dimensions
Width (D) 51.0 +/- 1.0 mm
Length (L) 64.0 +/- 1.0 mm
Height T 13.1 +/- 0.4 mm
Pin Description
Pin # Signal Color
1 EDLC GND Black
2 GND_ 3.3V Black
3 P3V3_VDD Red
4 +EDLC Red
5 SWBDA_P3V3 Yellow
6 SWBCL_P3V3 Blue
7 /Event White
8 NC Empty
