External Air Intake - Nordica Focolare 70 Piano Instructions For Installation, Use And Maintenance Manual

Top: Minimum opening 1000 cm
Base: Minimum opening 750 cm
In this way, the following targets are achieved:
•
a greater safety
•
an increase of the heat created by air circulation around the device.
The heat vent grating (Figura 16 pos. 6) has to be installed on the upper part of the hood at about 20 cm
from the roof. This must always be installed since its function is that of letting the heat collected within the
hood (overpressure) flow out into the room.
1- Ventilation
1) Ventilazione
2- Deflector
2)Deflettore
3-Inspection
3) Sportello
window
d'ispezione
4)
4-Low
Ventilazione
ventilation, air
bassa
entry
entrata aria

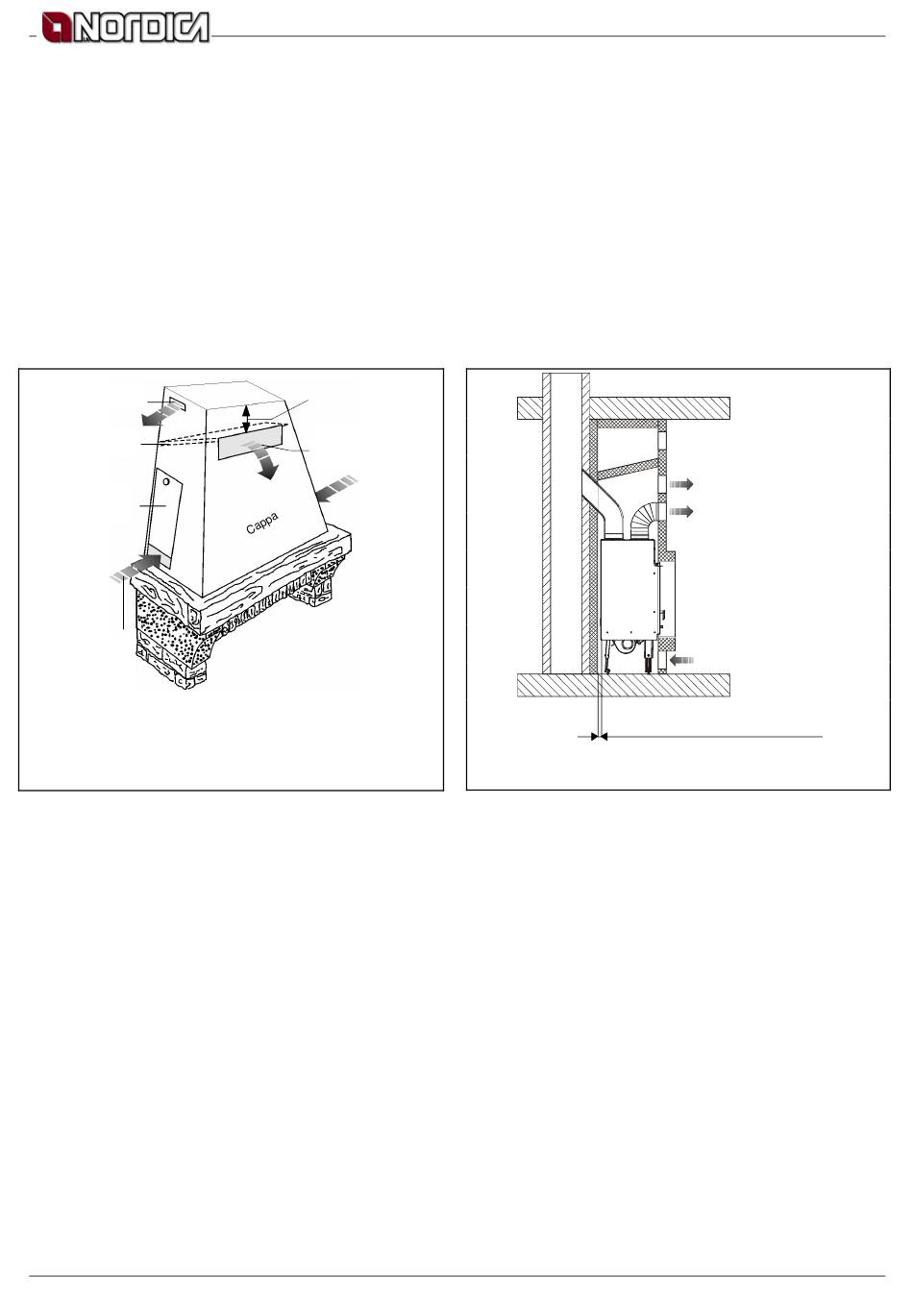

Figure 14
7.1.

EXTERNAL AIR INTAKE

For a good operation of the device, it is essential that a sufficient quantity of air for the combustion and the
re-oxygenation of the room is introduced the installation room itself. This means that, through proper
openings communicating with outside, the air for combustion must circulate also with closed doors and
windows.
•
The air intake must be positioned so that it cannot be obstructed.
•
Be communicating with the installation room of the device and be protected by grating.
•
Minimum surface must not be lower than 200 cm
•
Should the air inflow be obtained by means of openings communicating with the outside of
the adjacent rooms, it is necessary to avoid air intakes in connection with garages, kitchens,
bath-rooms, thermal units.
26
2
2
30 cm
5-High ventilation,
5) Ventilazione
warm air exit
alta uscita aria
calda
Rear and side distances Min. 10 cm
Distanza post. e lat. min. 5 cm
Figure 15
2
.
Instructions for installation, use and maintenance – EN – Rev.07
Cast iron fireplaces
2
1000 cm
2
750 cm
