(2) Inclination of
the roof
α
15°
30°
45°
60°

6. VENTILATION HOOD OR ADJACENT LOCAL

In order to distribute the heating in the environment or carry it to an adjacent room it is possible to install a
galvanized steel covering (optional) on the external cast-iron body of the same appliance.
The covering is provided with 4 outlets with a 150mm diameter to connect the heat resistant pipes. This
covering is fixed to the fireplace through special screws.
a) Perform the drilling on the walls or on the existing hood to allow the passage and the application of the
(fire-resistant) hoses with 15cm diameter and related openings.
b) Fasten the hoses using the clamps to the related collars and openings.
24
>A
H min.
α

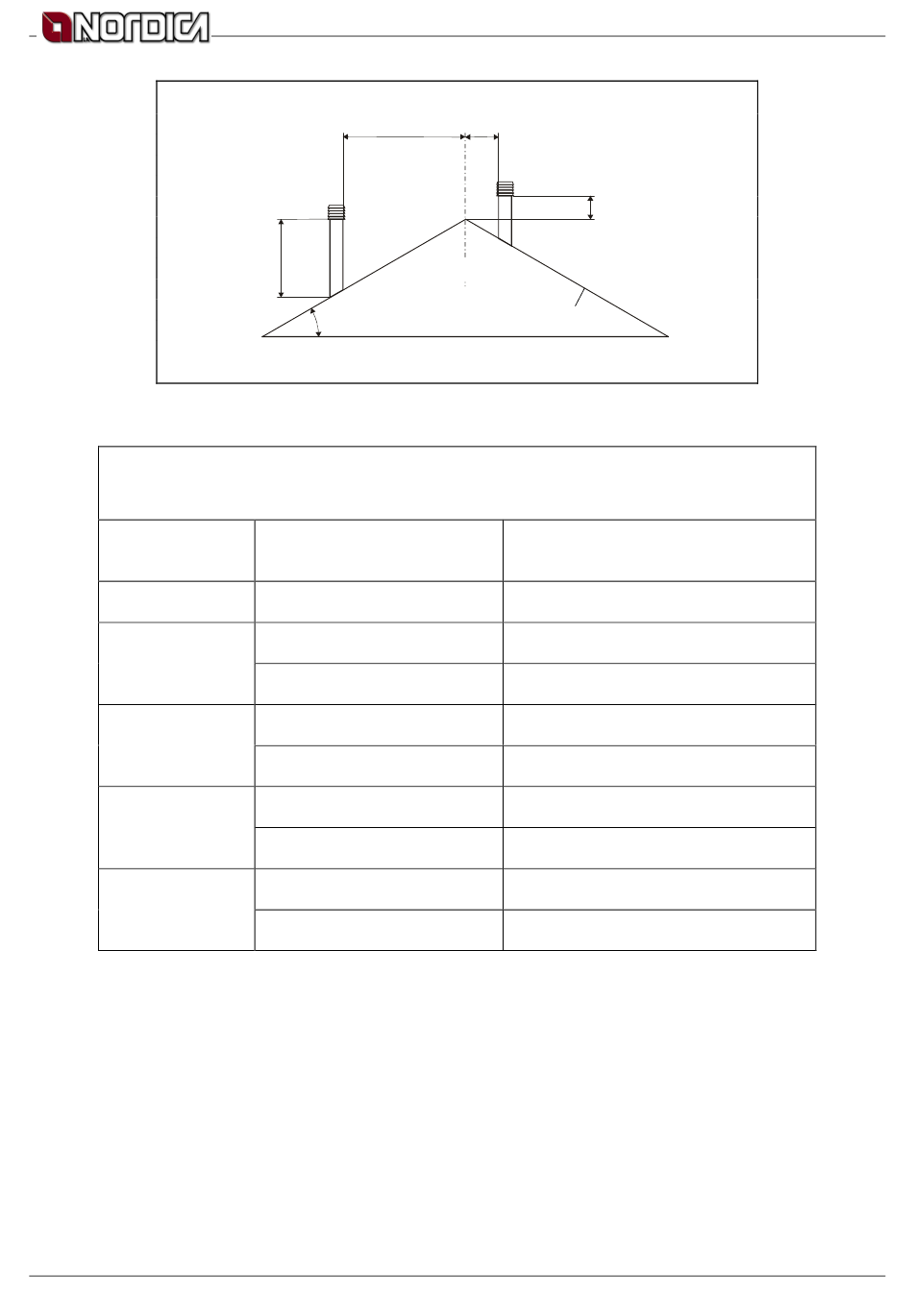

CHIMNEY CAPS - DISTANCES AND POSITIONING
(3) Distance between the
roof ridge and the stack
A (m)
< 1,85 m
> 1,85 m
< 1,50 m
> 1,50 m
< 1,30 m
> 1,30 m
< 1,20 m
> 1,20 m
> _ A
(1)Asse colmo
(2)Tetto
Figure 11
UNI 10683/98
(4) Minimum height of the stack
(measured from the outlet)
0.50 m above the roof ridge
1.00 m from the roof
0.50 m above the roof ridge
1.30 m from the roof
0.50 m above the roof ridge
2.00 m from the roof
0.50 m above the roof ridge
2.60 m from the roof
Table 1
Instructions for installation, use and maintenance – EN – Rev.07
Cast iron fireplaces
(1) Ridge axis
(2) Roof
0,5 m
H (m)
