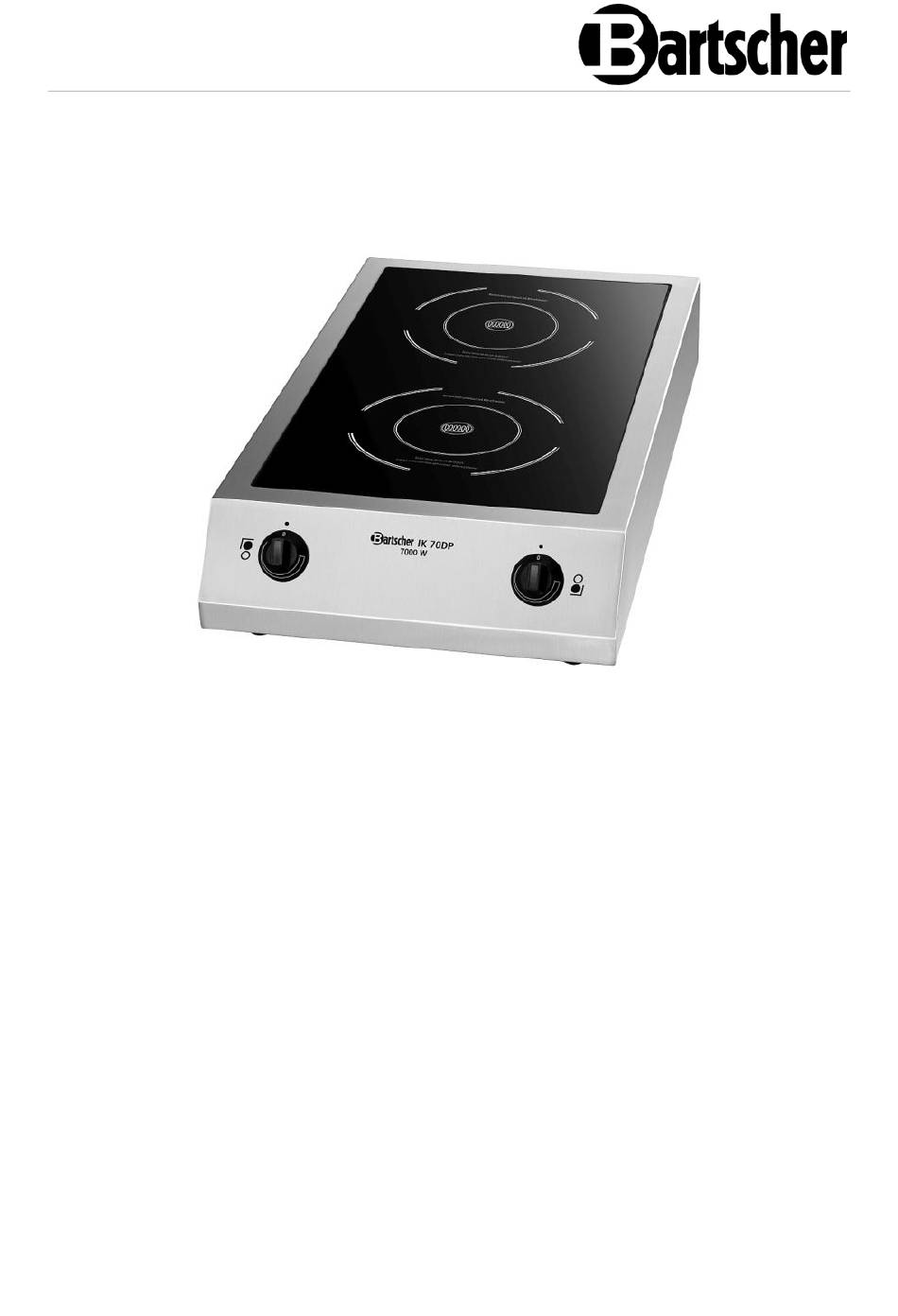

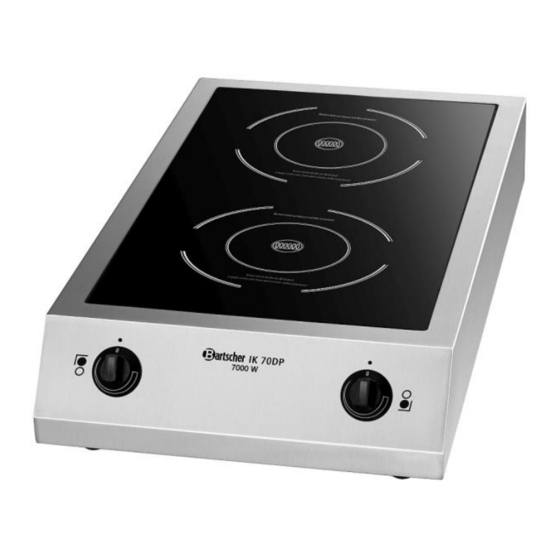

- Page 1 IK 70DP 105737...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2020-05-04...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 5 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. Flammable Materials • Never subject the appliance to contact with high temperature sources, e.g.: oven, furnace, open flame, heat generating devices, etc.
-
Page 7: Intended Use
Safety • The heating area is made of a temperature-resistant glass. In case of damage, even if it is only a small fracture, the device should be immediately disconnected from the power supply and you should contact the service company. Operating Personnel •... -
Page 8: Unintended Use
Safety As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Preparing and heating-up foods with the use of suitable cookware. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Induction cooker IK 70DP 105737 Art. No.: Material: stainless steel Heating plate material: glass Number of hobs: Heating plate dimensions (W x D), in mm: 335 x 565 Front hob diameter, in mm: Rear hob diameter, in mm: Front hob max. - Page 12 Technical Data Version / Characteristics • Equipment connection: 3 NAC • Type of hobs: induction • Arrangement of hobs: one after another • Control: output • Cookware detection • Digital display • Protection against overheating • Control: electronic, knob • Dust filter and grease filter Overheating Protection The appliance is equipped with overheating protection.
-
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance 1. Housing 2. Rear hob 3. Front hob 4. Control panel 5. Ventilation openings 6. Dust filter and grease filter (2 pcs) 7. Feet (5x) 8. Power cord 105737 11 / 22... -
Page 14: Functions Of The Appliance
Installation and operation Functions of the Appliance The induction cooker is intended for preparation and heating of foods using appropriate cookware. Owing to output switch-on functionality, the front hob may be set for 5,000 W output. Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. -
Page 15: Electrical Connection
Installation and operation – sufficiently large, and thus enabling usage of the appliance with no problems; – easily accessible; – well ventilated. • Maintain sufficient clearance from table edges. The appliance might turn over and fall down. • Do not place the appliance in the vicinity of devices or objects that are sensitive to magnetic fields (e.g. -
Page 16: Operation
Installation and operation Operation Method of operation of heating plates In induction cookers the electric voltage is applied to a conductive coil under the glass. This generates magnetic field, which being a physical effect, heats the bottom of a cookware directly. This translates to savings of time and energy, as —... - Page 17 Installation and operation Example: Induction cooker cookware, Bartscher 9-piece set of cookware Chrome-nickel steel, anti-drip edges, non-heating handles 4 pots with lids 2.0 litre, 16 cm diameter, H 10.0 cm 2.7 litre, 18 cm diameter, H 11.0 cm 5.1 litre, 24 cm diameter, H 11.5 cm 6.1 litre, 20 cm diameter, H 20.0 cm...
- Page 18 Installation and operation Control Elements / Displayed Messages 1. Rear hob digital display 2. Front hob digital display 3. Indicator of front hob set value 4. Indicator of rear hob set value 5. Rear hob adjustment knob 6. Front hob adjustment knob 16 / 22 105737...
- Page 19 Installation and operation Appliance Start-up 1. Before you start the induction cooker, set both adjustment knobs to OFF position (rotate '0' marking of the adjustment knob to the set value indicator). Output Settings 1. Turn the relevant hob adjustment knob to the required output level (setting range of 1–10).
-
Page 20: Cleaning
Cleaning • To use only the front hob with the output of 5,000 W, rotate the left adjustment knob for the rear hob by one level backwards (anti-clockwise). • Make sure that the bottom of the pan does not rub against the hob surface, although the scratched surface does not deteriorate functionality. -
Page 21: Cleaning
Possible Malfunctions Cleaning 1. Clean the appliance regularly after the end of each working day, or more frequently if needed. 2. Wipe the heating plate, control panel and housing of the appliance with a soft, damp cloth. Use mild, non-scrubbing cleaning agent if required. 3. -
Page 22: Disposal
Disposal Error code Cause Solution Overheating protection Disconnect the appliance from the has been activated and power supply (pull the mains plug the appliance switches off. out). Remove cookware from a hob. Leave the appliance to cool down, and re-start. Short-lasting power cut.
