2 Description
2.3

Equipment

Item Description
A1 Fixing points for crane transportation
B1 Brackets for wire feed units WELDON DRIVE 4 and PHOENIX DRIVE 4
C1 Hook for holding accessories, such as welding torches
D1 Intermediate tube package strain relief
E1 Exterior bores for housing the rubber feet, e.g. on the following units:
COOL 71U40/41; MULTIVOLT 70-500; TRITON 400/500; SIRION 400/500; PHOENIX
300/400/500 (chap. 4.3)
F1 Interior bores for housing the rubber feet, e.g. on the following units:
COOL 30U20; TRITON 260 (chap. 4.3)
G1 Guide castors
H1 Holding plate with brackets for fixing the units
I1 Fixed castors
J1 Carrier plate for gas cylinder
K1 Securing chain fixing point for gas cylinder
L1 Clamping plate for housing the welding machine handle
M1 Press arbor retainer
N1 Press arbor for housing the wire feed units WELDON DRIVE 4L or
PHOENIX DRIVE 4L
A1
B1
C1
A1
D1
E1
F1
G1
H1
I1

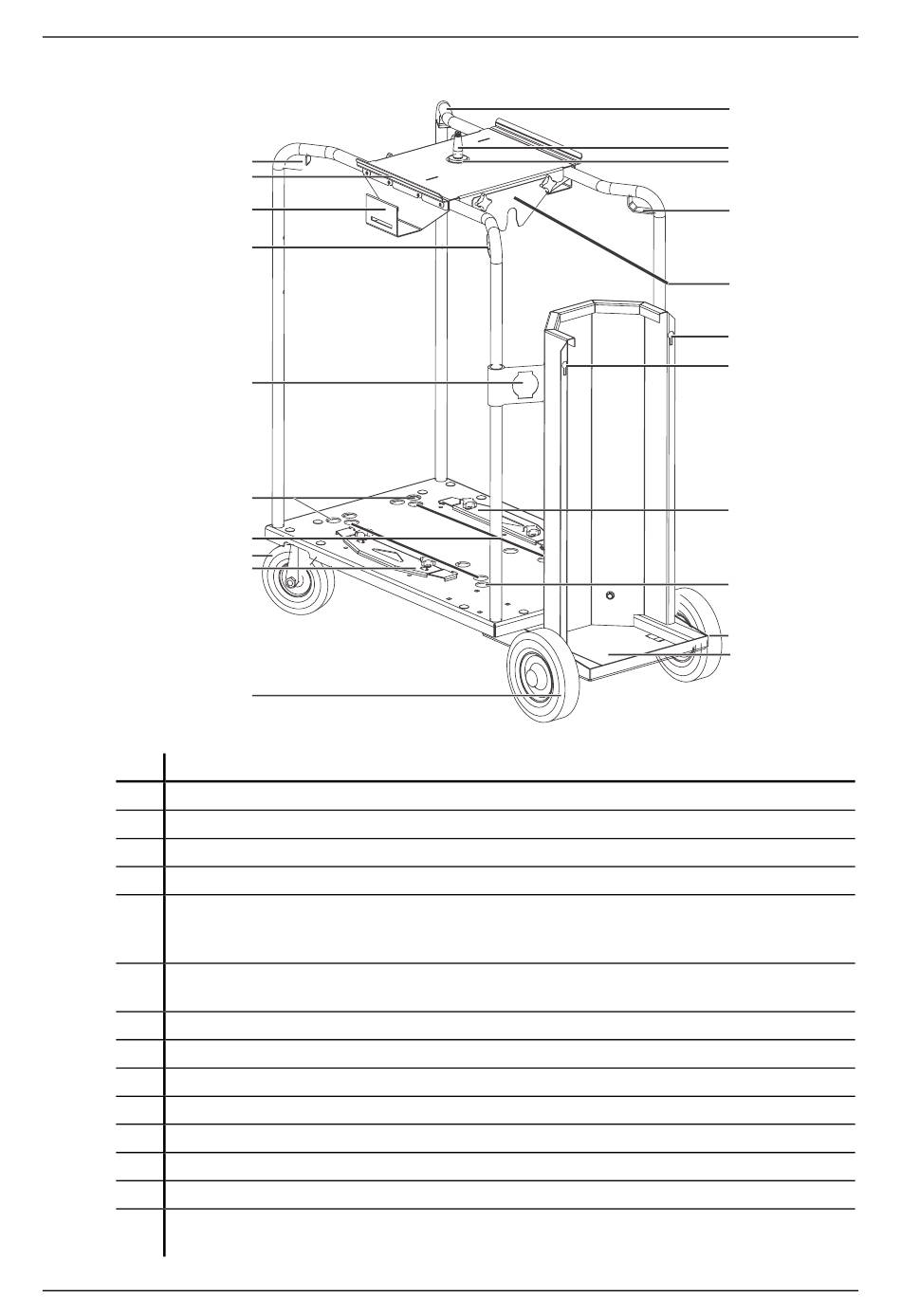

Fig. 2/3 e.g. Trolly 70-2
