4 Commissioning
4.4

Fitting wire feed units

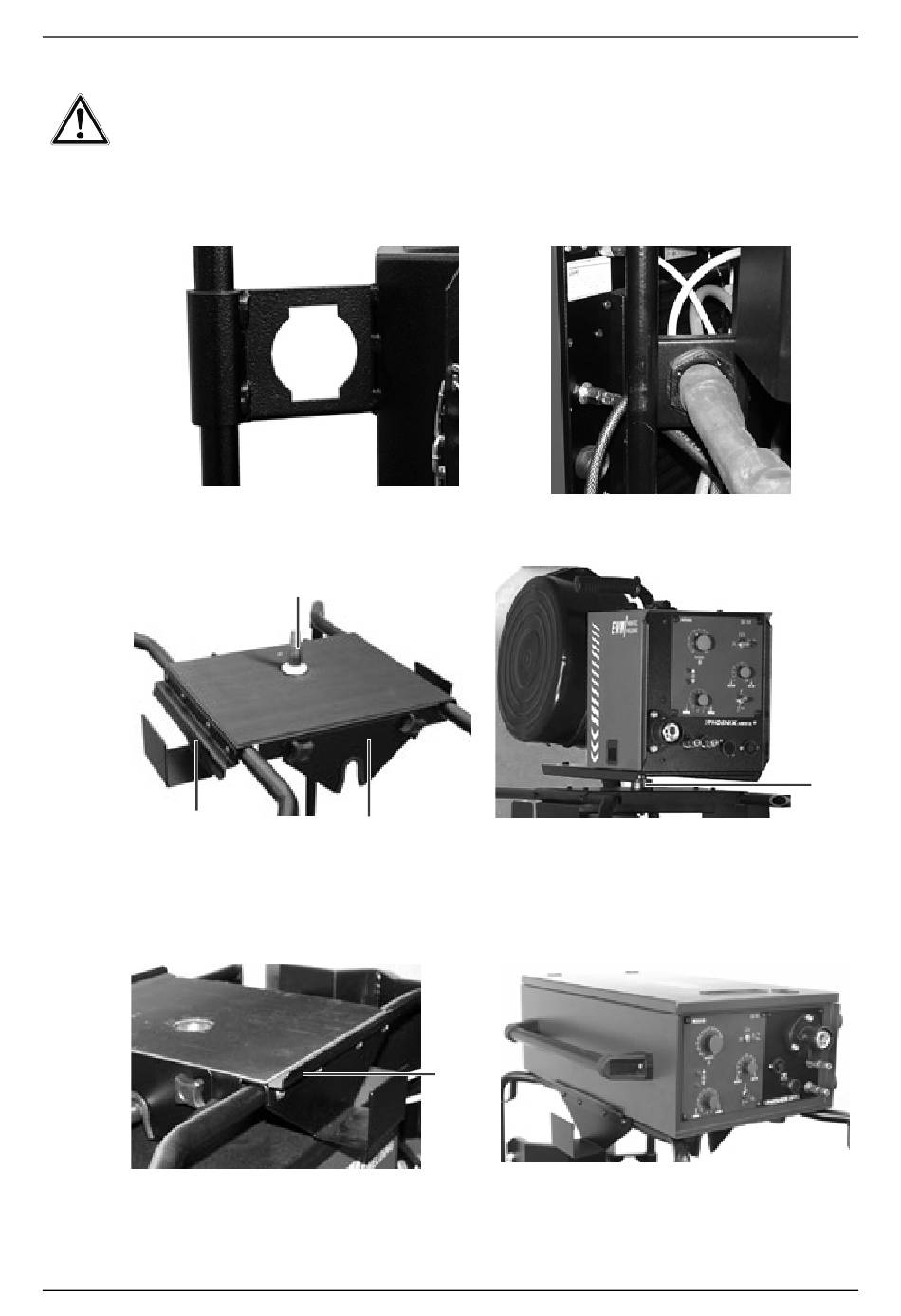

For WELDON and PHOENIX DRIVE 4L wire feed units, the angle section of the A2 holder
plate should be fitted so that it points downwards (fig. 4/7). Otherwise there is a risk of
injuries from crushing when the wire feed units are rotating.
For housing WELDON and PHOENIX DRIVE 4 wire feed units, the angle section of the A2
holder plate should be fitted so that it points upwards (fig. 4/9).
•
Insert the end of the tube package on the wire feed unit through the strain-relief (fig. 4/7) and
lock by turning to the right (fig. 4/8).
4.4.1

Fitting WELDON DRIVE 4L or PHOENIX DRIVE 4L

A2
•
The wire feed unit should be fitted with the retainer located on the base plate on the pin plug
C2 (fig. 4/7 and fig. 4/8).
4.4.2

Fitting WELDON DRIVE 4 or PHOENIX DRIVE 4

•
Position the wire feed unit on the relevant rails A2 (fig. 4/9 and fig. 4/10)
Fig. 4/5
C2
E1
Fig. 4/7
A2
Fig. 4/9
4/5
Fig. 4/6
Fig. 4/8
Fig. 4/10
C2
