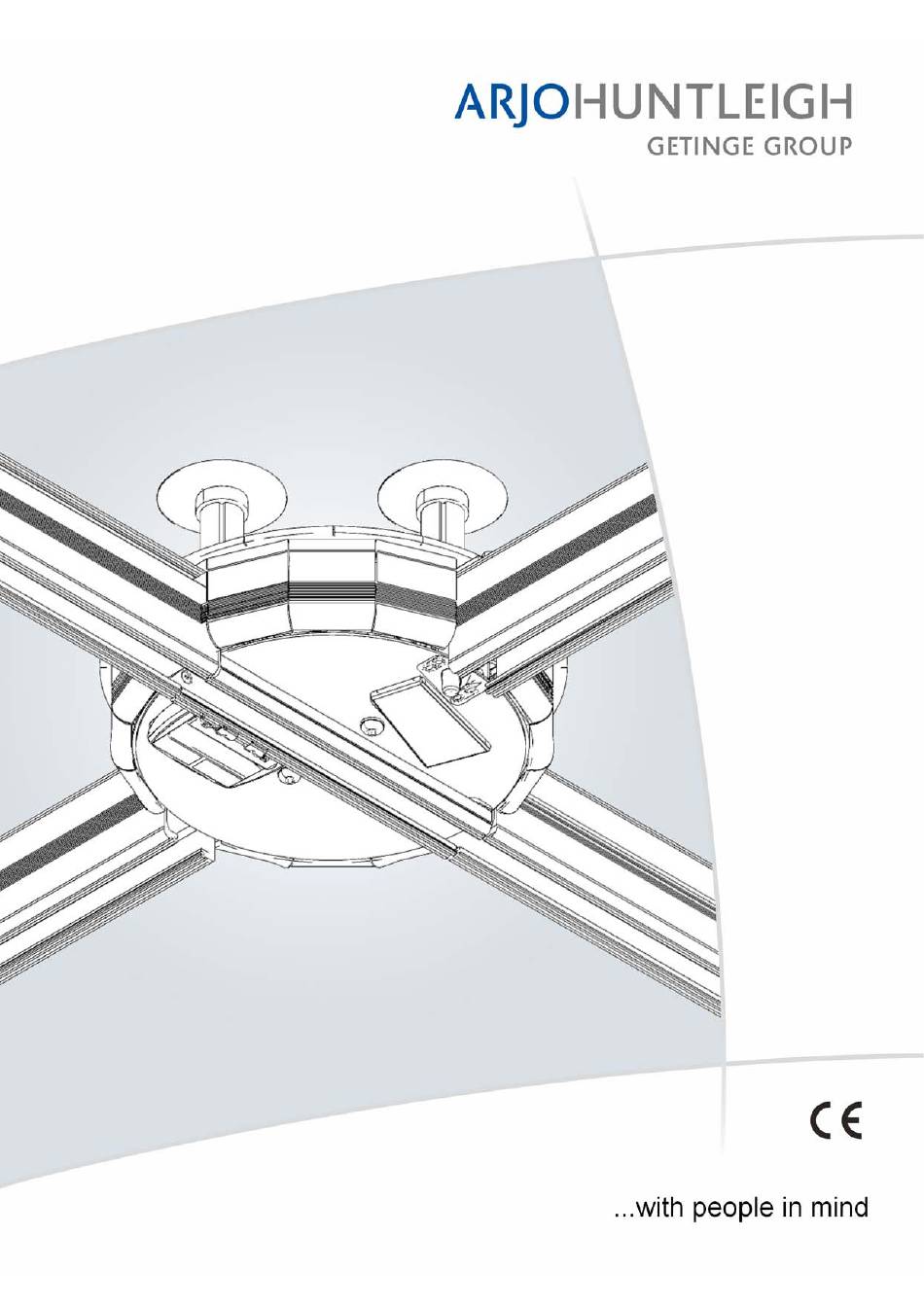

- Page 1 KWIKtrak Turntable Instructions for Use 001.11720.EN rev. 9 • June 2013...
- Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh 2013 As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied either whole or in part without the consent of...
-
Page 3: Table Of Contents
Table of Contents Table of Contents General Information ........................4 Foreword..........................4 Thank you for Buying an ArjoHuntleigh Product! .............. 4 Please Read this Manual Carefully! .................. 4 Service and Support ......................4 Manufacturer Information ....................4 Definitions Used in this Manual ..................4 Intended Use ........................ -
Page 4: General Information
This will ensure it remains safe and ArjoHuntleigh authorized staff as per the local functional. See “Care and Maintenance” section. codes. Please contact your local ArjoHuntleigh agent if you need more information, want to report an... -
Page 5: Operational Life
The turntable is designed and tested for a useful life of seven (7) years or 10,000 transfers, whichever comes first. WARNING: ArjoHuntleigh cannot ensure full safety for an accessory of which the life span has been exceeded. Wear may cause the breakage of a part and lead to a patient fall. - Page 6 General Information Symbols Key to Symbols It points out the date of manufacturer’s name and address. May also point out manufacturing date. It means that the product complies with the medical device directive 93/42/EEC. It is accompanied by the manufacturer's catalogue number. It is accompanied by the manufacturer's serial number.
-
Page 7: Safety Instructions
When disposing of any items associated with the KWIKtrak Turntable). product, contact the appropriate local authorities for information. WARNING: ArjoHuntleigh warns of possible strangulation risks related to the pull cords Homecare Environmental Considerations and advises to take necessary precautions to prevent these. -
Page 8: Product Description/Labels
Product Description/Labels Product Description/Labels Automatic KWIKtrak Turntable Manual rotation Powered rotation Fig. 2 Legend 1) Automatic KWIKtrak Turntable 4) Pivoting track 2) Quick-release 5) Activation Station 3) Covers 6) End stopper... -
Page 9: Manual Kwiktrak Turntable
Product Description/Labels Manual KWIKtrak Turntable Fig. 3 Legend 1) Manual KWIKtrak Turntable 4) Pivoting track 2) Activation arm 5) Covers 3) Activation pull cord 6) End stopper... -
Page 10: How To Use The Kwiktrak Turntable
How to Use the KWIKtrak Turntable How to Use the KWIKtrak Turntable Automatic KWIKtrak Turntable Adjusting Pull Cord’s Length If the pull cords are too long, they may be Operating the Turntable shortened as follows. 1) Make sure the lift is powered. 1) Turn the mechanism halfway so that both 2) Move the lift into the turntable and release the cords are of equal length. -
Page 11: Care And Maintenance
Annual Inspection by an Authorized Technician The KWIKtrak Turntable must be inspected by a qualified ArjoHuntleigh technician on an annual basis to ensure the proper function of its components, as well as the safety of the patients and caregivers that use the product. -
Page 12: Troubleshooting
Make sure the Quick-release knob is in “Powered Rotation” position. even if electrical feeding is • If the turntable does not work as intended after checking the previous point, immediately contact your ArjoHuntleigh agent. The turntable stops moving The turntable is in over current condition. between track and beeps. -
Page 13: Technical Specifications
The KWIKtrak Turntable Separated and recycled, according to the European Directive 2002/96/ EG (WEEE). The ArjoHuntleigh Automatic KWIKtrak Turntable meets the requirements of Electromagnetic Compatibility (EMC) as stated in clause 12.5 of Annex 1 of the Medical Devices Directive 93/42/EEC. -
Page 14: Kwiktrak Turntable Dimensions
Technical Specifications KWIKtrak Turntable Dimensions Fig. 6... -
Page 15: Electromagnetic Compliance
EMI (electromagnetic interference) from external sources. Nonetheless, some procedures can help reduce electromagnetic interferences: • Use only ArjoHuntleigh cables and spare parts to avoid increased emissions or decreased immunity which can compromise the correct functioning of the equipment. -
Page 16: Electromagnetic Immunity
Electromagnetic Compliance Electromagnetic Immunity Guidance and Manufacturer’s Declaration - Electromagnetic Immunity - For all Equipment and Systems The KWIKtrak Turntable is intended for use in electromagnetic environment specified below. The customer or the user of the KWIKtrak Turntable should assure that it is used in such an environment. Compliance Electromagnetic environment - Immunity test... - Page 17 Electromagnetic Compliance (continued) Guidance and Manufacturer’s Declaration - Electromagnetic Immunity - For Equipment and Systems that are Not Life-Supporting IEC 60601 Compliance Immunity test Electromagnetic environment - guidance test level level Portable and mobile RF communications equipment should be used no closer to any part of the KWIKtrak Turntable, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
- Page 18 Electromagnetic Compliance (continued) Recommended Separation Distance Between - Portable and Mobile RF Communications Equipment and the KWIKtrak Turntable for Equipment and Systems that are not Life-Supporting Recommended separation distances between portable and mobile RF communications equipment and the KWIKtrak Turntable. The KWIKtrak Turntable is intended for use in electromagnetic environment in which radiated RF disturbances are controlled.
- Page 19 AUSTRALIA FAR EAST POLSKA ArjoHuntleigh Pty Ltd ARJO Far East Limited ArjoHuntleigh Polska Sp. z o.o. 78, Forsyth street Unit 3A, 4/F., block B Hoi Luen ul. Ks Piotra Wawrzyniaka 2 O’Connor Industrial Centre PL 62-052 KOMORNIKI (Poznan) AU-6163 Western Australia...
- Page 20 GETINGE GROUP is a leading global provider of products and systems that contribute to quality enhancement and cost efficiency within healthcare and life sciences. We operate under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses on patient mobility and wound management solutions.
