Arjohuntleigh Enterprise 8600 Instructions For Use Manual

Enterprise 8000+; enterprise 9000+ range of acute care hospital beds
Hide thumbs

Advertisement

Table of Contents

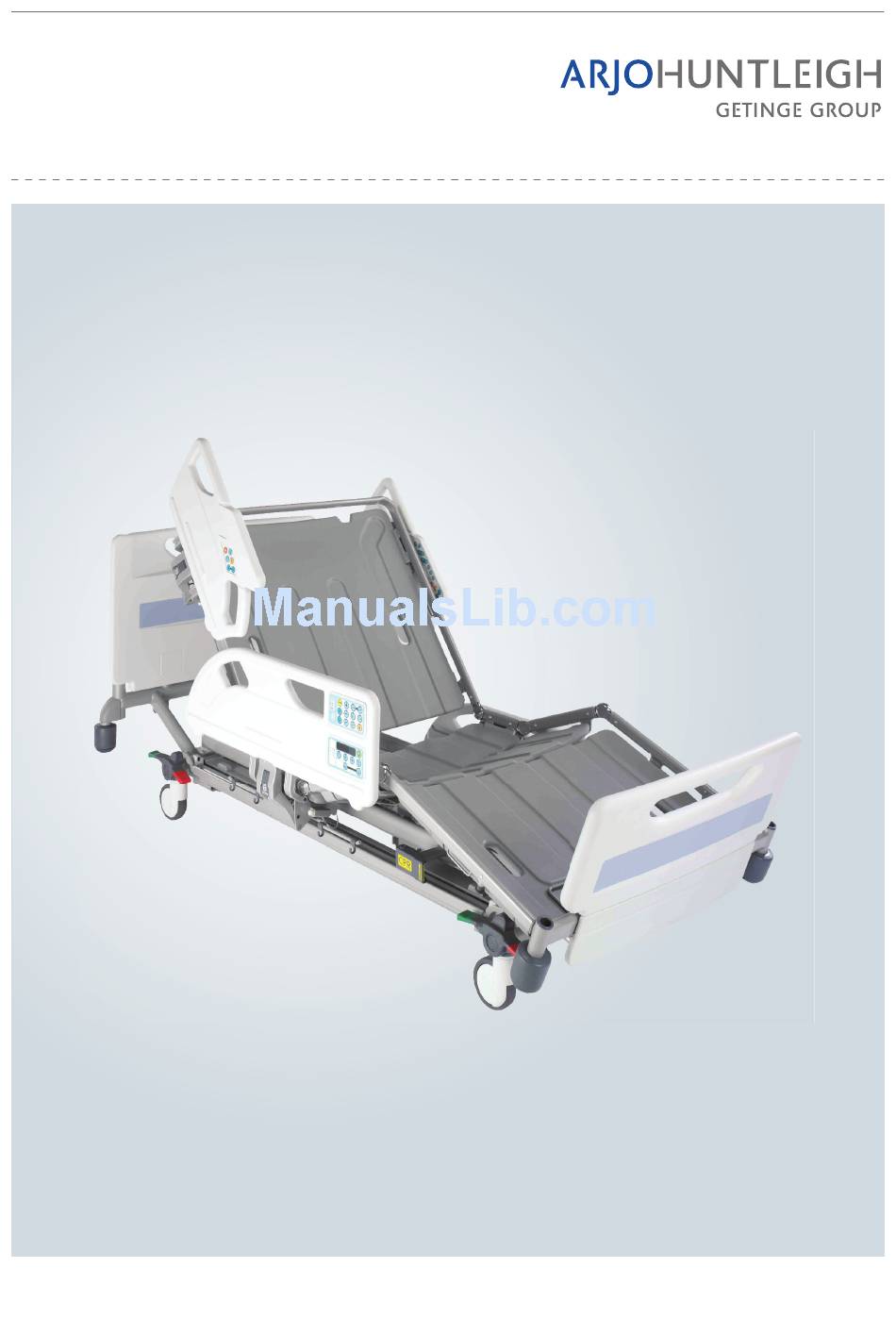

Enterprise 8000+ & 9000+

Instructions for Use

...with people in mind
746-505-AM Rev 06 • 05/2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enterprise 8600 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Arjohuntleigh Enterprise 8600

Summary of Contents for Arjohuntleigh Enterprise 8600

  • Page 1: Instructions For Use

    Enterprise 8000+ & 9000+ Instructions for Use ...with people in mind 746-505-AM Rev 06 • 05/2015...

  • Page 2: Table Of Contents

    Contents 1. Introduction ................3 2. Clinical applications............... 4 3. Installation ................5 4. Operation ................8 5. Power operation ..............23 6. Bed exit detection (Enterprise® 8000+ range) ....36 7. Patient weighing and VariZone movement detection (Enterprise® 9000+ range) ........... 38 8.
  • Page 3 Warnings, Cautions and Notes WARNINGS given in this manual identify possible hazards in procedures or conditions, which if not correctly followed, could result in death, injury or other serious adverse reactions. Cautions given in this manual identify possible hazards in procedures or conditions, which if not correctly followed, could result in equipment damage or failure.

  • Page 4: Introduction

    1. Introduction This manual contains instructions for the installation, use and maintenance of the ArjoHuntleigh Enterprise® range of acute care hospital beds. These beds have multiple functions to provide the optimum nursing position for both patient and caregiver. The features available on the various models in the Enterprise® range are...

  • Page 5: Clinical Applications

    2. Clinical applications Areas of use General medical and surgical floors, care of the elderly, ICU, coronary care and oncology. Indications The bed is appropriate for patients who pose a movement and handling risk and / or whose clinical condition requires that they be positioned with minimal physical handling.

  • Page 6: Installation

    3. Installation All models Position the bed on a flat, level surface and apply the brakes (refer to Chapter 4). 9000+ range Remove the four transport locking bolts (A) and only washers (B); there are two bolts at the head end of the bed and two at the foot end.
  • Page 7 All models Connect the power cord to a suitable outlet socket. The power cord is equipped with a plastic hook. When not in use or before moving the bed, clip the hook (C) onto the head end panel, coil up the cable and place it over the hook.
  • Page 8 Nurse call connection  Connect one end of the nurse call cable to the 37-pin socket (E), located below the head end of the bed on the patient’s right. Connect the other end of the nurse call cable (F) to the socket on the headwall panel.

  • Page 9: Operation

    • Always use a mattress of the correct size and type. A Safety range of suitable pressure redistributing mattresses is available from ArjoHuntleigh. • To reduce the risk of injury due to falls, leave the bed at minimum height when the patient is unattended.
  • Page 10 WARNING Operate the brake pedals with your feet while wearing suitable shoes. Do not operate the pedals with your hands. Brakes and The pedals have three positions as shown below: steering BRAKE: brakes are applied on all four castors. • FREE: all four castors are free to rotate and swivel.
  • Page 11 • Powered air / foam replacement mattresses will typically envelop the patient when loaded and can generally be deeper than a foam mattress without compromising safety. All ArjoHuntleigh mattress replacements will maintain sufficient clearance between patients and side rail tops to preserve the function of the side rail. Other makes of mattress replacement systems must be assessed individually prior to use to verify sufficient clearance is maintained.
  • Page 12 Side rails - To lower the side: operation Hold either side rail handle (G). Pull the release lever (H) and lower the side rail. The side rail folds down below the mattress platform. To raise the side: Hold either side rail handle (G). Pull the side rail up and away from the bed until it locks in the raised position.
  • Page 13 Linen shelf The linen shelf is used for supporting clean linen when the bed sheets are being changed. To prepare the linen shelf for use, pull it out from below the foot end panel (J). After use, push the linen shelf back under the foot end panel until it latches in the closed position.
  • Page 14 Extending the To extend the mattress platform: mattress If the bed is tilted, use the bed controls to level the platform mattress platform - refer to Chapter 5, Power Operation. Pull down the catches (K) on the underside of the mattress platform and rotate them a quarter turn to unlock the extension.
  • Page 15 Emergency Manual CPR release handles are situated on either side of CPR function the bed, below the calf section. To lower the backrest in an emergency, pull the CPR release handle (M). Alternatively, press and hold the CPR button on the Attendant Control Panel - refer to Chapter 5, Power Operation.
  • Page 16 End panels - The end panels can be easily lifted off the bed for fast removal access to the patient.  One or both end panels may be held in place with spring catches. To remove this type of panel: 1.
  • Page 17 Lifting pole Two lifting pole sockets are located at the head end of the mattress platform (P). They can also be used for other accessory approved accessories. sockets Two smaller accessory sockets (for monitor shelves, etc.) are provided at the foot end of the bed (Q). Lifting pole/accessory sockets Accessory sockets (head end)
  • Page 18 Drainage bag Drainage bag rails are located on either side of the bed, rails below the mattress platform. Drainage bag rail WARNING Do not exceed the rail’s safe working load of 11 lbs. (5kg) total weight. 746-505-AM-6...
  • Page 19 Patient Patient restraints can be attached to either side of the restraints mattress platform frame. Attachment points are provided on the backrest, thigh and calf sections. Patient restraint attachment points (circled) Restraint straps should be attached as shown below to prevent them sliding along the mattress platform frame.
  • Page 20 The decision to use patient restraints must be made by the clinician overseeing the care of the individual patient following a full risk assessment. Patient restraints are not intended as substitutes for good nursing practice. ArjoHuntleigh makes no clinical recommendations regarding the use of such restraints. 746-505-AM-6...
  • Page 21 X-ray cassette The X-ray cassette tray allows thoracic X-ray tray  photography with the backrest at any angle and without the patient moving from the bed. WARNING Position the mattress platform at an ergonomic height to allow easy loading and removal of X-ray cassettes. Return the X-ray cassette tray to its closed position below the backrest before raising or lowering the backrest.
  • Page 22 Release the knob to hold the tray in the fully open position (U). Position the X-ray cassette (V) on the tray with its bottom edge against the lip at the foot end of the tray. Positioning the X-ray cassette Pull the knob and slide the tray underneath the backrest. Release the knob to hold the tray in one of the five latching positions.
  • Page 23 If the anti-entrapment indicator is lit red when no obstruction is present, this may indicate a fault. Contact the ArjoHuntleigh Service Department. The anti-entrapment system may be triggered if the beam is interrupted by bed clothes etc.

  • Page 24: Power Operation

    5. Power operation Patient controls The Patient controls are located on the inside panel of both head end side rails. They operate bed functions as shown below. Patient controls (patient’s right hand side) Caregiver controls The Caregiver controls are located on the outside panel of both head end side rails.
  • Page 25 Separate patient handset  For patients who have difficulty in using the side rail controls, an optional separate handset is available. The controls on this handset operate in the same way as those on the side rails. WARNING When not in use the handset must be stored on the side rail, using the clip on the back.
  • Page 26 Attendant Control Panel (ACP) Attendant Control Panels are located on the outside panel of the foot end side rails. The Attendant Control Panel operates bed functions as shown below. Attendant Control Panel (patient’s right hand side) Power on indicator. Lit green when the bed is connected to the electrical supply.
  • Page 27 Adjusting the mattress platform The control keys are backlit to assist operation in darkened rooms. Press the appropriate key to select the function required; the indicator above the key will light green. • Mattress platform height • Backrest angle • Thigh section angle •...
  • Page 28 Tilt Head down tilt (Trendelenburg) and foot down tilt (reverse Trendelenburg) can be applied using the Attendant Control Panel. Press the Tilt Function key. The indicator above it will light green. Press and hold either Direction key until the required tilt angle is achieved.

  • Page 29: Nurse Call

    Refer to the manufacturer’s instructions for use. WARNING The nurse call function should be checked periodically for correct operation; as a minimum, ArjoHuntleigh recommends that this should be done before each new patient uses the bed and whenever the nurse call cable has been disconnected.
  • Page 30 Attendant Control Panel additional features Function Under certain circumstances it may be necessary to lockout prevent operation of the bed controls, e.g. when traction equipment is being used. To selectively disable bed functions: Press the Function Lockout key on the Attendant Control Panel.
  • Page 31 Emergency CPR Press and hold the Emergency CPR key. This will flatten, and if necessary lower, the mattress platform to enable cardiopulmonary resuscitation to be carried out. Underbed lights Press this key to turn the underbed lights on or off. The indicator above the key will light when the underbed lights are on.
  • Page 32 Lighting, radio and TV controls  Pushbutton controls for lighting and radio/TV are located on the head end side rails, facing the patient. The side rails also contain loudspeakers for radio and TV sound. Lighting, radio and TV controls Reading lamp on/off Main room light on/off TV closed caption on/off TV or radio channel up...
  • Page 33 TV controls – automatic setup In most cases, the bed will recognize the type of TV set in use and configure the TV controls automatically when the bed is connected to a compatible nurse call system. TV controls – manual setup If the TV controls are not set up automatically, the bed can be manually configured to suit the TV set in use.
  • Page 34 denotes the Direction Up key on the The symbol Attendant Control Panel, NOT the Patient or Caregiver controls Learning new 1. To enter Learning mode, simultaneously press these TV codes four keys for ten seconds: The bed will beep once and the weight display will show Λ...
  • Page 35 5. When the code is accepted, the bed will beep twice and the indicator below the Nurse Call key will light. 6. Repeat Steps 2 to 5 until all the required codes have been learned. 7. To exit Learning mode: at Step 3, instead of pressing one of the TV control keys, simultaneously press these four keys for ten seconds: 746-505-AM-6...
  • Page 36 Battery operation The backup battery is automatically switched on if the bed is disconnected from the electrical supply. The battery provides emergency operation of all powered functions for short periods of time, e.g. while the bed is being moved between units or floors. When the bed is operating from the backup battery, the control system indicates the battery status as follows.

  • Page 37: Bed Exit Detection (Enterprise® 8000+ Range)

    121 lbs. (55 kg). The bed exit function should be checked periodically for correct operation; as a minimum, ArjoHuntleigh recommends that this should be done before each new patient uses the bed and whenever the nurse call cable has been disconnected. Failure to carry out this check may result in alarms not being indicated at the nurse’s station.
  • Page 38 Controls The controls for bed exit detection are located on the outside of the foot end side rail. Bed exit detection controls Enable On/Off/Reset To enable bed exit detection: Press the Enable key then the On/Off/Reset key. The indicator above the key will light green. If the patient leaves the bed, the indicator above the On/Off/Reset key will light red and an alarm will sound on the bed.

  • Page 39: Patient Weighing And Varizone Movement Detection (Enterprise® 9000+ Range)

    7. Patient weighing and VariZone movement detection (Enterprise® 9000+ range) Controls The controls for the weighing system and VariZone patient movement detection are located on the outside of the foot end side rail. Patient weighing and VariZone movement detection controls Weight display (also shows bed section angles) Pounds/kilograms indicators Enable...
  • Page 40 Patient weighing system Accuracy The weighing system is very sensitive and can be affected by a number of external factors. For best performance, observe the following precautions: • Install the bed on a flat, level surface. • Remove the transport locking bolts and washers before use –...
  • Page 41 Weighing Press the Enable key followed by the Weigh key. The display will show a moving circular pattern until a stable weight reading is obtained. The patient’s weight will be displayed for ten seconds then the display will go blank. Auto The Auto compensation facility allows weight to be compensation...
  • Page 42 100 kg. A stable weight reading was not Unstable weight obtained within 10 seconds of pressing reading the Weigh key If the display shows an error code other than those given above, contact the ArjoHuntleigh Service Department. 746-505-AM-6...
  • Page 43 VariZone patient movement detection Overview VariZone movement detection can be set to alarm for undesired movement of the patient. The sensitivity of movement detection, relative to the center of the mattress platform, can be varied incrementally. Operation Before setting and activating movement detection, make sure the patient has been weighed, all additional accessories have been accounted for using the Auto Compensation function, and the weighing display is...
  • Page 44 WARNING The movement detection function should be checked periodically for correct operation; as a minimum, ArjoHuntleigh recommends that this should be done before each new patient uses the bed and whenever the nurse call cable has been disconnected.

  • Page 45: Decontamination

    8. Decontamination WARNING Disconnect the bed from the electrical supply before carrying out decontamination procedures. These instructions also apply to accessories but not to mattresses or side rail pads. Cleaning Wearing suitable protective clothing, clean all surfaces with a disposable cloth soaked in a neutral detergent and hand hot water.
  • Page 46 (NaDCC) as a disinfectant because it is effective, stable and has a fairly neutral pH. Many other disinfectants are used in healthcare facilities, and it is not possible for ArjoHuntleigh to test each one to determine whether it may affect the appearance or performance of the bed.

  • Page 47: Maintenance

    The following preventive maintenance procedures should be carried out every 12 months. All service and repair activities must be carried out by suitably qualified and trained personnel approved by ArjoHuntleigh. Disposal of product and components should be compliant with local procedures.
  • Page 48 On lifting poles, examine the strap and handle carefully; if loose stitching or fraying is found replace the strap and handle as a complete assembly. If the result of any of these tests is unsatisfactory, contact the ArjoHuntleigh Service Department. 746-505-AM-6...

  • Page 49: Accessories

    10. Accessories A full range of accessories, including mattresses, is available from ArjoHuntleigh. Details are available on request. Accessories currently available for the Enterprise® range are shown in the table below. DESCRIPTION PRODUCT CODE Lifting pole with strap & handle...
  • Page 50 BREEZE * Suitable for use with Enterprise® 8500, 8600 and 9600 ONLY. Certain accessories may not be available in some countries. ArjoHuntleigh reserves the right to alter accessory details and availability without notification. WARNING ConformX mattresses are not suitable for use with Enterprise®...

  • Page 51: Warranty And Service

    11. Warranty and service ArjoHuntleigh standard terms and conditions apply to all sales; a copy is available on request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. For service, maintenance and any questions regarding this, or any other ArjoHuntleigh product, please contact your local ArjoHuntleigh office or authorized distributor.

  • Page 52: Dimensions And Technical Data

    12. Dimensions and technical data Dimensions Overall length 89.8 ins. (228 cm) Extended 94.5 ins. (240 cm) In-bed length 80 ins. (203 cm) Extended 84.6 ins. (215 cm) Overall width 39 ins. (99 cm) With side rails raised 40.9 ins. (104 cm) Mattress size 80 x 34.6 x 5 ins.
  • Page 53 Electrical data Power input 5.8A max. at 120V a.c. 60Hz. Duty rating Intermittent 10% (2 min. / 18 min.) Safety Standards With respect to electric shock, fire and mechanical hazards only in accordance with UL60601-1, CAN/CSA C22.2 No 601.1, IEC 60601-2-38 and CAN/CSA C22.2 No 2.38 Electric shock protection Class I...
  • Page 54 Environmental Protection Incorrect disposal of this equipment and its component parts, particularly gas springs, actuators, batteries and other electrical devices, may produce substances that are hazardous to the environment. To minimize these hazards, contact ArjoHuntleigh for information on correct disposal. 746-505-AM-6...
