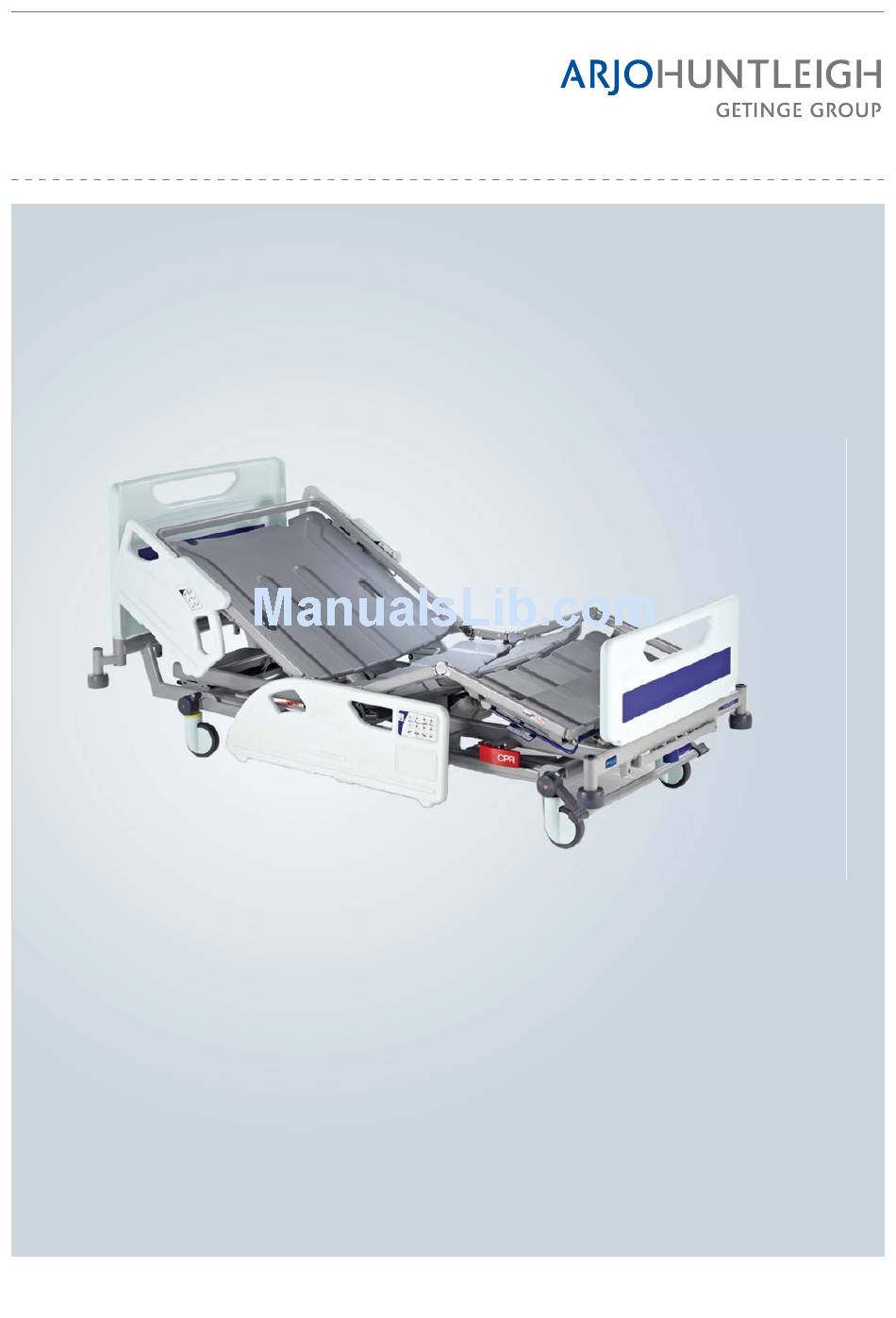

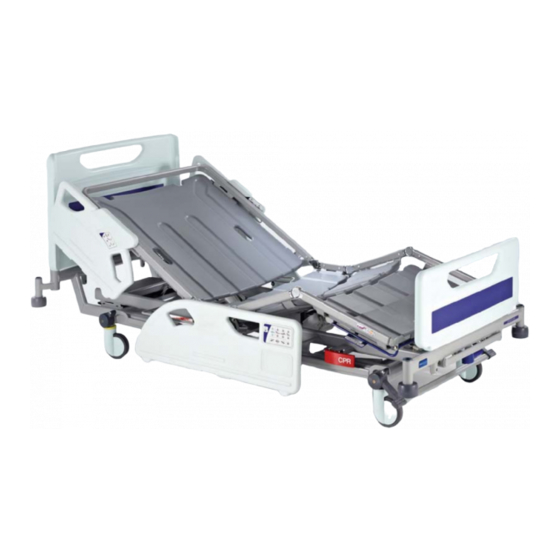

Page 1: Instructions For Use
ENTERPRISE 8000X (E8X) Instructions for Use ...with people in mind 746-585-UK-08 • 01/2017... - Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies unless otherwise stated. © ArjoHuntleigh 2016. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice. The content of this publication may not be copied...
-
Page 3: Table Of Contents
Contents Warnings, Cautions and Notes ............ii General Warnings ................iii 1. Introduction ..............1 Product overview................3 2. Clinical Applications ............. 4 Intended use .................. 4 Indications ..................4 Contra-indications ................5 3. Installation ..............6 Electricity supply ................7 Underbed light ................ -
Page 4: Warnings, Cautions And Notes
Warnings, Cautions and Notes Indicates possible hazards in procedures or conditions WARNING which, if not correctly followed, could result in death, injury or other serious adverse reactions. Indicates possible hazards in procedures or conditions Caution which, if not correctly followed, could result in equipment damage or failure. -
Page 5: General Warnings
Unauthorised modifications or repairs to this product may affect its safety and will invalidate any warranty. ArjoHuntleigh accepts no liability for any incident, accident or reduction in performance that may occur as a result of such repairs or modifications. - Page 6 WARNING Where risk assessment indicates that a patient is at high risk of entrapment owing to their medical condition or other circumstances, and where there is no medical benefit from their being left in a contoured position, place the mattress platform in the flat position when the patient is unattended.
-
Page 7: Introduction
1. Introduction These instructions contain information for the installation, use ® and maintenance of the ArjoHuntleigh Enterprise 8000X acute care hospital bed. These beds have multiple functions to provide the optimum nursing position for both patient and caregiver. Standard features: •... - Page 8 The model number and serial number can be found on the specification label; this is located on the bed frame below the head board. HUNTLEIGH HEAL THCARE LT D Duty 10% 2min/20min 250kg WEDNESBUR Y W EST MIDLANDS UK S/No. 012345 Made In Power in 230V 3.
-
Page 9: Product Overview
Product overview A. Head board O. Brake pedal / bar B. Head end side rail P. Accessory socket C. Caregiver controls Q. Extension catch bar D. Backrest section R. CPR release handle E. Foot end side rail S. Drainage bag rail F. -
Page 10: Clinical Applications
2. Clinical Applications WARNING To ensure the patient can use the bed safely, their age and condition should be assessed by a clinically qualified person. The use of head down tilt (Trendelenburg) or foot down tilt (reverse Trendelenburg) may be contraindicated for certain medical conditions. -
Page 11: Contra-Indications
Contra- The bed is not suitable for use in the following situations: indications • A domestic area, i.e. home healthcare (*Application Environment 4). • Outpatient care (*Application Environment 5). * Application Environments are defined in IEC 60601-2-52:2009. The bed is not suitable for patients under 40kg in weight. The maximum recommended patient weight is 185kg. -
Page 12: Installation
3. Installation The following chapter describes how to install the bed. WARNING If the power supply cord or plug is damaged, the complete assembly must be replaced by authorised service personnel. Do not remove the fitted plug, or use a rewireable plug or adapter. Make sure the power supply cord is not stretched, kinked or crushed. -
Page 13: Electricity Supply
Electricity Connect the mains plug to a suitable socket outlet. Make sure supply the plug is easily accessible so it can be disconnected quickly in an emergency. Power supply cord and potential equalisation terminal When the bed is connected to the electricity supply, an indicator will light on the Attendant Control Panel (see page 27). -
Page 14: Mattresses
Mattresses WARNING Always use a mattress of the correct size and type. Incompatible mattresses can create hazards. Entrapment hazards may exist when using a very soft mattress, even if it is the correct size. The maximum recommended mattress thickness for use with side rails is 18cm. - Page 15 • For more information on suitable mattresses and mattress replacements, contact your local ArjoHuntleigh office or approved distributor. A list of ArjoHuntleigh offices can be found at the back of this manual.
-
Page 16: Operation
4. Operation The following chapter describes how to operate the bed. WARNING Operate the brake pedals with your feet while wearing suitable shoes. Do not operate the pedals with your hands. Brakes and steering The pedals have three positions as shown below: •... -
Page 17: Foot Pedal For Adjustment Of Bed Height (Optional)
Additional brake pedals (1) may be fitted at the head end of the Head end brake pedals bed. These operate in the same way as the foot end pedals. Head end brake pedal Foot Pedal for Adjustment of Bed Height (Optional) Bed height can be adjusted from bed control panels and from the foot pedal located near the foot end of the bed. -
Page 18: Side Rails
Side rails WARNING The clinically qualified person responsible should consider the age, size and condition of the patient before allowing the use of side rails. Side rails are not intended to restrain patients who make a deliberate attempt to exit the bed. Ensure that the mattress is suitable for use with side rails - see Mattresses and side rails on page 9. - Page 19 To lower the side rail: Hold either side rail handle (1). Pull the blue release lever (2) and lower the side rail (3), holding the side rail until it is completely lowered. The side rail folds down below the mattress platform. Side rail operation The head end and foot end side rails operate in the same way.
-
Page 20: Cpr Backrest Release
CPR backrest release Manual CPR release handles are located below the calf section on either side of the bed. If the patient suffers a cardiac arrest, pull the CPR release handle (1). This will lower the backrest (2) to enable cardio- pulmonary resuscitation to be carried out. -
Page 21: X-Ray Cassette Tray (Optional)
X-ray cassette tray (Optional) The X-ray cassette tray allows thoracic X-ray photography with the backrest at any angle and without the patient moving from the bed. WARNING Position the mattress platform at an ergonomic height to allow easy loading and removal of X-ray cassettes. Return the X-ray cassette tray to its closed position below the backrest before raising or lowering the backrest. - Page 22 Release the knob to hold the tray in the fully open position (3). Position the X-ray cassette (4) on the tray with its bottom edge against the lip at the foot end of the tray. Positioning the X-ray cassette Pull the knob and slide the tray underneath the backrest. The red moulding on the top of the X-Ray sitting tool indicates the top right hand corner of the X-Ray cassette.
-
Page 23: Bed Length Adjustment
Bed length adjustment The length of the bed is adjustable to three set positions. These are typically used as follows: Short, for manoeuvring the bed in confined spaces Standard length, for normal use Extended, to accommodate very tall patients WARNING Install a suitable foam mattress extension (squab) at the head end when the bed is extended. - Page 24 To extend the mattress platform: Lift the blue extension catch bar (1). Hold the middle of the end crossbar (2) and pull out the mattress platform to the required position. Release the catch bar. Extending the mattress platform WARNING After extending the mattress platform make sure the calf extension sheet is clipped over the end of the mattress platform frame.
-
Page 25: Bedstripper (Linen Shelf) (Optional)
Bedstripper (linen shelf) (Optional) The bedstripper is used for supporting clean linen when the bed sheets are being changed. Pull out the bedstripper from its closed position below the foot board. After use, push the bedstripper back to its closed position. Bedstripper (linen shelf) Caution The safe working load of the bedstripper is 20kg. -
Page 26: Lifting Pole And Accessory Sockets
Lifting pole and accessory sockets Lifting pole sockets (1) are located at the head end of the mattress platform. Sockets to support compatible accessories are located at the head end (2) and foot end (3) of the bed. Lifting pole and accessory sockets (head end) Accessory sockets (foot end) -
Page 27: Drainage Bag Rails
Drainage bag rails Rails (1) to support drainage bags, etc. are located below the thigh and backrest sections on either side of the bed. The bed may also be fitted with DIN accessory rails (2). Drainage bag rails and DIN rail Caution The maximum weight that can be safely supported by each drainage bag rail and DIN rail is 5kg. -
Page 28: Head And Foot Boards
Head and The head and foot boards can be easily lifted off the bed for foot boards access to the patient. The head and foot boards can each be fitted with locking catches (1) to prevent accidental removal. To unlock a board: pull out the catches (2) and rotate them a quarter-turn (3);... -
Page 29: Adjusting The Mattress Platform
Adjusting the mattress platform WARNING The controls require only a single press to activate. To prevent unwanted movement of the mattress platform, avoid leaning against the side rails and keep equipment on and around the bed clear of the controls. Controls for use by the patient and caregiver are built into the head end side rails. -
Page 30: Patient Controls
Patient The patient controls are located on the inside panel of both controls head end side rails. Patient controls (patient’s left hand side) WARNING The patient should be shown how to use these controls by the caregiver. Caregiver The caregiver controls are located on the outside panel of both controls head end side rails. - Page 31 These buttons raise and lower the thigh section. Thigh section When the thigh section is first raised from the flat position, the calf section will be in the Fowler position (angled downwards). To change the calf section to the vascular (horizontal) position, refer to the section Adjusting the calf position on page 30.
-
Page 32: Patient Handset (Optional)
Patient The controls on this handset operate in the same way as those handset on the side rails (see page 25). (Optional) WARNING Store the handset on the side rail using the clip on the back; this will help to prevent accidental operation of the controls. The patient should be shown how to use the handset by the caregiver. -
Page 33: Attendant Control Panel (Acp)
Attendant Control Panel (ACP) Attendant Control Panels are located on the outside panels of both foot end side rails. The ACP on the left side and right side of the bed have different button layouts. Additionally, an ACP can be mounted at the foot-end of the bed, either clipped onto the foot board or using an ACP holder (ENT-ACC11) in an accessory socket. - Page 34 These buttons raise and lower the thigh section. Thigh section When the thigh section is first raised from the flat position, the calf section will be in the Fowler position (angled downwards). To change the calf section to the vascular (horizontal) position, refer to the section Adjusting the calf position on page 30.
-
Page 35: Function Lockout
Function lockout Function lockout can be used to prevent operation of the controls, e.g. when inadvertent movement of the mattress platform could injure the patient. To lock (prevent) or unlock (allow) functions: Press the Function Lock button. The indicator above the button will light. -
Page 36: Adjusting The Calf Position
Adjusting the calf position When the thigh section is raised, the calf section can be manually changed to the vascular (horizontal) position. Hold the side of the calf section frame. Lift the calf section upwards (1) until it latches (2). Changing from Fowler position (left) to vascular To return the calf section to the Fowler position: Use the caregiver controls or ACP to lower the thigh section to... -
Page 37: Backup Battery
Backup battery Caution To ensure the battery is kept fully charged and prevent damage to the battery, the bed should be connected to the electricity supply at all times during normal use. The battery is intended for short term use only. Its life will be reduced if it is used to power the bed for long periods. -
Page 38: Duty Cycle Lockout
To recharge the battery, connect the bed to the electricity Recharging the backup battery supply. Allow at least eight hours to recharge the battery when it is completely discharged. While the battery is recharging, the ACP battery indicator lights yellow. The indicator will go out when the battery is fully charged. -
Page 39: Product Care
5. Product Care WARNING Disconnect the bed from the electricity supply before starting any cleaning or maintenance activity. The bed will still operate on battery power if the function has not been locked on the ACP. Mattress platform sections The four mattress platform sections (backrest, seat, thigh and calf) can be removed by pulling them upwards off the mattress platform frame. -
Page 40: Decontamination
(NaDCC) as a disinfectant because it is effective, stable and has a fairly neutral pH. Many other disinfectants are used in healthcare facilities, and it is not possible for ArjoHuntleigh to test each one to determine whether it may affect the appearance or performance of the bed. - Page 41 used with care and in accordance with the manufacturer’s instructions. Caution Do not use abrasive compounds or pads, or phenol-based disinfectants. Do not use jet stream cleaning or wash tunnels. Do not remove grease from the actuator pistons.
-
Page 42: Preventive Maintenance
Attendant Control Panels operate correctly Check the mattress for damage and fluid ingress Examine the lifting pole, strap and handle If the result of any of these tests is unsatisfactory, contact ArjoHuntleigh or an approved service agent. - Page 43 WARNING The procedures below must be carried out by suitably trained and qualified personnel. Failure to do so may result in injury or an unsafe product. Actions to be done by qualified personnel Yearly Check that the bedstripper (linen shelf) remains in its closed ...
- Page 44 If the bed fails a second time, contact ArjoHuntleigh or an approved service agent. To maintain best performance, the backup battery should be replaced every four years by an approved service agent.
-
Page 45: Troubleshooting
Troubleshooting If the equipment fails to operate correctly, the table below suggests some simple checks and corrective actions. If these steps fail to resolve the problem, contact ArjoHuntleigh or an approved service agent. Symptom Possible Cause Action Check the power supply... -
Page 46: Fault Indications
The bed’s control software indicates problems in the electrical system by means of flashing indicators on the Attendant Control Panel (ACP). If you experience any of the indications below, contact ArjoHuntleigh or an approved service agent. Indication Possible cause Height actuator fault... -
Page 47: Accessories And Cables
6. Accessories and Cables Recommended accessories for the bed are shown in the table below. Note that some items may not be available in all countries. Accessory Product code Lifting pole with strap and handle ENT-ACC01 IV pole ENT-ACC02 IV pole steel hooks ENT-ACC02 SH Angled IV pole ENT-ACC04... -
Page 48: Technical Data
7. Technical Data General Safe working load 250kg Maximum patient weight 185kg Product weight (approx.) 150kg Audible noise 50dB approx. Operating conditions Temperature 5°C to 40°C Relative humidity 20% to 90% at 30°C, non-condensing Atmospheric pressure 700hPa to 1060hPa Electrical data Power input 1.25A max. - Page 49 Dimensions (subject to normal manufacturing tolerances Overall length Position 1 (Short) 224cm Position 2 (Standard) 235cm Position 3 (Extended) 247cm In-bed length Position 1 (Short) 192cm Position 2 (Standard) 203cm Position 3 (Extended) 215cm Overall width 103cm Height of mattress platform (centre of seat section to floor) With 125mm castors 32cm to 76cm With 150mm castors...
- Page 50 To minimise these hazards, contact ArjoHuntleigh for information on correct disposal. Transport and storage Handle with care. Do not drop. Avoid shock or violent impact.
- Page 51 Symbols (continued) Type B applied part Applied parts are considered to be: Upper frame section, Bed controls, Safety Sides, Head and Foot Boards Manufacturer / date of manufacture Complies with the European Medical Device Directive 93/42/EEC Serial number Model number Waste Electrical and Electronic Equipment (WEEE) - do not dispose of this product in general household or commercial waste...
-
Page 52: Warranty And Service
8. Warranty and Service ArjoHuntleigh standard terms and conditions apply to all sales; a copy is available on request. These contain full details of warranty terms and do not limit the statutory rights of the consumer. For service, maintenance and any questions regarding this product, please contact your local ArjoHuntleigh office or approved distributor. -
Page 53: Electromagnetic Compatibility
9. Electromagnetic Compatibility The bed is intended for use in the electromagnetic environment specified in the tables below. The customer or the user of the bed should ensure that it is used in such an environment. Failing to ensure that these tables are properly followed may result in the product not working properly. - Page 54 Guidance and manufacturer’s declaration – electromagnetic immunity The bed is intended for use in the electromagnetic environment specified below. The customer or the user of the bed should assure that it is used in such an environment. IEC 60601 Compliance Electromagnetic environment - Immunity test test level...
- Page 55 Guidance and manufacturer’s declaration – electromagnetic immunity The bed is intended for use in the electromagnetic environment specified below. The customer or the user of the bed should assure that it is used in such an environment. IEC 60601 test Compliance Electromagnetic environment - Immunity test...
- Page 56 Recommended separation distances between portable and mobile RF communications equipment and the bed The bed is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the bed can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the bed as recommended below, according to the maximum output power of the communications equipment.
