Ports and Buttons

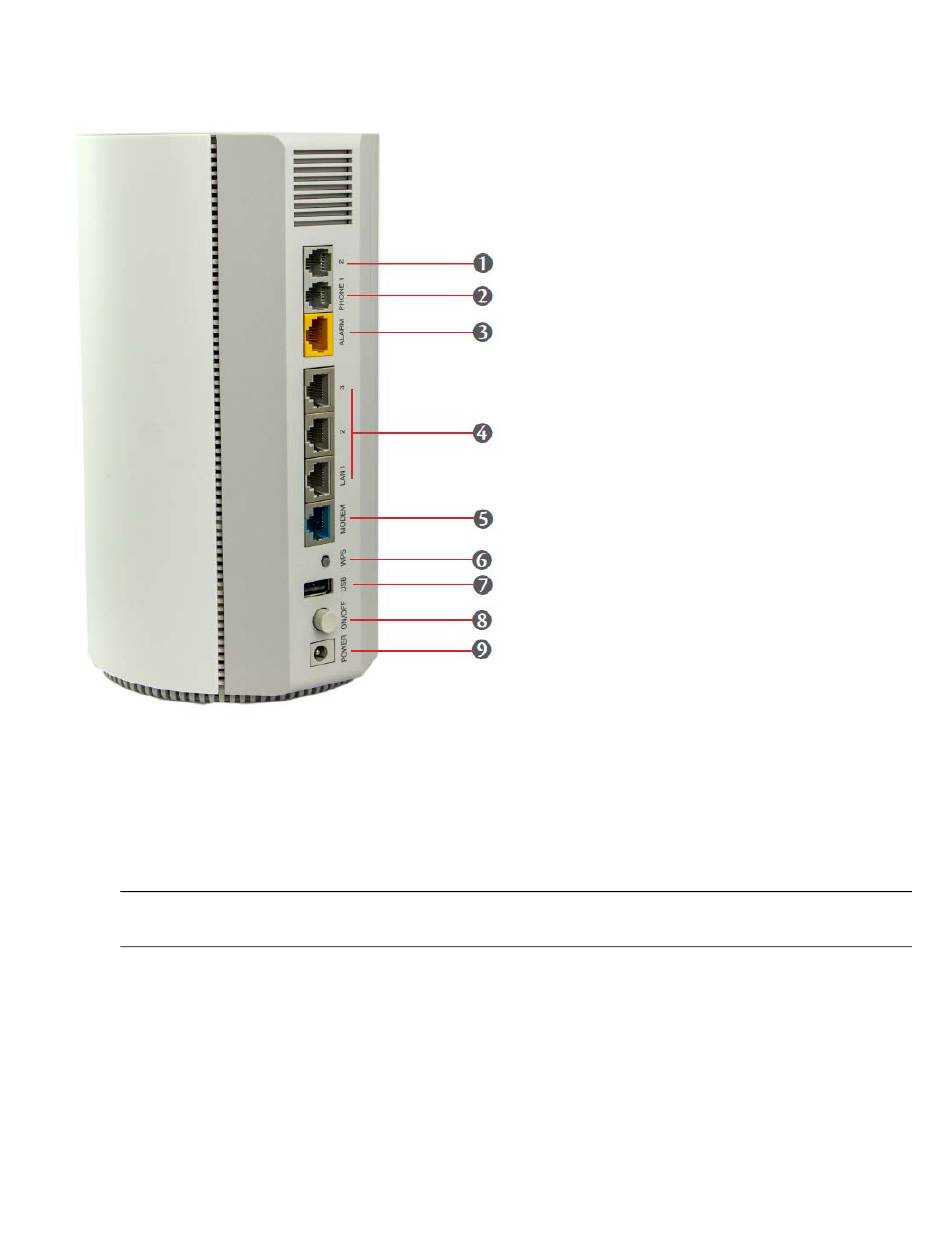

Figure 2. Ports and Buttons on the 5G Home Router 1A
1. Phone port 2 (RJ-11) — phone connector port.*
2. Phone port 1 (RJ-11) — phone connector port.*
3. Home Security port (RJ-31) — Home Security connector port. *
WARNING! Do not connect phone, fax or any other devices to the yellow port labeled ALARM.
Doing so could damage the 5G Home Router 1A.
4. Ethernet ports 1/2/3 — Local Area Network (LAN) connector ports.
5. Modem port — external modem port (connects to 5G modem).
6. WPS button — allows devices to connect to the router using WPS.
7. USB — USB port (do not plug anything into this port).
8. Power on/off button — powers the router on and off.
9. Power port — AC power connector port.
*Future feature
