19

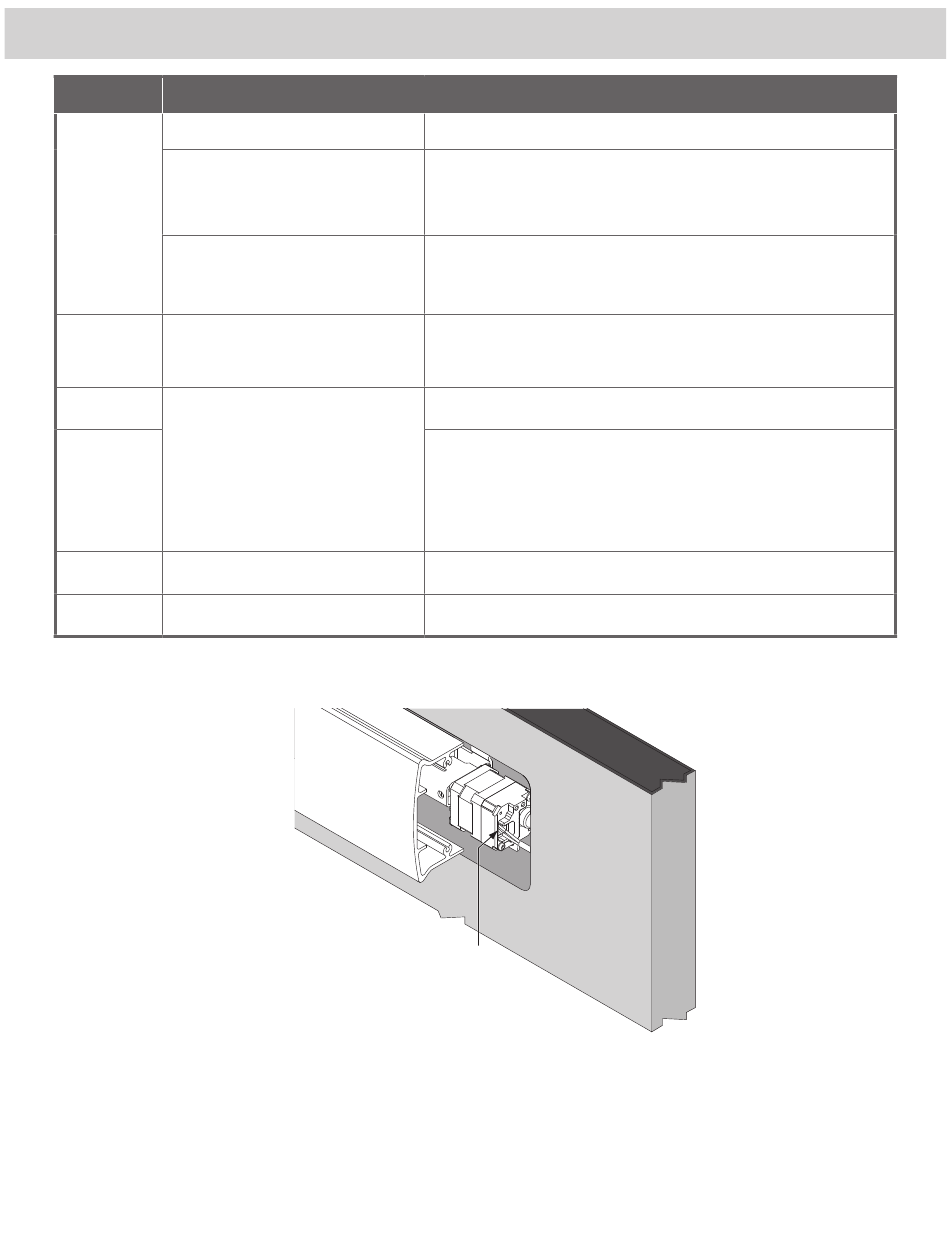

IF NECESSARY, TROUBLESHOOT OPERATION
Power at the
QEL
LED - Solid green
Latchbolt - retracted
LED - Solid red after latchbolt
attempts to retract multiple times
24VDC
LED - Flashing green/red
Latchbolt - not retracted
LED - Flashing green
24VDC low
Latchbolt - retracted
29VDC or
greater
LED- Flashing red
Latchbolt - will not retract
13VDC or
lower
LED - off
0VDC
Latchbolt - not retracted
LED - off
0VDC
Latchbolt - retracted
*For information about adjusting exit devices, you can find their installation instructions in the support area at www.allegion.com/us or
call Technical Services at 1-877-671-7011
Output 2 LED Red
QEL Response Condition/Solution
Operation normal, latch retracted immediately
Latchbolt cannot fully retract mechanically
Verify mechanical adjustment (on vertical rod or mortise lock devices
if used). Remove and reapply input voltage to reset this condition.*
See Test Mechanical Device Operation on page 12 as needed.**
Excessive tamper (while power applied, the pushpad was pulled out
at least 3 time)
Wait 15 seconds and latchbolt will retract again OR remove and
reapply power to clear condition
Voltage low during latchbolt retraction (latchbolt retracts at reduced
force)
Wire length is too long, wire gauge is too small or power supply has
poor regulation
Input voltage is too high for proper operation
Wrong power supply, power supply defective.
Input voltage is too low for proper operation
Wrong power supply, power supply defective or not set to the proper
output voltage.
To set, remove AC power from power supply, change power supply
setting from 12 to 24VDC, then reapply AC power and verify proper
operation.
No input voltage
Problem with the power supply, control switch or wiring
No input voltage
Mechanical dogging is engaged
LED
on Device
