Panic/fire surface vertical rod exit device

Advertisement

Quick Links

11111111111111111111111111111111111111111111111111
47260189

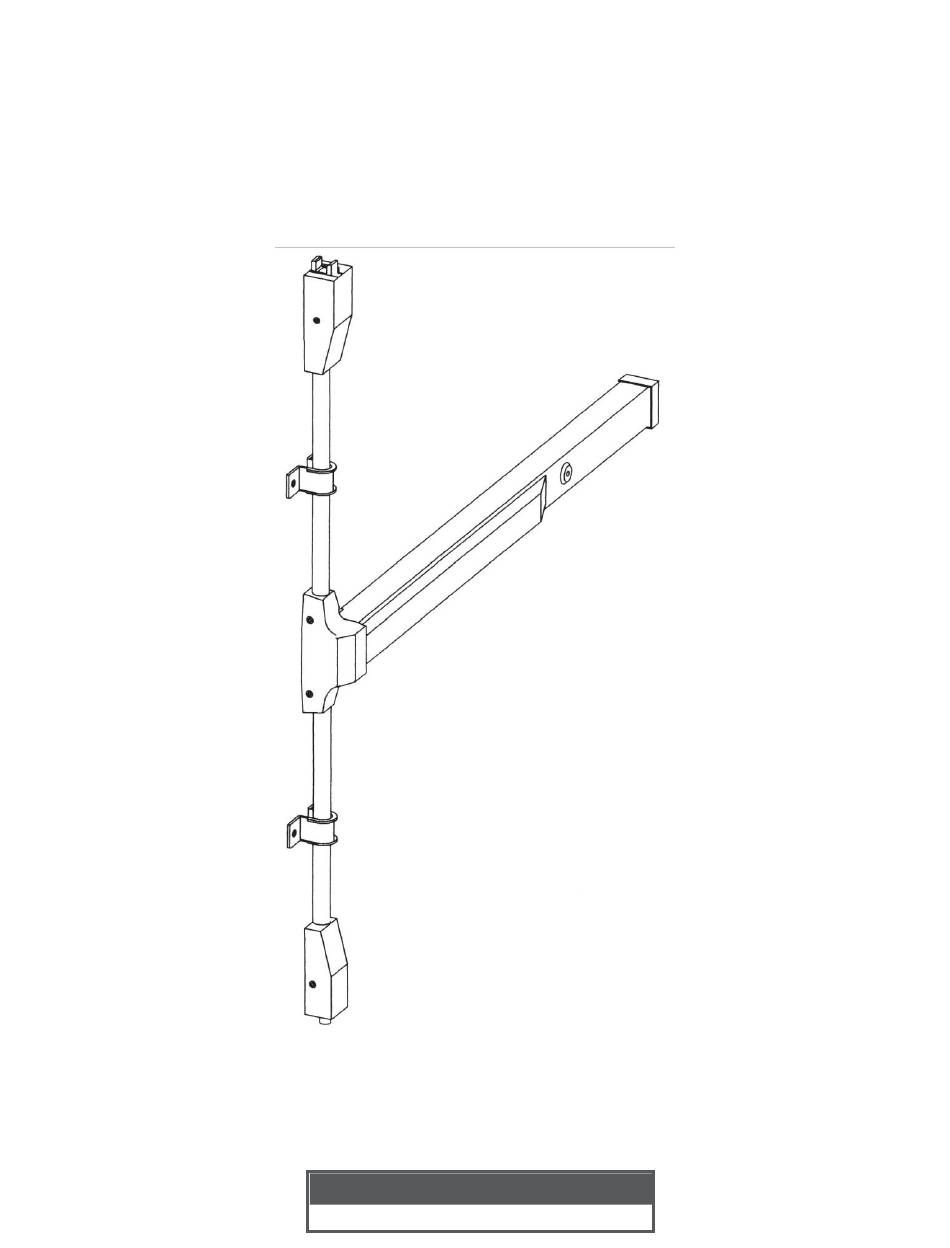

Panic/Fire Surface Vertical Rod Exit Device
·
-
AL
L E
G
IO
N"
20 Series
Surface Vertical Exit Device
1-877-671-7011
www.allegion.com/us
FALCON®
Installation Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the FALCON 20 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Allegion FALCON 20 Series

  • Page 1 FALCON® 11111111111111111111111111111111111111111111111111 47260189 20 Series Surface Vertical Exit Device Panic/Fire Surface Vertical Rod Exit Device Installation Instructions • • • ■ ■ • • · N" 1-877-671-7011 www.allegion.com/us...
  • Page 2 Parts Identification pstrike End cap Top latch Top latch assembly cover End cap bracket Top latch assembly Mounting bracket odguide Top rod Mechanism housing Dogging device (Fire Exit Hardware does not come with this device.) Rod connector Chassis cover Chassis assembly Chassis Bottom rod Tools...
  • Page 3 Use this diagram to determine the hand of the door. Outside of door Inside of door Single Door Double Door with Mullion Double Door without Mullion One rim exit device Two rim exit devices with mullion Rim exit device and surface vertical rod exit device combination...
  • Page 4 Prepare the door. a. Mark position of holes on the door using the templates. See Figure 1. b. Spot and drill all holes as marked on door for device chassis, top and bottom latch mounting brackets and end cap bracket. Install brackets, device and trim.
  • Page 5 d. Tighten bottom rod with bit glide plate in bottom position. (See Figure 6.) Install bottom rod and bottom strike. • If the hole on bottom rod connector does not match a. Mount bottom latch assembly into mounting bracket. (See alignment with the mounting hole of bit glide plate, adust Figure 3.) height of bottom rod as shown at Figure 5.
  • Page 6 c. Measure the top rod against the edge of the rod connector shown. Mark the rod and cut off excess. (See Figure Install top rod and top strike. 10.) a. Mount top latch assembly into mounting bracket. d. Insert the rod connector into the non-threaded end of the (See Figure 8.) top rod and tighten set screw securely.
  • Page 7 e. Tighten top rod connector onto the bit glide plate (upper side). (See Figure 12.) f. If the hole of top rod connector does not align with the Test operation. a. Depress push bar. Top latch should be held retracted. While mounting hole of the bit glide plate,...
  • Page 8 Release dogging: Hold push bar, insert dogging hex wrench and turn counterclockwise 90 degrees. The push bar will return to the up position and latch will extend to lock the door. © Allegion 2017 Printed U.S.A. 47260189 Rev.
