- Page 1 Quick Start Guide 00825-0100-4211, Rev AA June 2019 ™ Rosemount ET210 Wireless Corrosion Transmitter...
- Page 2 This could be intentional or unintentional and needs to be protected against. Physical security is an important part of any security program and fundamental to protecting your system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for all systems used within the facility. Emerson.com/RosemountEmerson.com/Rosemount...
-
Page 3: Table Of Contents
June 2019 Quick Start Guide Contents Overview............................5 Wireless considerations........................7 Field communicator connections....................8 Physical installation........................9 Commissioning device....................... 12 Product certifications......................... 15 Quick Start Guide... - Page 4 Quick Start Guide June 2019 Emerson.com/RosemountEmerson.com/Rosemount...
-
Page 5: Overview

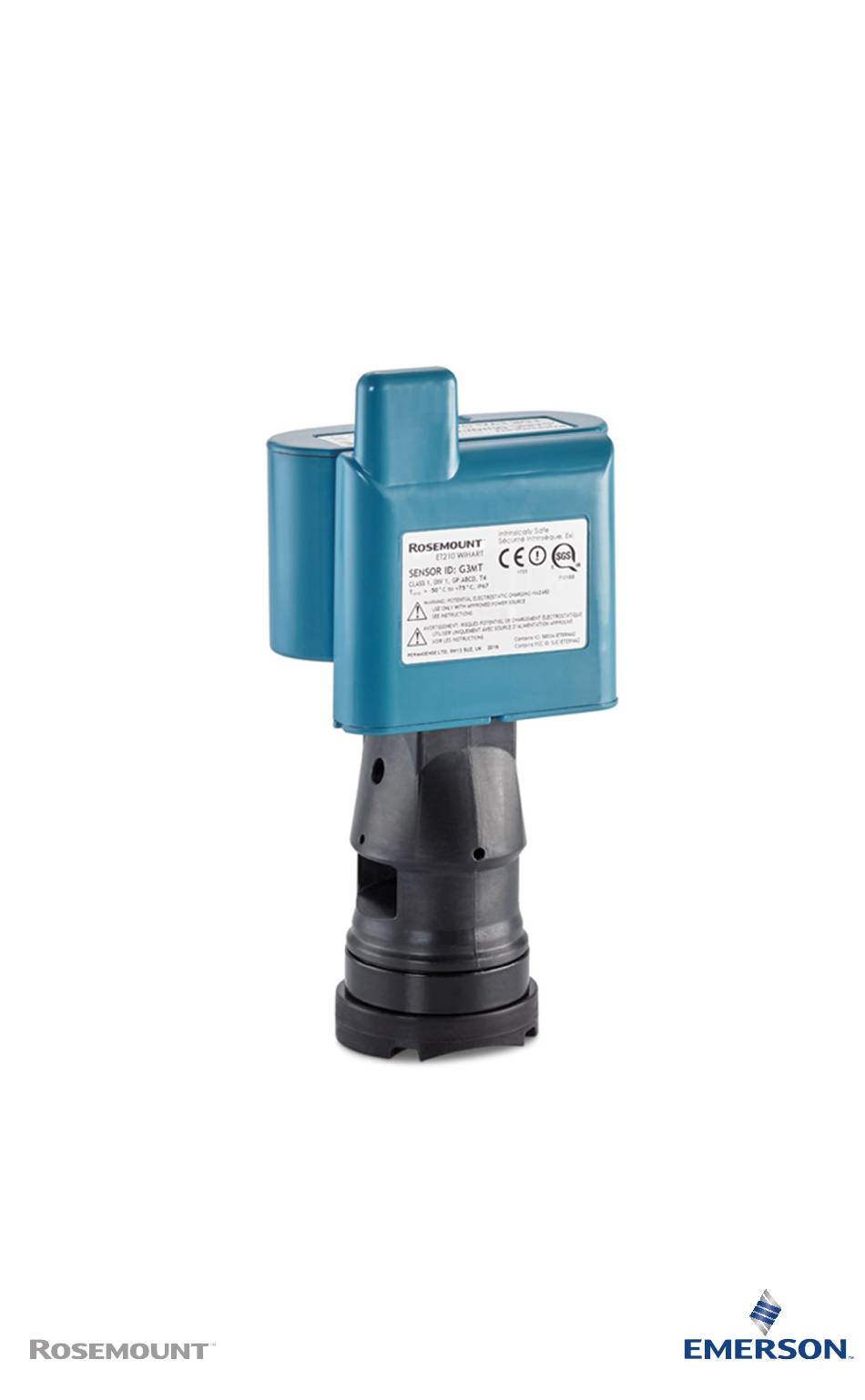

June 2019 Quick Start Guide Overview Figure 1-1: Rosemount ET210 Wireless Corrosion Transmitter A. Antenna B. Power module C. Head D. Lanyard hole E. Strap slot F. Foot G. Cap H. Shoe Quick Start Guide... - Page 6 Lanyard kit, 316 stainless steel lanyard 6.5ft. (2m) in length, Gripple No.2, release key • Silicone rubber shoe • Strap kit, comprising polymer strap and buckle • Permasense BP20E power module • M3 x 16mm stainless steel retaining bolts, two per sensor Emerson.com/RosemountEmerson.com/Rosemount...
-
Page 7: Wireless Considerations
The Emerson Smart Wireless Gateway should be installed and functioning properly before any wireless devices are powered. Commission the Rosemount ET210 and install the BP20E power module to power the device only (following instructions below) after the gateway has been installed and functioning. -
Page 8: Field Communicator Connections
BP20E power module. The USB connector is plugged in to the tablet PC as shown in Figure 3-1. Figure 3-1: IK220 Commissioning Kit A. Tablet PC B. CC21 C. USB cable plugged into USB port D. WT210/ET210 sensor Emerson.com/RosemountEmerson.com/Rosemount... -
Page 9: Physical Installation
June 2019 Quick Start Guide Physical installation Mounting the sensor Procedure 1. Identify the location where the sensor should be fixed. Clean the area where the sensor will touch the pipe, mainly to remove any particles which might keep the transducer away from the pipe surface or damage the face of the transducer. - Page 10 9. Thread the bare end of the wire through the loop in the lanyard to secure it to the pipe. 10. Feed the bare end of the lanyard into the ‘gripple’ and push the ‘gripple’ 6 in. (15 cm) up from the bare end. Emerson.com/RosemountEmerson.com/Rosemount...
- Page 11 June 2019 Quick Start Guide 11. Feed the bare end through the lanyard hole in each sensor and then into the return hole of the ‘gripple’. Note The wire can be released from the ‘gripple’ using the release key. Quick Start Guide...
-
Page 12: Commissioning Device
Check in the Network Discovery panel to confirm that the sensor can hear a device with the network ID you wish the sensor to join. Note Joining the device to the network could take several minutes. Figure 5-1: Install Tool Emerson.com/RosemountEmerson.com/Rosemount... - Page 13 June 2019 Quick Start Guide Completing sensor installation Complete the following in the ET210 installation app software on the Installation tab: Procedure 1. Press the Start button. Wait for an Ultrasonic waveform to download from the sensor. Note Waveforms are automatically downloaded every 10 seconds. When a new waveform arrives, the lines briefly become thicker.
- Page 14 Quick Start Guide June 2019 large network of 100 sensors this can often take 2 hours, and sometimes up to 6 hours. 8. Sensor installation is complete. Emerson.com/RosemountEmerson.com/Rosemount...
-
Page 15: Product Certifications
All wireless devices require certification to ensure they adhere to regulations regarding the use of the RF spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage. - Page 16 2. When fitted with the appropriate high-temperature mounting foot, the equipment may be attached to process pipework at a temperature of up to 120 °C. 3. The enclosure may present a potential electrostatic ignition hazard and must not be rubbed or cleaned with a dry cloth. Emerson.com/RosemountEmerson.com/Rosemount...
- Page 17 June 2019 Quick Start Guide Declaration of Conformity Figure 6-1: Declaration of Conformity Quick Start Guide...
- Page 18 Quick Start Guide June 2019 China RoHS Emerson.com/RosemountEmerson.com/Rosemount...
- Page 19 June 2019 Quick Start Guide Quick Start Guide...
- Page 20 The Emerson logo is a Twitter.com/Rosemount_News trademark and service mark of Emerson Electric Facebook.com/Rosemount Co. Rosemount is mark of one of the Emerson Youtube.com/user/ family of companies. All other marks are the RosemountMeasurement property of their respective owners.
