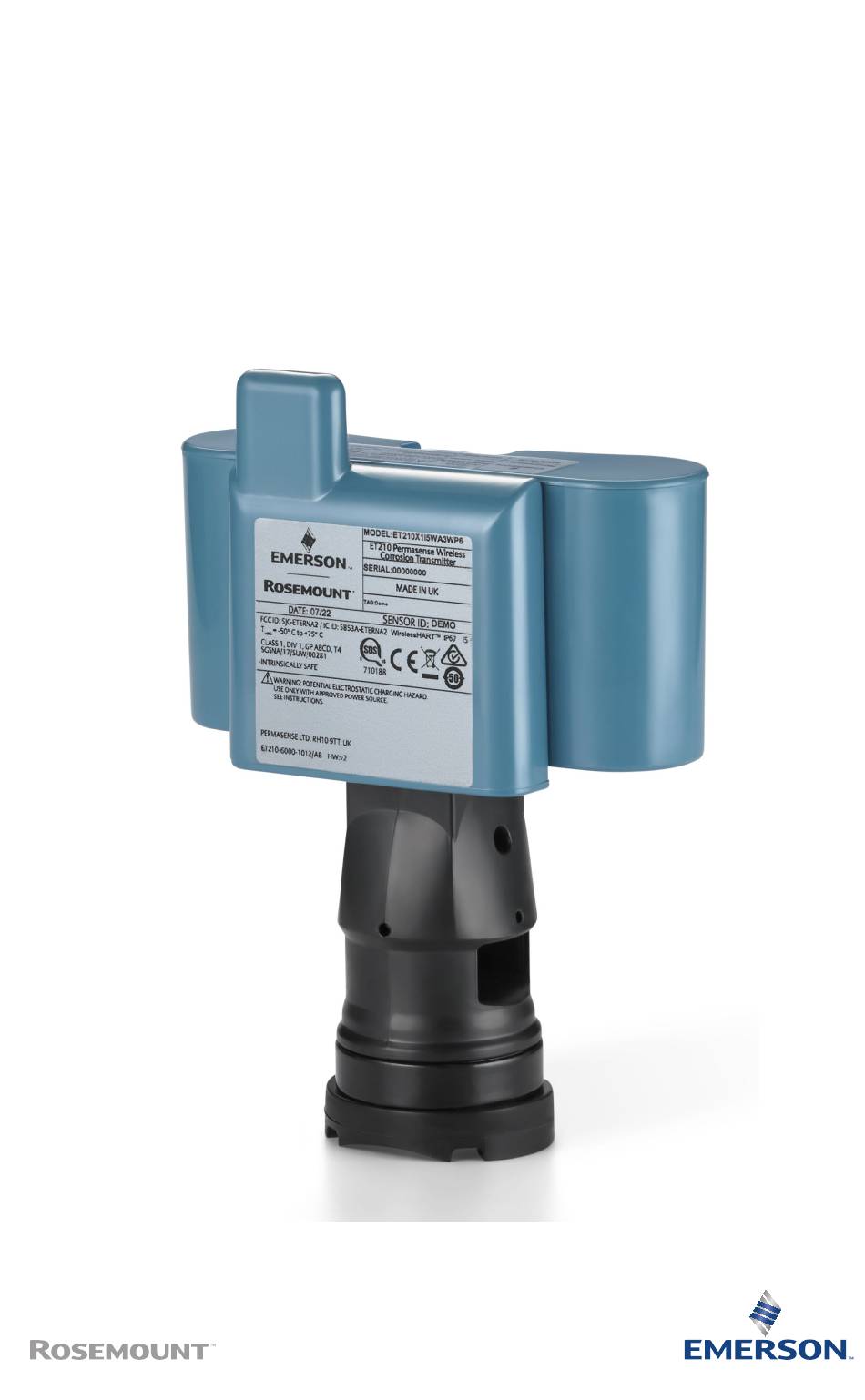

- Page 1 Quick Start Guide 00825-0100-4211, Rev BB December 2024 Rosemount Wireless ET210 ™ Corrosion and Erosion Transmitter...
- Page 2 This guide provides basic guidelines for the installation of the Rosemount ET210 Wireless ™ Corrosion and Erosion Transmitter and is available electronically on Emerson.com. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting or intrinsically safe (IS) installations. Failure to follow these installation guidelines could result in death or serious injury.
- Page 3 Goods). It is the responsibility of the shipper to ensure compliance with these or any other local requirements. Consult current regulations and requirements before shipping. Contents Overview............................5 Wireless considerations......................7 Field communicator connections....................8 Physical installation........................9 Commissioning device......................13 Product certifications........................ 16 www.Emerson.com...
- Page 4 December 2024 Quick Start Guide www.Emerson.com...
- Page 5 Figure 1-1: Rosemount Wireless ET210 Corrosion and Erosion Transmitter A. Antenna B. Power module C. Head D. Lanyard hole E. Strap slot F. Foot G. Cap H. Shoe 1.1 What's in the box • Rosemount Wireless ET210 Corrosion and Erosion Tansmitter, complete with protective cap www.Emerson.com...
- Page 6 The following tools are supplied in the Rousemount IK220 Installation Kit: • Strap tightening tool, part number HCL SM-FT-2000 • 2.5 mm hex key for power module retaining bolts Currently unable to order this product online. If product is needed, contact your Emerson sales representative to assist with ordering. www.Emerson.com...
- Page 7 December 2024 2 Wireless considerations Power up sequence Before any wireless devices are powered, verify the Emerson Wireless Gateway is installed and functioning properly. Before commissioning the Rosemount Wireless ET210 Corrosion and Erosion Transmitter and installing the Rosemount BP20E Power Module, ensure that the gateway has been installed and is functioning correctly.
- Page 8 The USB connector is plugged in to the tablet PC as shown in Figure 3-1. Figure 3-1: IK220 Commissioning Kit A. Tablet PC, with installation tool installed B. Rosemount Wireless ET210 Corrosion and Erosion Transmitter C. Rosemount CC21 Commissioning Communicator, with USB connector to connection to tablet PC www.Emerson.com...
- Page 9 Ensure tools and fastenings are kept away from the transmitter when the cap is removed. NOTICE Ensure the metal ring and the rubber shoe are fitted before installing the transmitter. If either part is missing, do not proceed with the installation. www.Emerson.com...
- Page 10 6. Cut the strap to a suitable length. This will depend on the diameter of the pipe. If the diameter of the pipe is inches/cm, the length can be approximated by 3 x (D + 4) inches or 3 x (D + 10) cm. www.Emerson.com...
- Page 11 11. Wrap the lanyard around the circumference of the pipe. Note The 7 ft. (2 m) length will accommodate a maximum diameter of 24 in. (610 mm). When it is not possible to wrap the lanyard around a pipe, find an alternative attachment point for the lanyard. www.Emerson.com...
- Page 12 6 in. (15 cm) up from the bare end. 14. Feed the bare end through the lanyard hole in each transmitter and then into the return hole of the gripple. Note The wire can be released from the gripple using the release key. A. Release key www.Emerson.com...
- Page 13 ) join key. d) Click the Provision button. Confirmation is given when provisioning is complete. e) Check the network ID of the gateway is visible in the network discovery list. Note Joining the device to the network could take several minutes. www.Emerson.com...
- Page 14 December 2024 Quick Start Guide Figure 5-1: Install Tool 5.2 Completing transmitter installation Complete the following in the Rosemount ET210 installation application software on the Installation tab: Procedure 1. In the Rosemount installation application software, select the Installation tab. 2. Press the Start button. Wait for an ultrasonic waveform to download from the transmitter.
- Page 15 When the power module is fitted, the transmitter will restart and try to join the WirelessHART gateway. In a large network ® of 100 transmitters this can often take 2 hours, and sometimes up to 6 hours. Transmitter installation is complete. www.Emerson.com...
- Page 16 (RF) spectrum. Nearly every country requires this type of product certification. Emerson is working with governmental agencies around the world to supply fully compliant products and remove the risk of violating country directives or laws governing wireless device usage.
- Page 17 UL 913 - 8th Edition, Revision Dec 6 2013 Standards: CLASS I, DIV 1, GP ABCD, T4, T = -50 °C to +75 °C, Markings: IP67 6.8 Canada 6.8.1 I6 Canada Intrinsically Safe (IS) SGSNA/17/SUW/00281 Certificate: CAN/CSA C22.2 No. 157-92 (R2012) +UPD1 +UPD2 Standards: www.Emerson.com...
- Page 18 2. When fitted with the appropriate high-temperature mounting foot, the equipment may be attached to process pipework at a temperature of up to 120 °C. 3. The enclosure may present a potential electrostatic ignition hazard and must not be rubbed or cleaned with a dry cloth. www.Emerson.com...
- Page 19 Ex ia IIC T4 Ga Markings: Specific Condition For Safe Use (X): See certificate for specific conditions of safe use. 6.13 Eurasian Economic Union 6.13.1 IM EAC Intrinsic Safety KZ 7500525.01.01.00804 Certificate: ТР ТС 012/2011 Standards: 0Ex ia IIC T4 Ga X Markings: www.Emerson.com...
- Page 20 4. The CC21 Commissioning Cable must only be used in a non- hazardous area – it provides an interface between unspecified non-hazardous area equipment and a Mesh Sensor. It must not be used to provide power whilst located in a hazardous area. www.Emerson.com...
- Page 21 17-KA4BO-0663X (when supplied from UK) Certificate: 20-KA4BO-0505X (when supplied from Singapore) Ex ia IIC T4 Markings: Specific Condition For Safe Use (X): See certificate for specific conditions of safe use 6.17 UAE 6.17.1 IX ECAS Ex Intrinsic Safety 23-11-22700/Q23-11-048835/NB0002 Certificate: www.Emerson.com...
- Page 22 December 2024 Quick Start Guide 6.18 Declaration of Conformity Figure 6-1: Declaration of Conformity www.Emerson.com...
- Page 23 Quick Start Guide December 2024 6.19 China RoHS www.Emerson.com...
- Page 24 2024 Emerson. All rights reserved. Emerson Terms and Conditions of Sale are available upon request. The Emerson logo is a trademark and service mark of Emerson Electric Co. Rosemount is a mark of one of the Emerson family of companies. All other marks are the property of their respective owners.
