Operation levels:
Levels of use:
The parameterisation of the switchgear is divided into the menu areas EASY and EXPERT. Access to level 1
allows consultation of the breakdown history in the menu level 6.0.0.0 and the identification/connection sector
from menu 7.0.0.0. Access to level 3 allows consultation and parameterisation of the whole menu.
For rapid commissioning using the factory presets, it is enough to set the speed values and the speed
adjustment in the EASY area.
• Key switch (Fig. 1, pos. 48 et 49)
Pressure switch 1 and pressure switch 2 each have a key switch. The key switches can be locked in the
"Auto" position and their keys can only be withdrawn if the key switches are in the "Auto" position. Once the
"0" or "Manual" position has been selected, no automatic start-up with the pressure switch or float switch can
take place. The status corresponding to the "Auto" position is signalled by the green LEDs (Fig. 2, pos. 30,
31) and that which corresponds to the "0" or "Manual" position by the red LEDs (Fig. 2, pos. 32, 33).
If you turn one of the key switches in "Manual" mode, the diesel motor starts up manually with battery 1 or 2,
and six attempts maximum.
• Key switch (Fig. 1, pos. 6)
By turning the key switch into the "On" position, you will access the level 2 functions.
• Change-over switch (Fig. 1, pos. 7)
The change-over switch enables selection of battery 1 or 2. For the chosen battery, the voltage and current
are displayed on the screen (Fig. 1, pos. 4, 5).
• Emergency start button (Fig. 1, pos. 12, 13)
This button allows you to manually start the diesel motor with the corresponding battery and without
intervention of the control.
• "PRE-HEATING ON/OFF" (Fig. 2, pos. 17)
The heating ensuring a constant temperature of the motor oil turns on automatically as soon as the system is
powered up. This button enables the heating to be switched off and restarted (Level of access 2 required).
Once the heating is switched off, this malfunction is signalled by a red LED (Fig. 2, pos. 8) and a buzzer
signal.
• "BUZZER OFF" (Fig. 2, pos. 18)
This button allows an audible signal emitted in case of alarm to be cleared separately (level of access 1
required). As soon as a new malfunction arises, the buzzer signal sounds once again.
WILO SE 11/2016

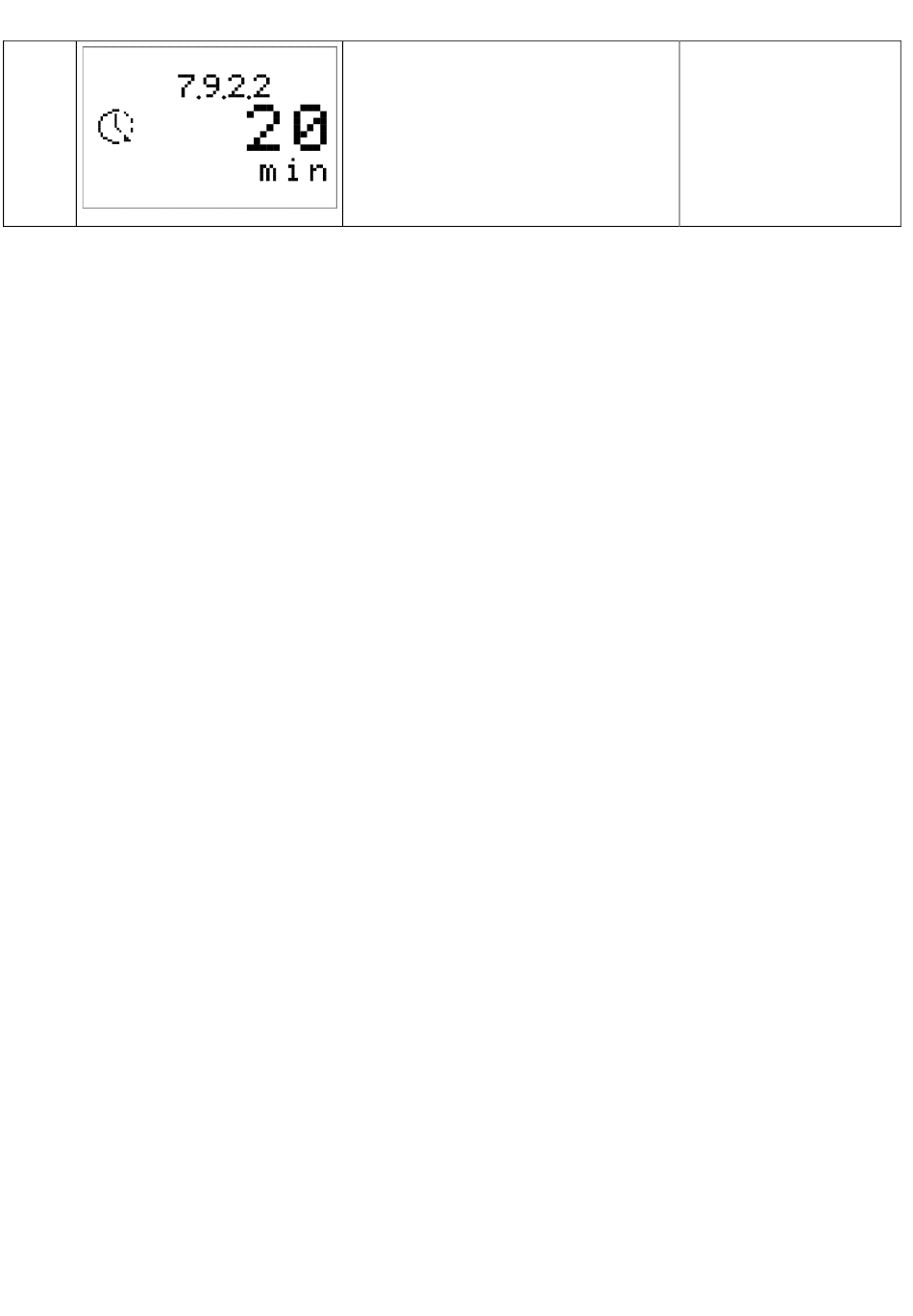

Adjust the time in minutes for the
automatic stop of the pump.
English
1...20
