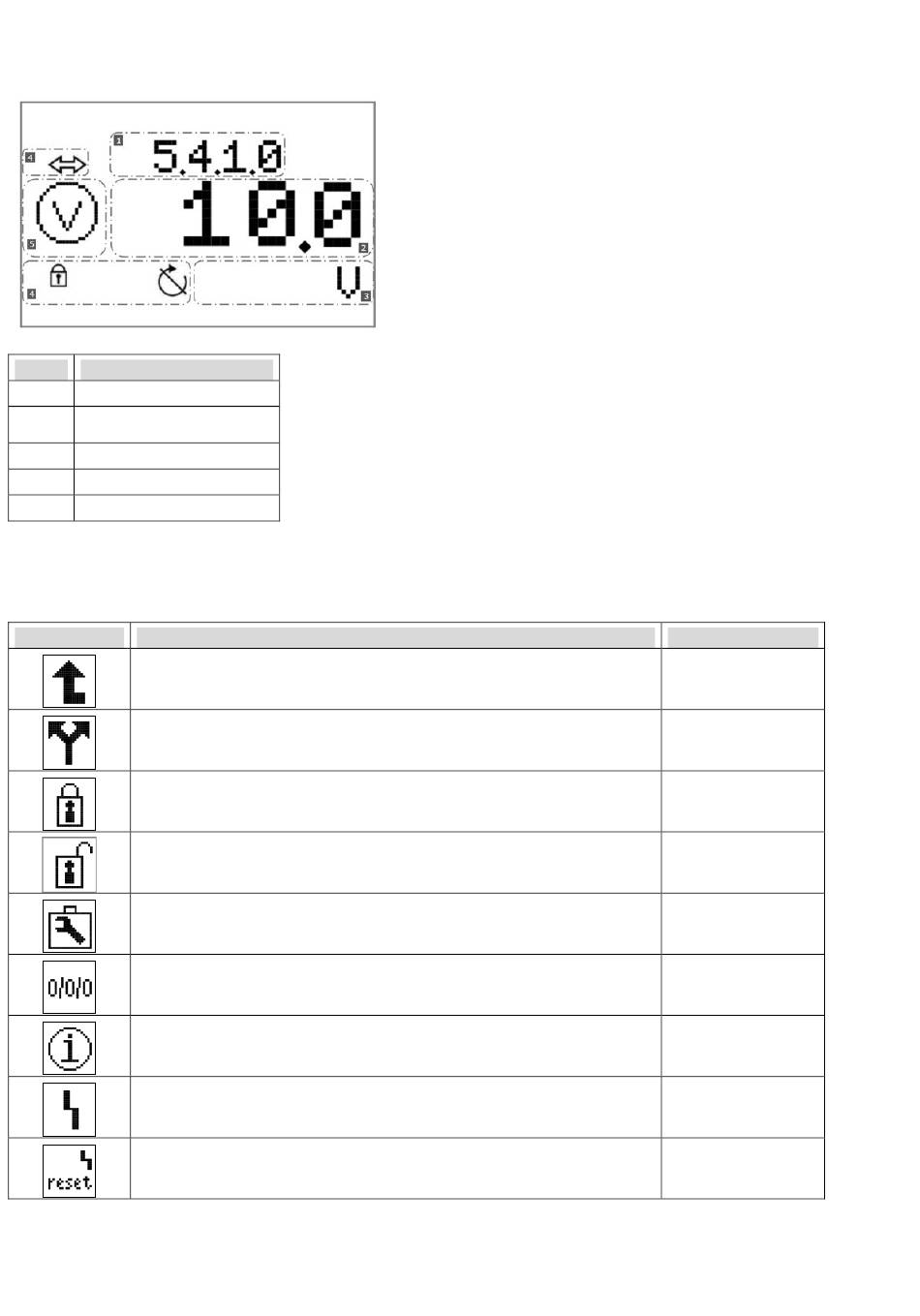

The information display is performed on the screen according to the following model:
Pos. Description
1 Menu number
2 Value display (text)
3 Unit display (text)
4 Standard symbols
5 Graphic symbols
The following graphic symbols are used:
Symbol Function/description
Return (brief press: a menu level; long press: main screen)
EXPERT menu
1. Notification: not connected
2. Notification: display value – no entry possible
Active/unlocked
Service menu
Parameters
Information
Malfunction
Reset malfunction
