VNA Tool Bar
Note: There is an addendum, with additional options, to
the menu bar when the PC Tool is reading a VNA file.
Note: This section does not apply to PC and Rack Mount
SignalHawks.
Match
Sets the current trace to a Match measurement display.
Distance to Fault
Sets the current trace to a Distance to Fault display.
Cable
Sets the current trace to a Cable Loss display.
Smith
Sets the current trace to display a Smith Chart.
Options Dialog Box
Opens the pop up Option Dialog box. "Options Dialog Box
(View>Options)" on page 76.
DTF Wizard
Opens the Distance to Fault Wizard.

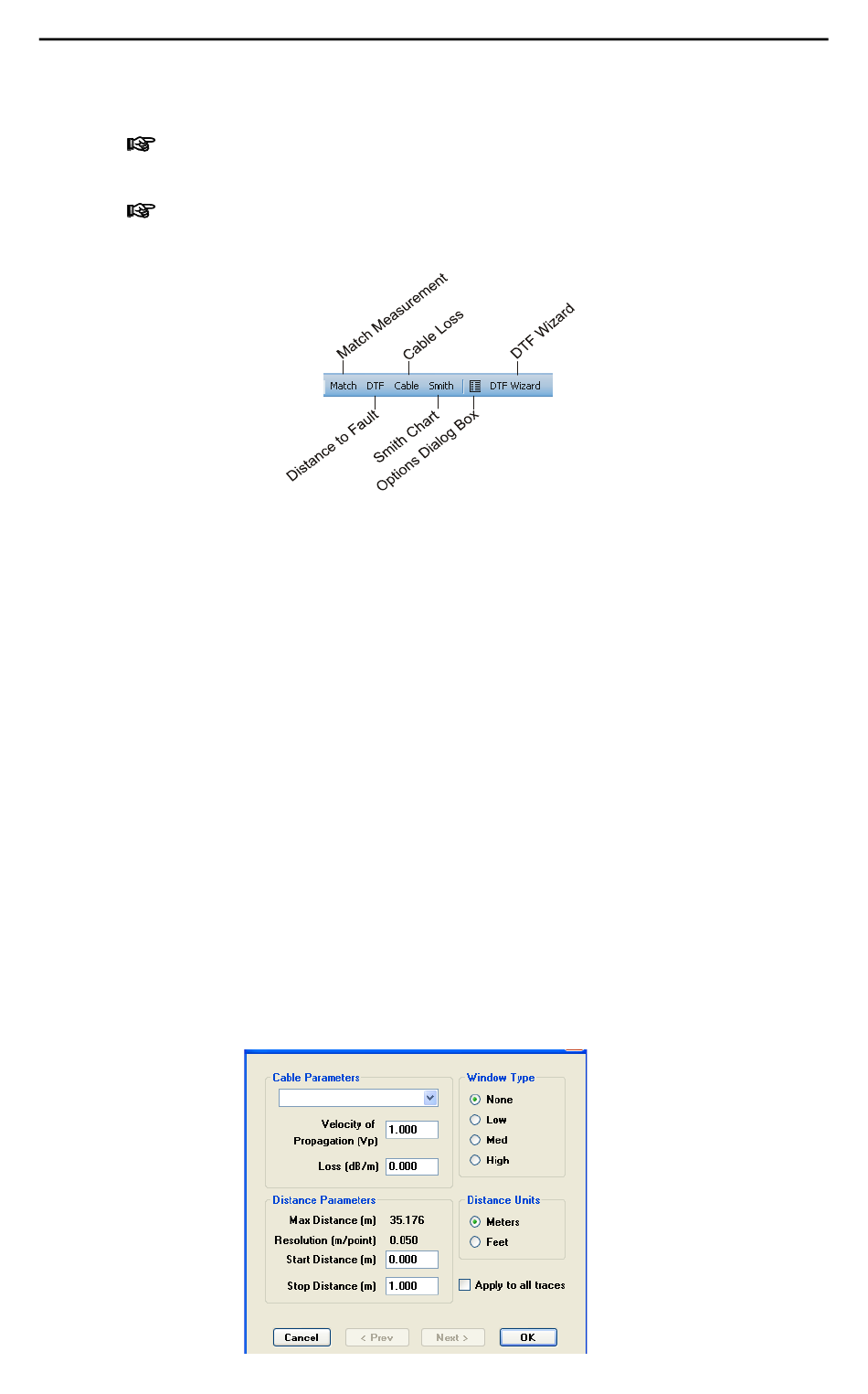

Figure 53
DTF Wizard
PC Tool
75
