- Page 1 Instruction Manual 16 oz. Pop & Self-Serve Model No. 1617E 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA © 2019 Gold Medal Products Co. Part No. 16225...
-
Page 2: Table Of Contents
16 oz. Pop & Self-Serve Model No. 1617E Table of Contents SAFETY PRECAUTIONS ..........................3 INSTALLATION INSTRUCTIONS ......................5 Inspection of Shipment ..............................5 Manual ....................................5 Model Description ................................5 Items Included with this Unit..........................5 Setup ....................................6 Electrical Requirements ............................7 Before You Plug In Machine .............................7 OPERATING INSTRUCTIONS ........................ -
Page 3: Safety Precautions
Read and understand operator’s manual and all other safety instructions before using this equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862 022_060215 gmpopcorn.com... - Page 4 007_010914 Note: Improvements are always being made to Gold Medal’s equipment. This information may not be the latest available for your purposes. It is critical that you call Gold Medal’s Technical Service Department at 1-800-543-0862 for any questions about your machine operations, replacement parts, or any service questions.
-
Page 5: Installation Instructions

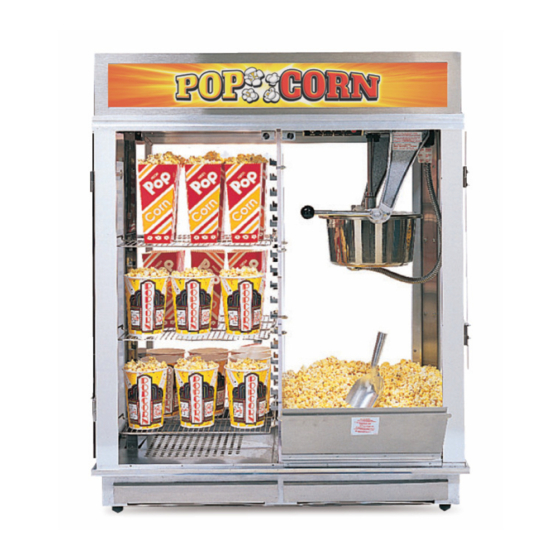

Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862. Model Description 1617E: Countertop Model - 16 oz. Popper with electronic temperature control, stainless steel dome; unit is oil ready (has provisions for attaching an oil dispense unit), oil unit sold separately. -
Page 6: Setup
16 oz. Pop & Self-Serve Model No. 1617E Setup This unit has been tested at the factory. 1. Remove all packaging and tape prior to operation. 2. Place the unit on a sturdy, level surface. 3. The Popper blower vents out the top of unit, allow adequate clearance for airflow. -
Page 7: Electrical Requirements
We recommend this equipment be on a dedicated and protected circuit. Failure to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of extension cords is not recommended due to safety concerns, and may cause sacrificed and/or reduced performance. -
Page 8: Operating Instructions
16 oz. Pop & Self-Serve Model No. 1617E OPERATING INSTRUCTIONS Controls and Their Functions LIGHTS SWITCH Two position, ON/OFF lighted rocker switch - supplies power to the popcorn sign and interior cabinet lights. The green switch light ON indicates there is power to the lights. - Page 9 16 oz. Pop & Self-Serve Model No. 1617E OIL DISPENSE PUSH BUTTON (PB) SWITCH & OIL LIGHT Red Push Button Switch - dispenses a predetermined amount of oil into the kettle when pressed. The Oil System Master Switch must be ON for the Oil Dispense PB Switch to activate (reference the Instruction Manual for the oil dispense unit).
-
Page 10: Popping Corn Instructions
4. When the light and beeper come on again, gently dump the kettle. Note: The signal “To Dump” was factory set based on Gold Medal popcorn and oil. If, after 3 consecutive batches, the signal occurs before or after popping has stopped, then the signal timing can be adjusted by a qualified service person (reference Electronic Temperature Control section). -
Page 11: Care And Cleaning
Watchdog Stainless Cleaner (Item No. 2088). DO NOT use oven cleaners or abrasive materials as they will damage the kettle. 3. Mix 2 tablespoons (29.6 ml) of Gold Medal’s Heat’n Kleen (Item No. 2095) in 1 gallon (3.8 L) of water. - Page 12 8. Clean glass panels and divider with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No. 2588) is recommended. Ammonia cleaners will damage plastic doors/panels. Only use a non-ammonia cleaner, such as Gold Medal Watchdog Glass Cleaner (Item No.
- Page 13 16 oz. Pop & Self-Serve Model No. 1617E Sanitizing the Oil System (Tubing and Pump) Reference the Oil Dispense Unit manual for oil system cleaning instructions. Filter Cleaning Instructions The popcorn machine is equipped with an efficient and durable filtration system. The filter should be cleaned every 1-2 weeks to maintain maximum efficiency.
- Page 14 16 oz. Pop & Self-Serve Model No. 1617E Clean the Crisper/Blower Compartment The blower compartment MUST be inspected/cleaned every 3-4 months by Qualified Service Personnel to maintain proper operation. 1. Turn machine OFF, unplug unit and allow it to cool before attempting to clean.
-
Page 15: Troubleshooting
16 oz. Pop & Self-Serve Model No. 1617E Troubleshooting Issue Possible Cause Solution No Power to the Unit A. No Power to the Unit A. Make sure the unit’s power cord is plugged in. B. Mini Circuit Breaker(s) on B. Mini Circuit Breaker(s) supplies power to all popper tripped unit features. - Page 16 16 oz. Pop & Self-Serve Model No. 1617E Issue Possible Cause Solution Long Popping Cycles A. Low Voltage A. If the machine is operated on low voltage, this (Longer than 4 minutes for could cause the kettle not to reach the proper Salt Popcorn;...
-
Page 17: Agitator Set Collar Adjustment
16 oz. Pop & Self-Serve Model No. 1617E Agitator Set Collar Adjustment The following instructions describe how to properly adjust set collars on an agitator assembly with a fixed stir rod. Steps to Adjust Set Collars on Agitator with a Fixed Stir Rod Agitator assembly is adjusted while fastened to the kettle (image shown for general reference only). -
Page 18: Maintenance Instructions
16 oz. Pop & Self-Serve Model No. 1617E MAINTENANCE INSTRUCTIONS DANGER Machine must be properly grounded to prevent electrical shock to personnel. Failure to do so could result in serious injury, or death. DO NOT immerse any part of this equipment in water. -
Page 19: Electronic Temperature Control (Domestic)
16 oz. Pop & Self-Serve Model No. 1617E Electronic Temperature Control (Domestic) Operation The temperature control is factory set to stop the power to the kettle when the thermocouple reaches set point. This is also the ideal point to dump the popped corn out of the kettle. On the first start-up, this is the ideal time to load the corn and oil. - Page 20 Check the terminal blocks for a loose connection, and check the kettle wiring for a loose or broken thermocouple. For more in-depth Temperature Control Board troubleshooting, for Qualified Service Personnel ONLY, please reference Gold Medal Service Bulletin 0074. gmpopcorn.com Page 20...
-
Page 21: Ordering Spare Parts
4. Please include your model number, serial number, and date of manufacture (located on the machine nameplate/data plate) with your order. 5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700 Medallion Drive, Cincinnati, Ohio 45241-4807 or place orders by phone or online:... -
Page 22: Replacing Broken Glass
Model No. 1617E Replacing Broken Glass Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be obtained from a local glass shop, always purchase tempered glass. GLASS DIMENSIONS (Height x Width x Thickness) Front Glass: 32 3/16”... -
Page 23: 16 Oz. Kettle Assembly (55166E) - Agitator Assembly View
16 oz. Pop & Self-Serve Model No. 1617E 16 oz. Kettle Assembly (55166E) – Agitator Assembly View 551 66 Ov erall Ke tt le 551 66 E Ag. Assy. 551 99 E Ex p. V iews Complete Agitator Assembly (Includes Lids) -
Page 24: 16 Oz. Kettle Assembly (55166E) - Kettle Bottom Parts Breakdown
16 oz. Pop & Self-Serve Model No. 1617E 16 oz. Kettle Assembly (55166E) – Kettle Bottom Parts Breakdown 551 99 E Ket tle Elem e nt 551 99 E Ket tle Bo tt om Assy. 551 99 E ex p. views... - Page 25 16 oz. Pop & Self-Serve Model No. 1617E 16 oz. Kettle Assembly (55166E) – Kettle Bottom Parts List Part Number Item Part Description 55166E 16OZ KETTLE BOTTOM ASSY (Complete Assy.) 55201 HEAT TRANSFER PLATE (beneath heat element) 67890 KETTLE GASKET...
-
Page 26: Cabinet View - Parts Breakdown
25, 26, 27 Sliding Door Assembly (Right) *CAUTION: If supply cord is damaged, it must be replaced by Gold Medal Products Co., its service agent, or General image shown for similarly qualified persons in order to avoid a hazard. parts reference only. - Page 27 16 oz. Pop & Self-Serve Model No. 1617E Cabinet View – Parts List Part Number Item Part Description 1617E 5 HOLE SWITCH BOX 17450 AMBER 125V PILOT LIGHT 55039 ROCKER SWITCH LABEL 48542 LIGHTED ROCKER SWITCH 42798 ROCKER, PUSH BUTTON BOX...
-
Page 28: Door Hardware Kits - Individual Component Breakdown
16 oz. Pop & Self-Serve Model No. 1617E Door Hardware Kits – Individual Component Breakdown Complete Right Hand Door Complete Left Hand Door Hardware Kit (P/N 47054) Hardware Kit (P/N 47055) (contains all parts shown above) (contains all parts shown above) -
Page 29: Blower Compartment - Element View
16 oz. Pop & Self-Serve Model No. 1617E Blower Compartment – Element View 201 1 1, 2, 3 5, 6, 7 18, 19, 20 For Labels, see Safety Label section. 14, 15, 16, 9 5, 6, 7 General image shown for parts reference only. -
Page 30: Dome - Parts
16 oz. Pop & Self-Serve Model No. 1617E Dome – Parts Dome parts are listed in table below (image not shown). Part Number Item Part Description 1617E DOME ASSY COMPLETE (includes parts listed 16244 below) INSPECTION COVER 16073 DOME WELD ASSY... -
Page 31: Accessories
16 oz. Pop & Self-Serve Model No. 1617E Accessories Item Part Description Part Number STAMPED ALUM SCOOP 2071 MEASURE 20 CC 47680 MEASURE 6 OZ 49049 16OZ CORN MEASURE W/HANDL 68050 RECPT POWER SUPPLY 47211 RECEPTACLE COVER 47377 gmpopcorn.com Page 31... -
Page 32: Wiring Diagram
16 oz. Pop & Self-Serve Model No. 1617E Wiring Diagram Model No. 1617E gmpopcorn.com Page 32... -
Page 33: Warranty
© 2019 – The text, descriptions, graphics, layout, and other material in this publication are the exclusive property of Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website display, without its express written consent.
