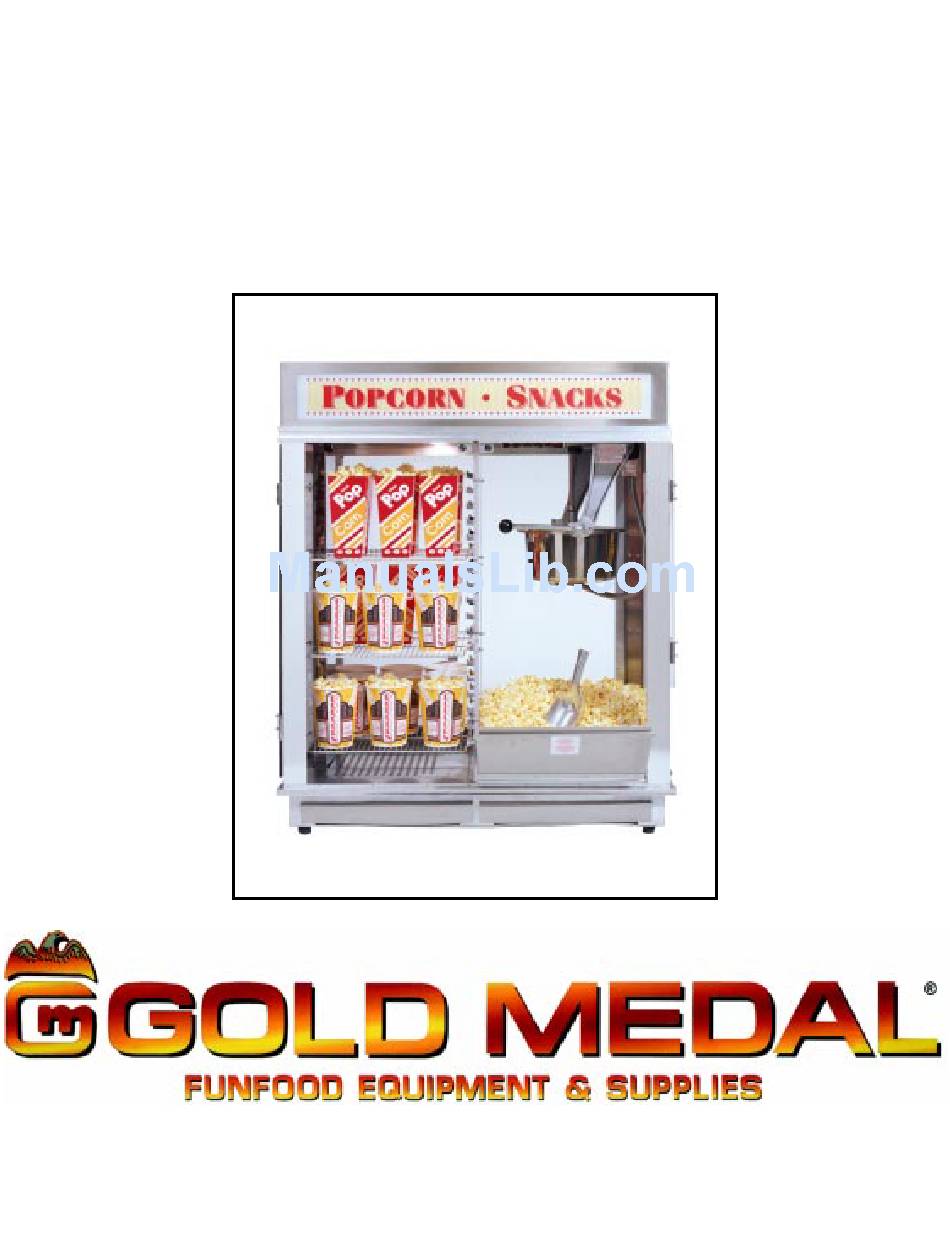

- Page 1 16 Oz. Pop Part No. 16225 Revised February 1997 & Self-Serve Warmer Popcorn Machine Instruction Manual Model #1617 Cincinnati, OH 45241-4807 USA...
-
Page 2: Safety Precautions
Always unplug the equipment before cleaning or servicing. NOTE The information, specifications and illustrations contained in this manual represent the latest data available at time of publication. Right is reserved to make changes as required at the discretion of Gold Medal Products Company without notice. -
Page 3: Electrical Requirements
16 Oz. Pop & Self-Serve Warmer INTRODUCTION Your new #1617 Pop & Self-Serve Warmer is shipped completely assembled, ready to operate. After removing the corrugated carton from the machine, check thoroughly for any damage which may have occurred in transit. Claims should be filed immediately with the transportation company. -
Page 4: Popping Instructions
NEVER USE ABRASIVES on the aluminum framework. The glass should always be clean and sparkling. Remember the inside of the glass must be cleaned too. Empty the old maid drawer and wipe clean. Remove bottom cabinet pans and clean out any stray debris. #1617 ODEL... -
Page 5: Maintenance Instructions
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. 4. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at:... -
Page 6: Cabinet Assembly
16 Oz. Pop & Self-Serve Warmer CABINET ASSEMBLY #1617 ODEL... -
Page 7: Parts List - Cabinet Assembly
16 Oz. Pop & Self-Serve Warmer PARTS LIST - CABINET ASSEMBLY Item No. Part No. Description Quantity 16060 Cabinet Assembly, #1617 16001 Top Frame 16064 Bottom Frame 16062 Divider Panel 16038 Drop Panel, R.H. 16055 Wire Shelf 16065 Corn Pan, R.H. - Page 8 Skirt (Optional Accessory, Standard on Model #1617TS) DOME ASSEMBLY 16061 Dome Assembly, Complete 16030 Main Wrapper 16073 Inspection Plate 61085 Neon Lower Case Script 16069 Front Wrapper Assembly 47242/47243 Support Angle 47726 Molded Plug 47244 Neon Sign, Block Letters #1617 ODEL...
-
Page 9: Kettle Assembly
16 Oz. Pop & Self-Serve Warmer KETTLE ASSEMBLY #1617 ODEL... -
Page 10: Parts List - Kettle Assembly
41245 Thermostat Hold Down 41318 Kettle Lead Assembly 49350 Conduit Caution Label DUMP KETTLE 2223 16 Oz. Steel Kettle Complete 41066 Agitator/Lid Assemby 41130 Front Kettle Lid 41326 16 Oz. Steel Kettle Bottom 41081 Shell Assembly, 16 Oz. #1617 ODEL... -
Page 11: Electrical Schematic
16 Oz. Pop & Self-Serve Warmer ELECTRICAL SCHEMATIC #1617 ODEL... -
Page 12: Warranty
WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
