SETUP INSTRUCTIONS (continued)
B: For Intex Round Frame Pools

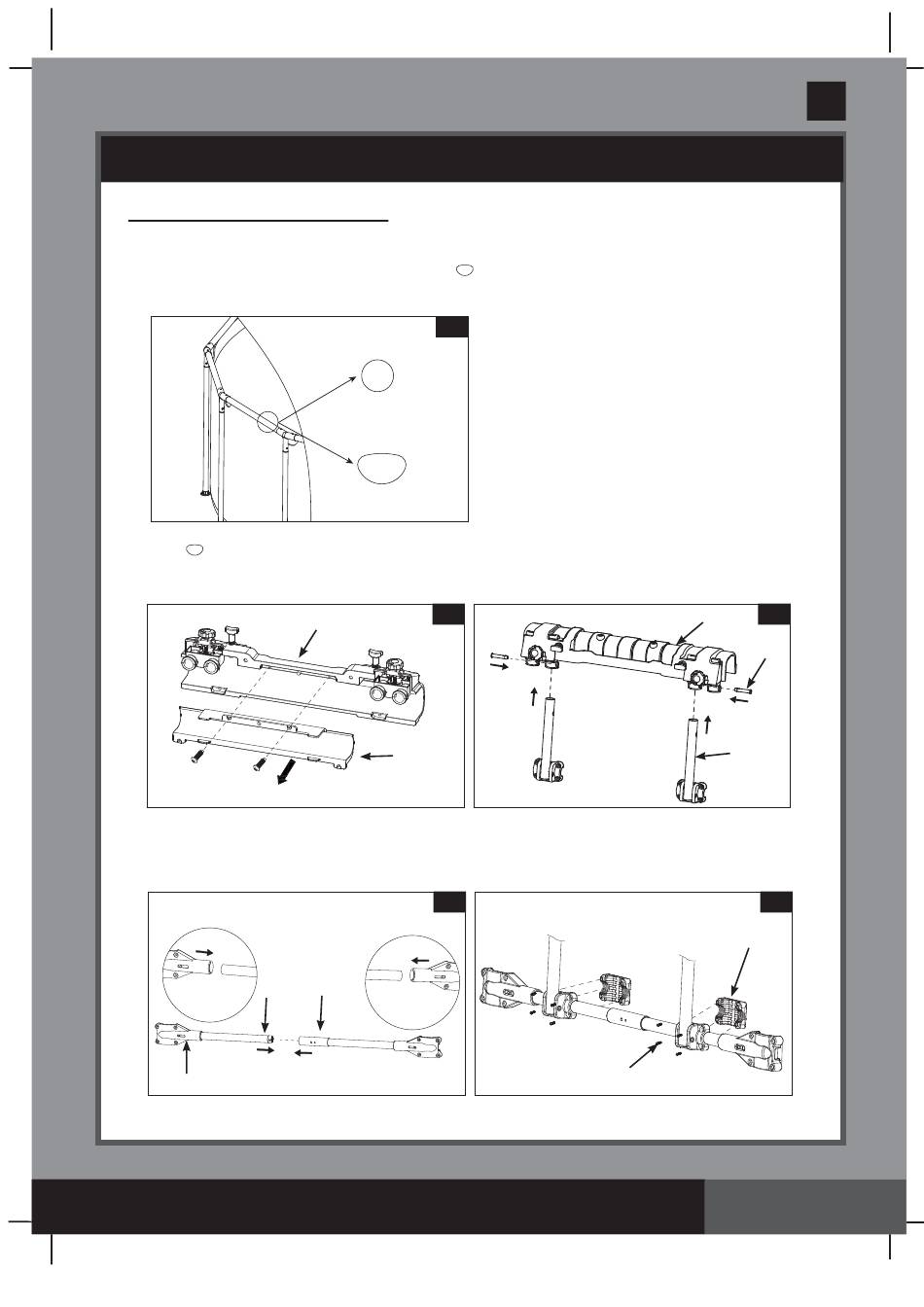

1. Mounting Bracket Assembly (see figures 4.1 to 4.5):
• Identify the frame pool pipe shape. For "
For "O" shape pipe see fi gure 4.3 to 4.5.
• For " " shape pipe, remove the bracket space fi ller (3) from the mounting bracket (2).
(see fi gure 4.2). For "O" shape pipe go to next step.
• Insert the bracket poles (6) into the mounting bracket (2) inner holes (see fi gure 4.3).
• Connect the horizontal pipe A (13) with horizontal pipe B (14) together, then attach
the horizontal pipe assembly to the mounting bracket assembly using the bracket
pole fi xer (7) and screws (8) (see fi gures 4.4 to 4.5).
