SETUP INSTRUCTIONS (continued)
• Lock the bracket poles and mounting bracket assembly onto the U-shaped side
support with the bracket pole fi xer (7) and screws (8), (see fi gure 2.2.).
NOTE: Make sure all the screws are securely tightened and the mounting bracket
top surface is level.

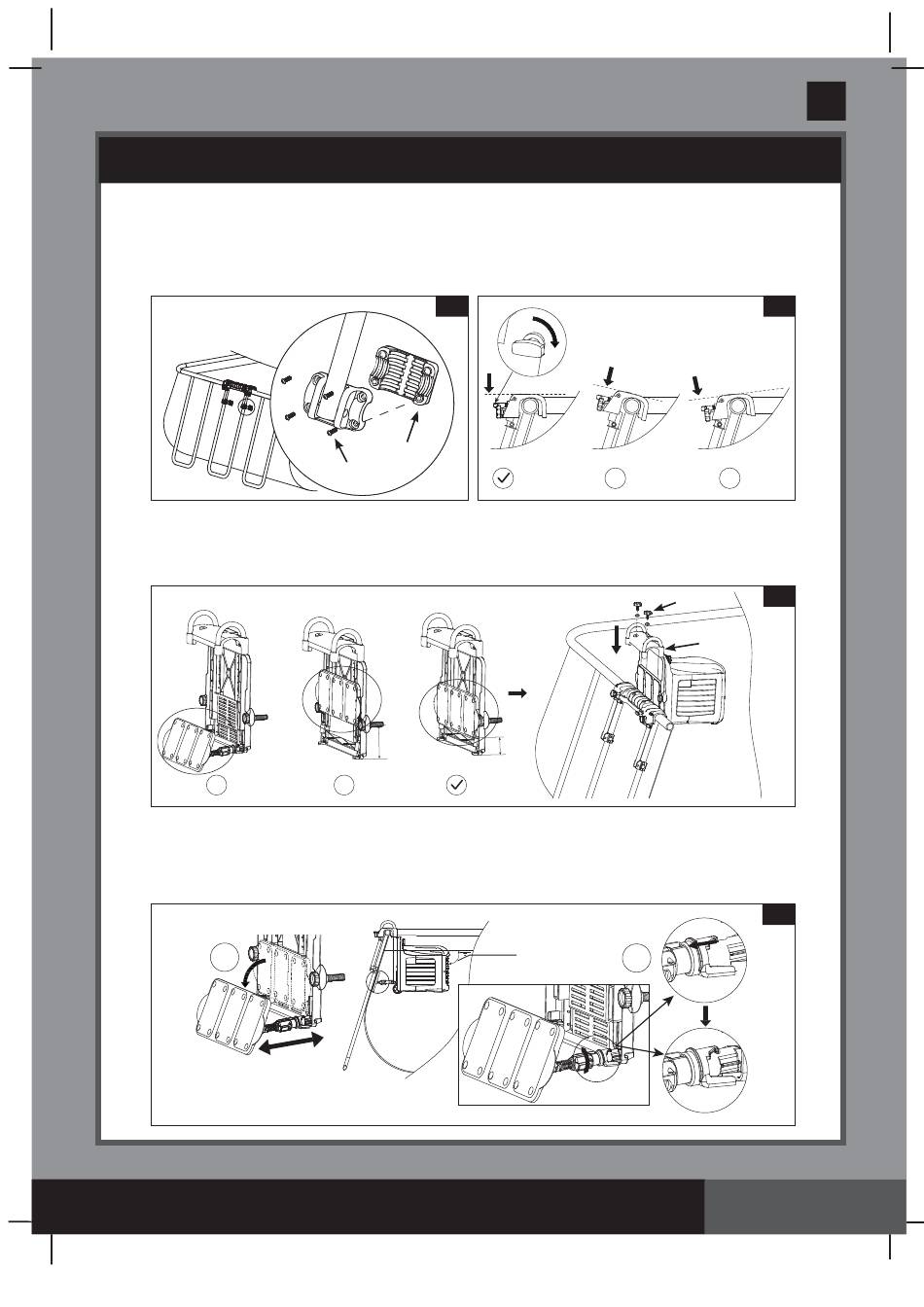

3. Swim-Trainer Unit Assembly (see fi gures 3.1 to 3.2).
• Be sure the swim-trainer unit "support bracket" is closed before installing
the swim-trainer unit onto the mounting bracket assembly (see figure 3.1).
X
• Extend the support plate, and adjust the depth by loosening the arm collar and
extending the support plate arm until the swim-trainer unit is perfectly
horizontal, retighten to lock it in place. NOTE: The support plate must rest against the
inside of the pool wall surface. (see fi gure 3.2).
1
SAVE THESE INSTRUCTIONS
(303IO) MODEL SM24100 SWIMMING MACHINE ENGLISH 7.5" X 10.3" PANTONE 295U 08/30/2018
2.2
7
8
MIN
X
Water level
X
4
2
90 Degree
English
303A
2.3
X
3.1
22
3.2
