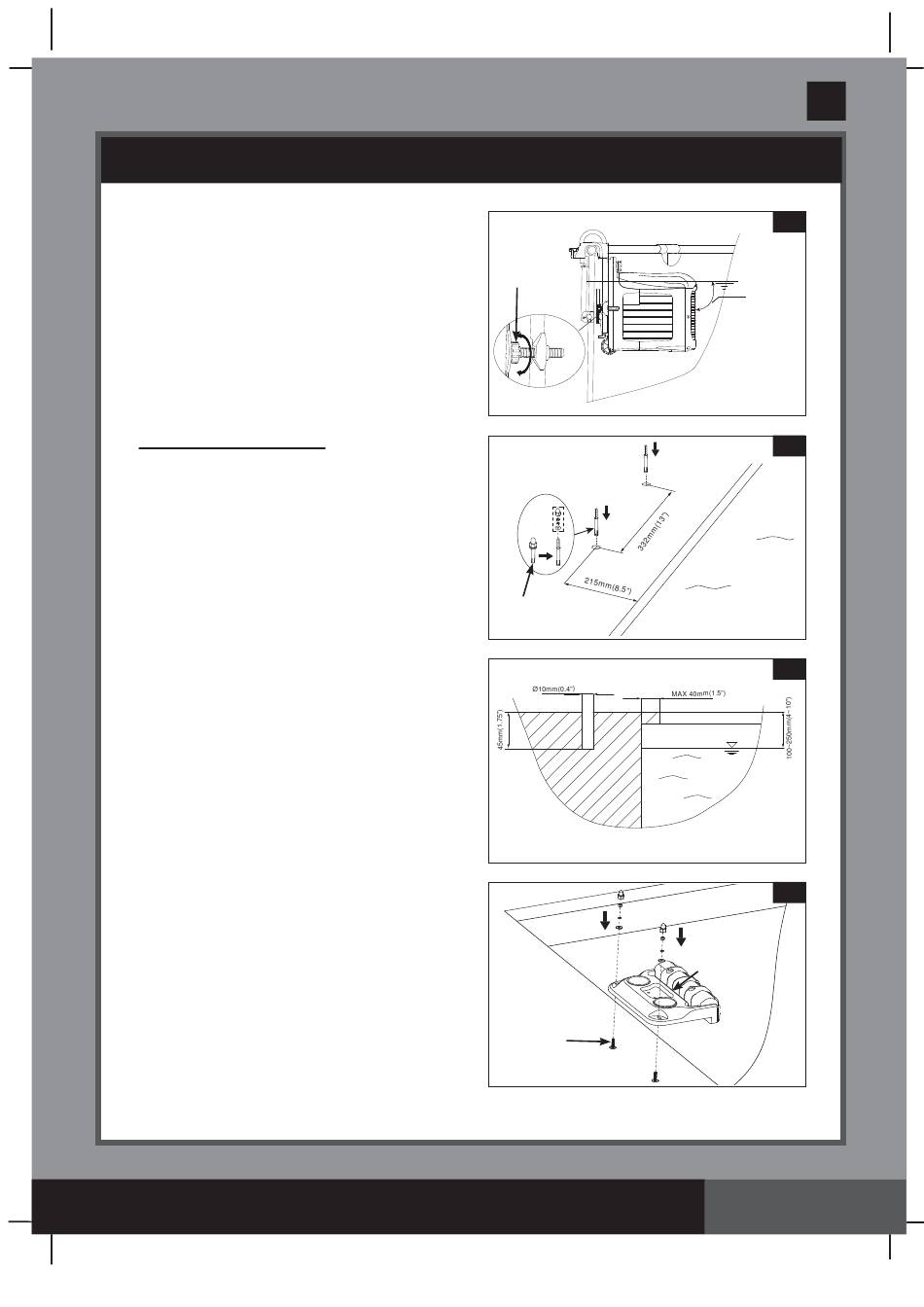

Intex Hydro Flow Swim Trainer SM24100 Owner's Manual page 11

SETUP INSTRUCTIONS (continued)
• Adjust the nut on the swimming machine
until the support plate is against the pool
wall and the swim-trainer unit is perfectly
horizontal (see figure 5.5).
C: For In Ground Pools
1. Mounting Bracket Assembly (see
figures 6.1 to 6.3):
• Make sure the top surface of the pool
edge is stable, flat and level.
• Pay attention to the electrical, gas and
water lines when drilling the holes.
• All screws provided must be used.
• Drill two holes [Ø10mm (13/32")] on the
center of the short-end side of the pool
edge where the mounting bracket will be
installed. Insert the in ground pool screws
(5) into the holes, and make sure the
screws are fully inserted (see figures 6.1
to 6.2).
• Place the in ground pool mounting bracket
(1) over the installed bolts (5), tighten
the nuts securely over the bolts and then
install a bolt cap over each nut to prevent
injury (see figure 6.3).
SAVE THESE INSTRUCTIONS
(303IO) MODEL SM24100 SWIMMING MACHINE ENGLISH 7.5" X 10.3" PANTONE 295U 08/30/2018
Ajustable nut
for adjusting the
distance
5
English
Water level
Water level
1
5
303A
5.5
90
Degree
6.1
6.2
6.3
Page 11
