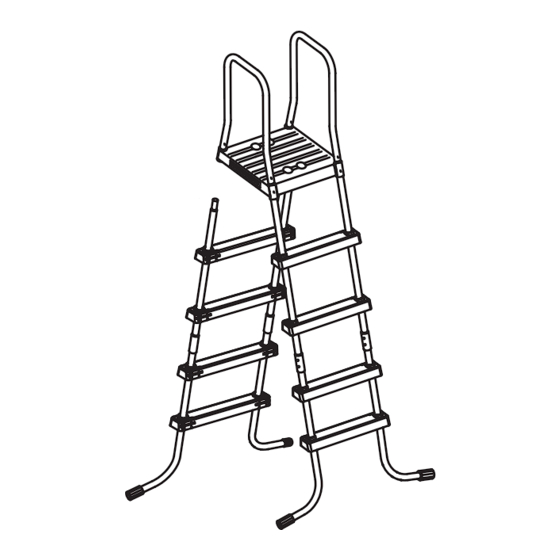

(331PO) 52" 2-SECTIONS POOL LADDER ENGLISH 4.875" X 7.25" PANTONE 295U 05/16/2020
Pool Ladder
Model: 52" (132 cm)
For illustrative purposes only.
Don't forget to try these other fine Intex products: Pools, Pool
Accessories, Inflatable Pools and In-Home Toys, Airbeds and
Boats available at fine retailers or visit our website.
Due to a policy of continuous product improvement, Intex reserves
the right to change specifications and appearance, which may
result in updates to the instruction manual, without notice.
DO NOT RETURN PRODUCT TO STORE
To purchase parts and accessories or to obtain non-technical assistance, visit
For technical assistance and missing parts call us toll-free (for U.S. and Canadian Residents):
Monday through Friday, 8:30am to 5:00pm Pacific Time
IMPORTANT
SAFETY RULES
Read, understand, and follow all
instructions carefully before installing
and using this product.
IMPORTANT!
www.intexcorp.com
1-800-234-6 839
331
English
PO
331-*PO-R0-2105
Advertisement
Related Manuals for Intex 52"
Summary of Contents for Intex 52"
- Page 1 Pool Ladder Model: 52” (132 cm) For illustrative purposes only. Don’t forget to try these other fine Intex products: Pools, Pool Accessories, Inflatable Pools and In-Home Toys, Airbeds and Boats available at fine retailers or visit our website. Due to a policy of continuous product improvement, Intex reserves the right to change specifications and appearance, which may result in updates to the instruction manual, without notice.
-
Page 2: Table Of Contents
(331PO) 52” 2-SECTIONS POOL LADDER ENGLISH 4.875” X 7.25” PANTONE 295U 05/16/2020 TABLE OF CONTENTS Warnings......................3 Parts References....................4 Setup Instructions....................5-8 General Aquatic Safety..................8 Limited Warranty....................9 S AVE THESE INSTRUCTIONS Page 2... -
Page 3: Warnings
(331PO) 52” 2-SECTIONS POOL LADDER ENGLISH 4.875” X 7.25” PANTONE 295U 05/16/2020 IMPORTANT SAFETY RULES Read, Understand and Follow All Instructions Carefully Before Installing and Using this Product. WARNING • Supervise children and those with disabilities at all times. • Always assist children when they use the ladder to avoid falls and/or serious injury. • Never dive or jump from this ladder. • Locate the ladder on a level, solid base. • One person on this ladder at a time. -
Page 4: Parts References
10227 10227 STEP 12629 12631 STEP ANCHOR SLEEVE 12630 12632 UPPER SIDE LEG (MARKED “A”) 12643AA 12645A UPPER SIDE LEG (MARKED “B”) 12643AB 12645B LOWER J-SHAPED SIDE LEG (MARKED “A”) 12644AA 12646A LOWER J-SHAPED SIDE LEG (MARKED “B”) 12644AB 12646B This ladder is designed and manufactured for Intex pool wall height: Item # Pool Wall Height 28067 (grey & white) 52" (132 cm) 12628 (white & blue) 52" (132 cm) IMPORTANT It is very important to lay out the parts correctly and identify which parts connect together before starting the assembly. Although some parts look alike, they are not always interchangeable. Refer to the parts list. S AVE THESE INSTRUCTIONS Page 4... -
Page 5: Setup Instructions
(331PO) 52” 2-SECTIONS POOL LADDER ENGLISH 4.875” X 7.25” PANTONE 295U 05/16/2020 LADDER SETUP TOOLS REQUIRED: One (1) Phillips screwdriver, one (1) small flat screwdriver O ne (1) pair of pliers or a small adjustable wrench WARNING INCORRECTLY CONNECTED PARTS MAY RESULT IN AN UNSTABLE LADDER OR LADDER FAILURE WHICH CAN CAUSE FALLING AND PERSONAL INJURY OR DEATH. 1. STEP INSTALLATION (refer to figures 1.1 through 1.3): IMPORTANT: Ensure the J-shaped legs are pointing outwards before installing the steps. S AVE THESE INSTRUCTIONS Page 5... - Page 6 (331PO) 52” 2-SECTIONS POOL LADDER ENGLISH 4.875” X 7.25” PANTONE 295U 05/16/2020 LADDER SETUP (continued) 2. UPPER SIDE LEG ASSEMBLY (refer to figure 2): Press, hold and insert Spring pin 3. TOP PLATFORM INSTALLATION – ONE SIDE AT A TIME (refer to figure 3): Identify hole “A” and hole “B” on the top platform (2), marked accordingly at each corner. Slide the top platform over the legs,making sure hole “A” of one corner of platform slides over leg “A” and hole “B” of the other corner of platform over leg “B”. The small holeson the side...
- Page 7 (331PO) 52” 2-SECTIONS POOL LADDER ENGLISH 4.875” X 7.25” PANTONE 295U 05/16/2020 LADDER SETUP (continued) 5. INSTALLATION OF THE REMAINING LADDER SIDE (refer to figure 5): With all the top rail and top platform holes in alignment, slide the remaining ladder side from the underside into its proper position. Make sure the “A” leg slides into hole “A” of the top platform and the “B” leg slides into hole “B” of the corresponding top platform. Fasten all parts using the appropriate fasteners/screws (4) and (3), as described earlier. 6. BEFORE USE OF LADDER: With all parts now in place, verify that all fasteners/screws are fully tightened and apply downward pressure to each step to be sure they are fully anchored in place. Place the ladder over the side wall of your pool, with one side of the ladder located inside the pool and the other side outside of the pool - see figure 6.
-
Page 8: General Aquatic Safety
(331PO) 52” 2-SECTIONS POOL LADDER ENGLISH 4.875” X 7.25” PANTONE 295U 05/16/2020 LADDER SETUP ( continued) 7. MAINTENANCE: Regularly check all nuts, bolts, steps and step anchor sleeves to ensure all parts are secured properly and the ladder is sturdy. Bring the ladder indoors and store in a safe and dry area, preferably between 32 degrees Fahrenheit (0 degrees Celsius) and 104 degrees Fahrenheit (40 degrees Celsius). 8. STEP DISASSEMBLY: GENERAL AQUATIC SAFETY Water recreation is both fun and therapeutic. However, it involves inherent risks of injury and death. -
Page 9: Limited Warranty
(331PO) 52” 2-SECTIONS POOL LADDER ENGLISH 4.875” X 7.25” PANTONE 295U 05/16/2020 LIMITED WARRANTY Your Intex Pool Ladder has been manufactured using the highest quality materials and workmanship. All Intex products have been inspected and found free of defects prior to leaving the factory. This Limited Warranty applies to the Intex Pool Ladder only. The provisions of this Limited Warranty apply only to the original purchaser and is not transferable. This Limited Warranty is valid for a period of 1 year from the date of the initial retail purchase. Keep your original sales receipt with this manual, as proof of purchase will be required and must accompany warranty claims or the Limited Warranty is invalid. If a manufacturing defect is found within this 1 year period, please contact the appropriate Intex Service Center listed in the separate “Authorized Service Centers” sheet. The Service Center will determine the validity of the claim. If the Service Center directs you to return the product, please carefully package the product and send with shipping and insurance prepaid to the Service Center. Upon receipt of the returned product, the Intex Service Center will inspect the item and determine the validity of the claim. If the provisions of this warranty cover the item, the item will be repaired or replaced at no charge. Any and all disputes regarding the provisions of this Limited Warranty shall be brought before an informal dispute settlement board and unless and until the provisions of these paragraphs are carried forth, no civil action may be instituted. The methods and procedures of this settlement board shall be subject to the rules and regulations set forth by the Federal Trade Commission (F.T.C.). IMPLIED WARRANTIES ARE LIMITED TO THE TERMS OF THIS WARRANTY AND IN NO EVENT SHALL INTEX, THEIR AUTHORIZED AGENTS OR EMPLOYEES BE LIABLE TO THE BUYER OR ANY OTHER PARTY FOR DIRECT OR CONSEQUENTIAL DAMAGES OR LIABILITIES. Some states, or jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
