6.2.2 Application of the switchgear
Operation elements
Levels of access
• The level of access 1 allows access to the function test of the lamp (Fig. 2, pos. 2) without intervention in
addition.
• The level of access 2 is performed using a key switch (Fig. 1, pos. 7) and enables access to the reset
function in the event of error messages (Fig. 2, pos. 4).
• The level of access 3 is performed using a ciphered code encoded in the menu 7.0.0.0, enabling access to all
menu items.
Functions and application elements
• Main switch On/Off (lockable in "Off" position) (Fig. 1, pos. 7)
•

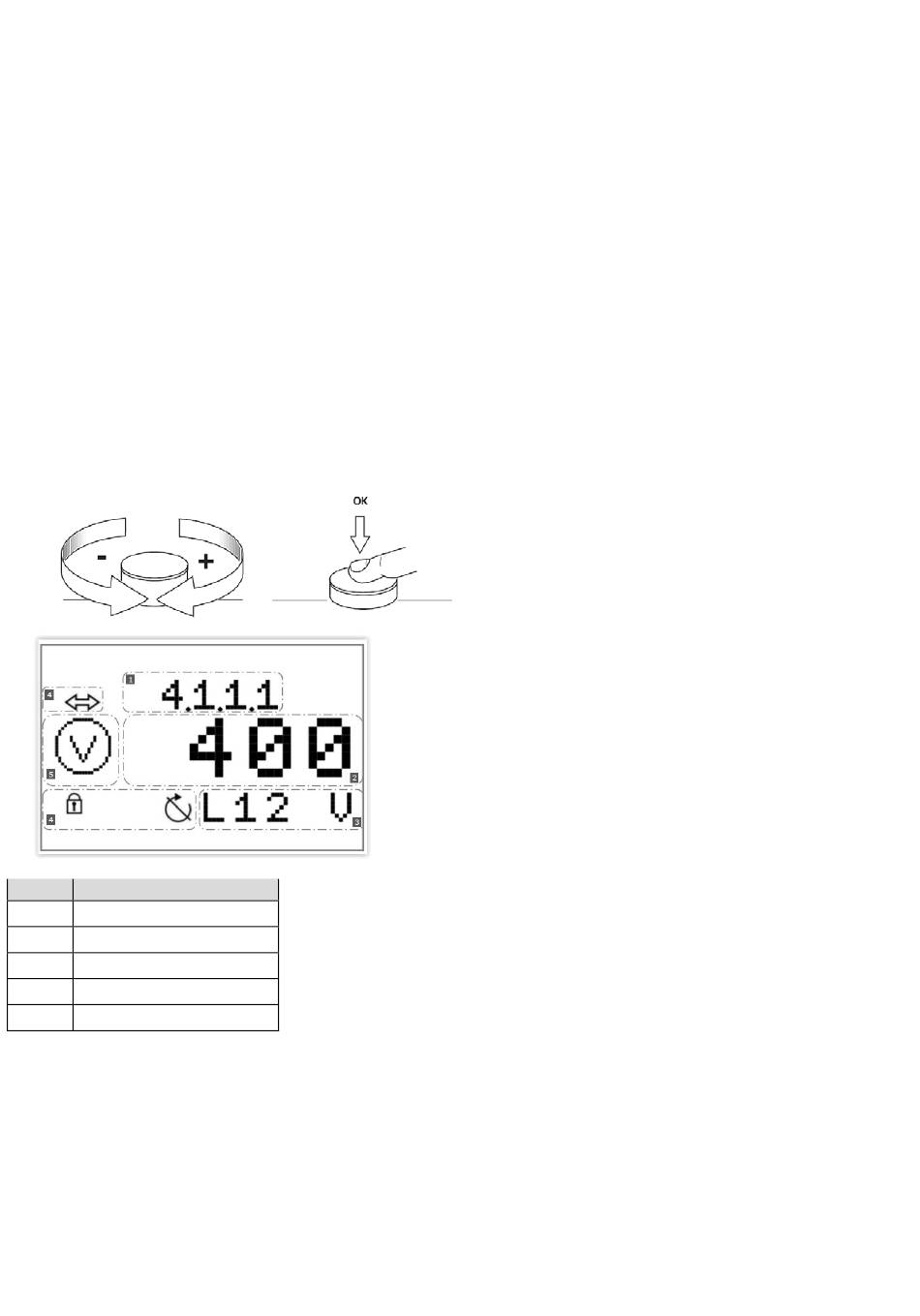

LCD screen (Fig. 1, pos. 2) The LCD screen displays the pump operating status and the settings menu.
Thanks to the control button (Fig. 1, pos. 3) you can select the menus and enter the parameters (level 3
access required). To alter the values and scroll through the menu levels, turn the function. To select and
confirm your input, press the button:
Pos. Description
1 Menu number
2 Value display
3 Unit display
4 Standard symbols
5 Graphic symbols
