SC-F6300 Series
Operator's Guide

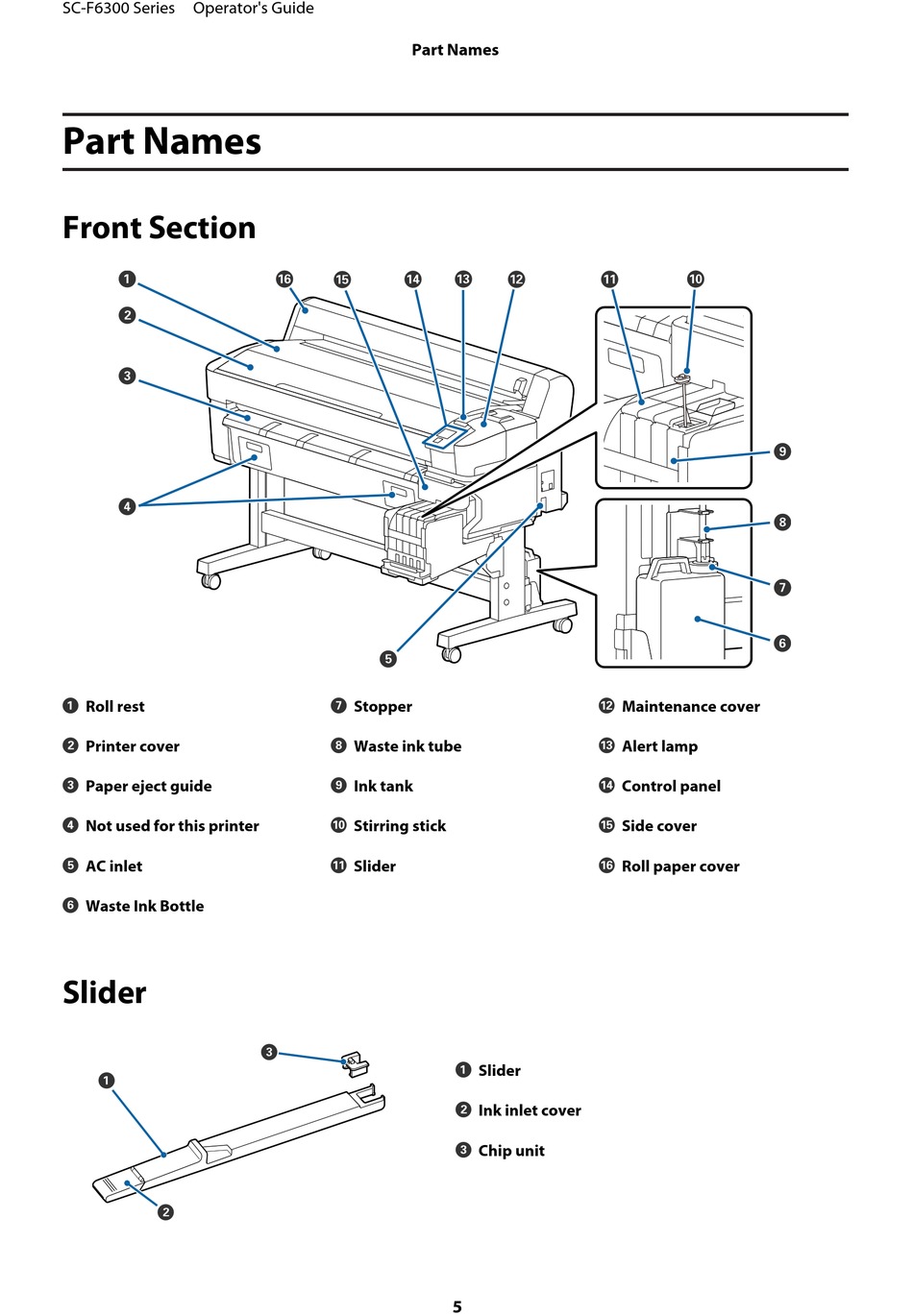

Part Names

Front Section

A
Roll rest
B
Printer cover
C
Paper eject guide
D
Not used for this printer
E
AC inlet
F
Waste Ink Bottle

Slider

Part Names
G
Stopper
H
Waste ink tube
I
Ink tank
J
Stirring stick
K
Slider
A
Slider
B
Ink inlet cover
C
Chip unit
5
L
Maintenance cover
M
Alert lamp
N
Control panel
O
Side cover
P
Roll paper cover
