Product Features

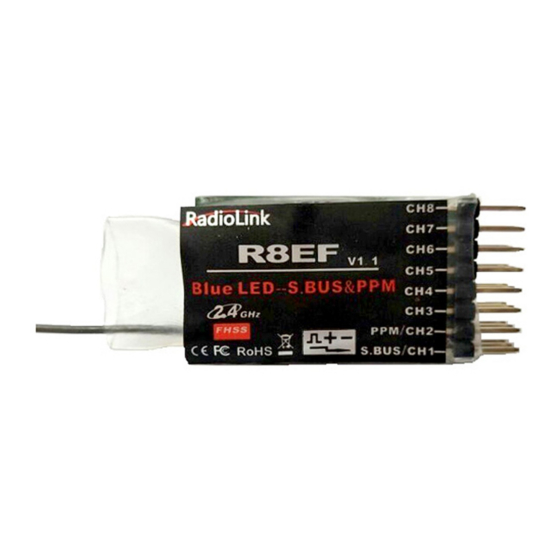

Radiolink R8EF, 2.4G 8 channels receiver, S-BUS , PPM and PWM signal support, use for Radiolink transmitter

T8FB.

Two signal working mode:

1.PWM signal output working mode：

Red LED indicates PWM signal output, 8 channels Totally.

2.S-BUS&PPM signal output working mode:

Blue/purple LED indicates SBUS&PPM signal output, 8 channels totally. SBUS and PWM signal possible working at

the same time with S-BUS&PPM signal output working mode.

CH1 output S-BUS signal, CH2 output PPM signal, CH3 to CH8 output PWM signal at the same time.

Table of Contents

Do you have a question about the R8EF and is the answer not in the manual?

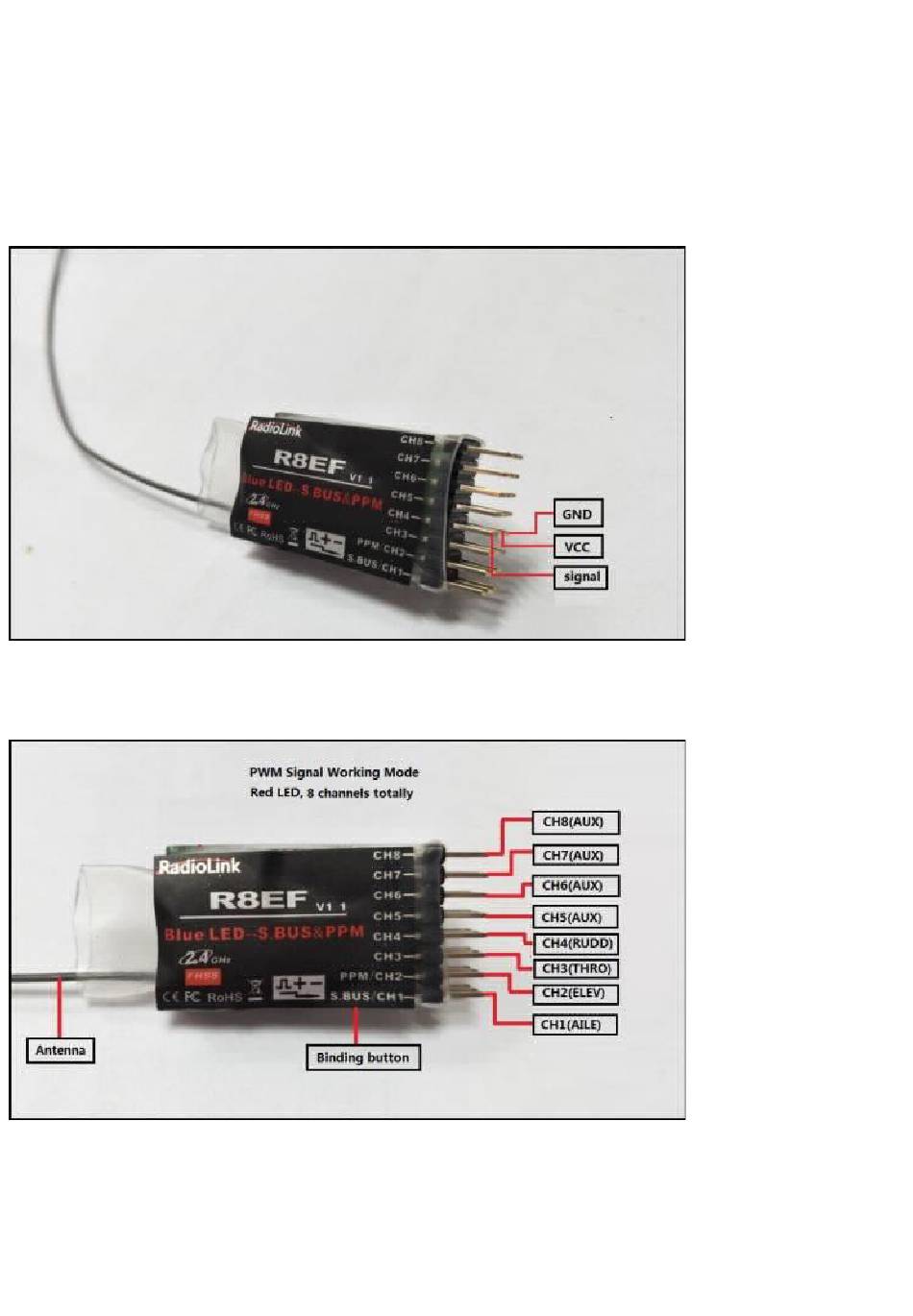

Page 1 Product Features Radiolink R8EF, 2.4G 8 channels receiver, S-BUS , PPM and PWM signal support, use for Radiolink transmitter T8FB. Two signal working mode: 1.PWM signal output working mode： Red LED indicates PWM signal output, 8 channels Totally. 2.S-BUS&PPM signal output working mode: Blue/purple LED indicates SBUS&PPM signal output, 8 channels totally.
