Shenzhen Ledi Electronics Co., Ltd.
www.radiolink.com
R8E
(FHSS)
Instructions
Ledi Electronics 8-channel S-BUS&PPM&PWM receiver
(Applicable to Radiodyne transmitter T8FB/T8S)
Shenzhen Ledi Electronics Co., Ltd.
www.radiolink.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for RadioLink Ledi R8E
Summary of Contents for RadioLink Ledi R8E
- Page 1 Translated from Chinese (Simplified) to English - www.onlinedoctranslator.com Shenzhen Ledi Electronics Co., Ltd. www.radiolink.com (FHSS) Instructions Ledi Electronics 8-channel S-BUS&PPM&PWM receiver (Applicable to Radiodyne transmitter T8FB/T8S) Shenzhen Ledi Electronics Co., Ltd. www.radiolink.com...
- Page 2 Shenzhen Ledi Electronics Co., Ltd. www.radiolink.com Order record Introduction..................................1 After-sales Service Terms..........................1 R8EF Basic Introduction..............................2 Applicable transmitter models..........................2 Signal Output Type..............................2 Signal Working Mode..............................2 Signal Switching..............................3 Code matching...................................3 Receiver Antenna Installation..........................4 Technical Parameters..............................4...
- Page 3 8. The above after-sales service terms are only applicable to Ledi products sold in mainland China. 9. For after-sales issues from customers in Hong Kong, Macau, Taiwan and overseas, please send them to after_service@radiolink.com.cn . Specific after-sales details will depend on the situation.

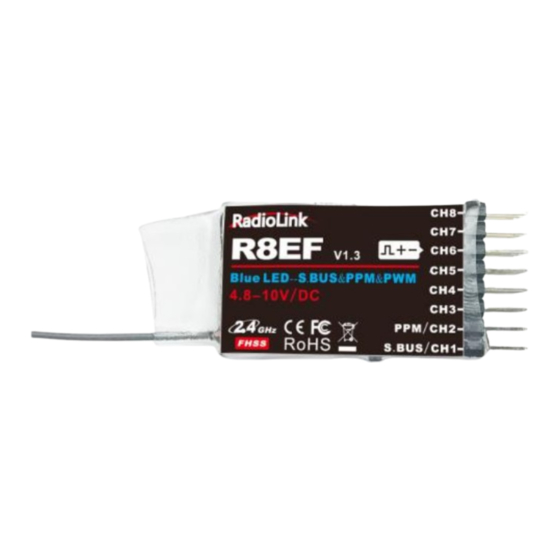

- Page 4 R8EF Introduction R8EF Basic Introduction Applicable transmitter models Radiolink R8EF 2.4G 8-channel receiver, suitable for Radiolink 8-channel remote controllers T8FB, T8S, RC6GS V2, RC4GS V2, supports S-BUS, PPM and PWM signal output simultaneously. Signal output type Supports simultaneous output of SBUS, PPM and PWM signals.
- Page 5 Shenzhen Ledi Electronics Co., Ltd. www.radiolink.com Signal switching Short press the (ID SET) switch on the side of the receiver twice (within one second) to switch between the R8EF PWM signal and the SBUS or PPM signal. Code Each transmitter has a unique ID code. Before using the device, the receiver must be paired with the transmitter. Once paired, the ID code is stored in the receiver and does not need to be paired again.
- Page 6 Shenzhen Ledi Electronics Co., Ltd. www.radiolink.com Note: Radiodyne receivers are designed with an electronic anti-reverse plug-in function. When the servo cable is plugged in reverse, the receiver will not work, and it will not be damaged by the reverse connection of the Dupont cable.
