- Page 1 USER MANUAL ACT-7 Rev. 1.1 • 2019-W14-5...
-
Page 2: Table Of Contents
It is important to acknowledge the correct operating procedures for the air conditioner and all of its safety precautions. Dantherm accepts no liability with regards to loss of business or personal injury as a consequence of failing to abide by safety procedures. -
Page 3: Product Description

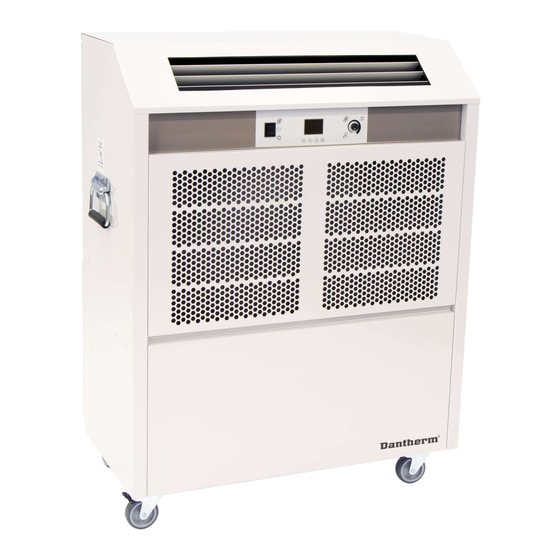

Product description: Overall description Product description Overall description Designated use The ACT-7 is a portable air conditioner intended for small-scale temporary cooling, and can be used in many different places such as rental companies, event organization, workshops and offices. ACT-7 system Description Illustration connection... - Page 4 Product description: Overall description Illustration (Heat exchanger) Front Rear Fig. 3 Pos . Description Pos . Description Support chain Drain pipe Carrying handle Water pipe coupling (IN) Electrical connection Water pipe coupling (OUT) Spacer Data sheet Specification Unit ACT-7 EU ACT-7 UK Cooling capacity (max) Power Supply...
-
Page 5: Installation
Installation: Location consideration Installation Location consideration Good and correct air flow is, perhaps, the single most important aspect of satisfactory use of Siting portable air conditioners. Some examples of how to place the room unit in the most common (Room unit) situations are illustrated in the table below. - Page 6 Installation: Location consideration The heat exchanger must be sited external to the area being cooled and, preferably outside. Siting (Heat exchanger) Consider especially the potential of dripping water when positioning the external heat ex- NOTICE changer and find a location, where debris can´t get into the air flow of the heat exhanger. The heat exchanger can stand freely on a flat surface or b.
-
Page 7: Handling And Set-Up
Installation: Handling and set-up Handling and set-up Handling Follow these instructions when handling the room unit: Risk of plate deformation, damaging unit and human injuries Warning CAUTION • Do NOT lift the room unit at the handle Caution • Use handle ONLY to push and drag the room unit •... -
Page 8: Illustration (Room Unit)
Installation: Handling and set-up Top up the tank with the correct anti- freeze (33%) and water mixture until the fluid level is between min. and max. level (check the level through the inspection window). Be aware not to mix different types of antifreeze, in order to protect the system properly. - Page 9 Installation: Handling and set-up Connect the pipes to the heat exhanger and b. room unit Pull the coupling of the female pipe adapter back in order to connect the pipes. Be prepared with an old cloth or alike to wipe the water/glycol mixture up, since it will spill a bit, when the pipes are connected.
-
Page 10: Dismantling
Installation: Dismantling Dismantling Disconnecting/ Follow the steps below in order to disconnect the ACT-7. turning off Failure to follow the procedure may result in excess water being retained in the system which may spill when the ACT-7 is moved. Step Action Illustration Switch to standby mode. -
Page 11: Operation
Operation: User interactions Operation User interactions General Check condition of the device before use. If device is showing signs of damage contact your recommendation supplier immediately. Operation without connected heat exchanger provokes an HP failure Warning CAUTION and can damage the recirculation pump If the ACT-7 room unit is operated in air conditioning mode while the heat exchanger is disconnected, the room unit will enter a high pressure state Caution... -
Page 12: Fig. 6
Operation: User interactions Control panel Fig. 6 Pos . Function Description Display See display options on page 13. Mode switch Fan only ACT-7 • Ventilation without air conditioning Stand by • The device remains powered but will not operate Air Conditioning (A/C) •... -
Page 13: Fig. 7
Operation: User interactions Display ACT-7 Fig. 7 Pos . Display Description Current temperature Measured sensor temperature. Defrost (active) The ACT-7 runs the defrost mode when needed and auto- matically returns to cooling/fan only mode when finished. Air Condition (active) The ACT-7 is in air condition mode. Alarms (flashing): The alarm has to be reset (see “Menu overview”... - Page 14 Operation: User interactions Menu overview Main menu Submenu Temperature (NONE) • Set the start temperature for the air conditioner (5-30°C). The value is set to 15°C by default. Reset alarm HP fault (use only, when alarm is visible • See trouble shooting on page 16.
-
Page 15: Service Guide
Service Guide: Preventative maintenance Service Guide Preventative maintenance Introduction Preventative maintenance is necessary at regular intervals if the unit has to function efficient- ly and if you want to ensure the expected lifetime of minimum 10 years. Weekly Check the fluid level every week and top up as needed (see detailed procedure in section “Check the fluid level”... -
Page 16: Trouble Shooting
Service Guide: Trouble shooting Trouble shooting Fault finding Symptoms Display Problem Possible cause Action required Power outlet in Turn on electricity and/or check wall is off/ dis- mains fuse No air flow Power (230V) connnected from room connected but unit no function Defect on electrical Call for an electrician. - Page 20 Marienlystvej 65 7800 Skive Denmark support.dantherm.com Dantherm can accept no responsibility for possible errors and changes (en) Der tages forbehold for trykfejl og ændringer (da) Irrtümer und Änderungen vorbehalten (de) Dantherm n’assume aucune responsabilité pour erreurs et modifications éventuelles (fr)
