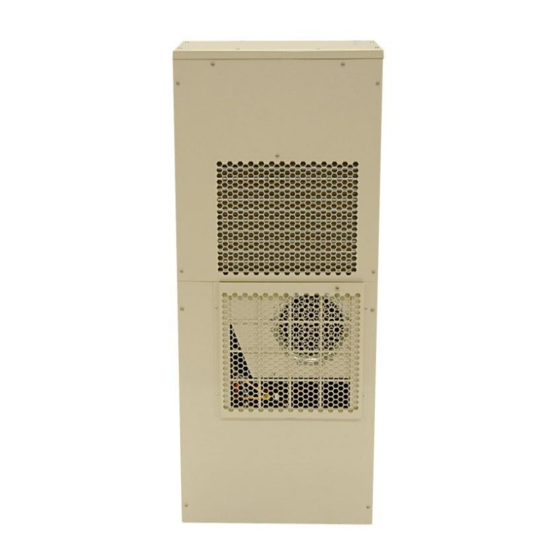

Panel Mounted Air Conditioners
by Dantherm Inc.
iA/C T-Series
iA/C T-B10000, -B12000
with USACG-6 Control
PRODUCT INFORMATION MANUAL
AC-10 iAC 10K 12K Manual Rev D
Page 1 of 18
Dantherm, Inc.
110 Corporate Drive, Suite K
Spartanburg, SC 29303
Tel # +1 864 595 9800
Fax # +1 864 595 9810
Email:
dantherm.usa@dantherm.com
Website:
www.dantherm.com
Advertisement
Table of Contents
Related Manuals for Dantherm iA/C T Series
Summary of Contents for Dantherm iA/C T Series
- Page 1 Panel Mounted Air Conditioners by Dantherm Inc. iA/C T-Series iA/C T-B10000, -B12000 with USACG-6 Control PRODUCT INFORMATION MANUAL AC-10 iAC 10K 12K Manual Rev D Page 1 of 18 Dantherm, Inc. 110 Corporate Drive, Suite K Spartanburg, SC 29303 Tel # +1 864 595 9800...
-
Page 2: Table Of Contents
iA/C T-Series Installation, Operating & Maintenance Manual Contents GENERAL SAFETY & WARNING INSTRUCTIONS ............... 3 UNPACKING, HANDLING & INITIAL INSPECTION ..............3 MODELS COVERED BY THIS MANUAL ..................4 ........................4 ODEL DENTIFICATION ......................4 ENERAL PERFORMANCE DIMENSIONS & INSTALLATION ....................... 5 .......................... -
Page 3: General Safety & Warning Instructions
iA/C T-Series Installation, Operating & Maintenance Manual 1 GENERAL SAFETY & WARNING INSTRUCTIONS Certain parts of electrical systems are inevitably live or have a high operating temperatures. Observe caution at all times. Failure to observe these conditions and installation instructions can cause injury and damage. ... -
Page 4: Models Covered By This Manual
iA/C T-Series Installation, Operating & Maintenance Manual 3 MODELS COVERED BY THIS MANUAL Model Identification The model numbering format is detailed below. B = 230 Volt 1/Phase 50/60 Hz. 10000 = 10,000 BTU/Hr 12000 = 12,000 BTU/Hr Option Codes H020 = Heater rating = 2000W F1 = Filter L = Attachment Plug iA/C T-B10000-H020-Fl... -
Page 5: Dimensions & Installation
iA/C T-Series Installation, Operating & Maintenance Manual 4 DIMENSIONS & INSTALLATION Product Drawing 4.1.1 iA/C T-B10000 4.1.2 iA/C T-B12000 AC-10 iAC 10K 12K Manual Rev D Page 5 of 18... -
Page 6: Mounting Template
iA/C T-Series Installation, Operating & Maintenance Manual Mounting template 4.2.1 iA/C T-B10000 AC-10 iAC 10K 12K Manual Rev D Page 6 of 18... -
Page 7: Ia/C T-B12000
iA/C T-Series Installation, Operating & Maintenance Manual 4.2.2 iA/C T-B12000 AC-10 iAC 10K 12K Manual Rev D Page 7 of 18... -
Page 8: Gasket Installation
(Common), black (Normally open) and white (Normally closed) wires only. The green wire is not used. If the interconnect function is to be used, connect the black and red wires on the small two wire interconnect cable to the corresponding interconnect cable supplied with each unit. Contact Dantherm for additional information. ... -
Page 9: Usacg-6 Intelligent Controller Operation
iA/C T-Series Installation, Operating & Maintenance Manual Check for the following: Airflow through both condenser and evaporator Abnormal vibration Temperature of cabinet supply air should be less than 70 F (21 C) when the ambient air is 80 F (27 C) or below. -
Page 10: Modify Cooling Set Point
iA/C T-Series Installation, Operating & Maintenance Manual Modify cooling set point Press L button for 2 seconds and release (Display will begin “Display Mode”) Press L&R button simultaneously for 2 seconds and release (Display will show “test”) Press R button for 2 seconds and release (Display will show “H SP”) Press R button for 2 seconds and release (Display will show “C SP”) Press L button for 2 seconds and release (Display will show current Cooling Set Point) Press and hold R button to raise setting (Maximum is 104... -
Page 11: Initiating The "Test" Sequence
iA/C T-Series Installation, Operating & Maintenance Manual Initiating the “TEST” sequence 5.5.2 1. Press L button for 2 seconds and release (Display will begin “Display Mode”) 2. Press L&R button simultaneously for 2 seconds and release (Display will show “test”) 3. -
Page 12: Maintenance
T-Series Installation, Operating & Maintenance Manual 6 MAINTENANCE Preventative Maintenance Schedule Dantherm Air Handling Inc Air Conditioner Preventative Maintenance Schedule 3 or 6 6 Monthly Yearly 5 Yearly Maintenance Item Monthly 1 Check enclosure air or ambient air filter (If applicable) -
Page 13: Evaporator And Condenser Coil Cleaning
The compressor is a hermetically sealed and factory lubricated unit and therefore requires no maintenance. If the compressor fails it is recommended that the unit be returned to Dantherm Inc. for servicing. In the event that the unit cannot be returned it is possible, using suitably qualified personnel, to repair the unit in the field. -
Page 14: Troubleshooting
To aid in service definition the service personnel can initially identify probable cause by referring to the following trouble shooting chart. If in doubt contact Dantherm Air Handling Inc. for assistance. Always have the Model #, Serial # available before you call. -
Page 15: Wiring Diagram
iA/C T-Series Installation, Operating & Maintenance Manual Wiring Diagram AC-10 iAC 10K 12K Manual Rev D Page 15 of 18... -
Page 16: Spare Parts Guide
iA/C T-Series Installation, Operating & Maintenance Manual Spare Parts Guide AC-10 iAC 10K 12K Manual Rev D Page 16 of 18... -
Page 17: Warranty
DANTHERM warrants that such DANTHERM products will be free from defects in materials and workmanship in normal use for a period of twelve (12) months from the date of the original purchase. Should any part of your DANTHERM product fail because of a... -
Page 18: Return Material Authorization Procedure
All product returns require a Return Material Authorization number regardless of reason. The customer is required to contact the Quality Department at Dantherm Inc. in Spartanburg, SC at +1 864 595 9800 to obtain a RMA number. ...
