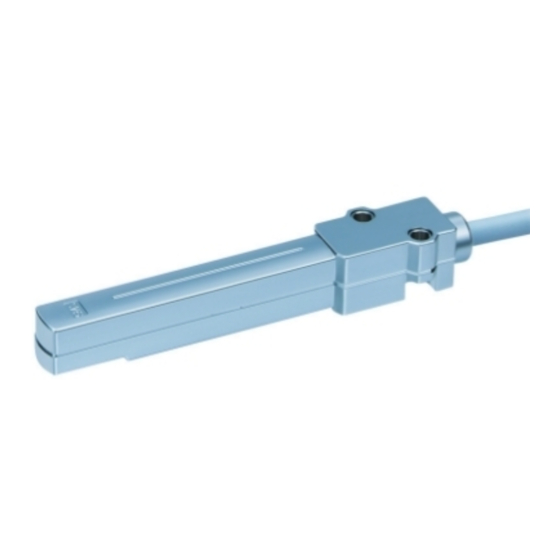

  • Page 1 Doc. No.IZ*-OMK0023-A OPERATION MANUAL Electrostatic Sensor PRODUCT NAME: IZD10-*10 MODEL: ○Read this operation manual carefully to understand before installation and operation. ○Pay extra attention on the clause concerning the safety. ○Keep this operation manual available whenever...

  • Page 2: Table Of Contents

    INDEX Safety Instruction ..........................2 Outline ..............................6 How to Order ............................7 Specification ............................7 Mounting.............................. 7 5-1. Electrostatic sensor installation ....................7 5-1-1. Sensor head installation ....................... 7 5-1-2. Installation of the sensor amplifier ..................8 5-2. Circuitry and wiring chart ......................9 Performance ............................

  • Page 3: Safety Instruction

    1. Safety Instruction These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard by labeling "Caution", "Warning", and "Danger". To ensure safety, be sure to observe ISO4414 and other safety precautions. Caution ：...
  • Page 4 Selection Warning (1) This product is intended to be used for general FA equipment. Please consult SMC for other application (esp. application described on (4) on previous page). (2) Keep specified voltage and temperature range to avoid malfunction, damage, electric shock and fire. (3) This product is not explosion proof.
  • Page 5 (7) Do not apply tape/seal to the body to avoid electrification which disables correct detection of electrified potential. (8) Stop supplying the power to the electrostatic sensor during installation and adjustment. (9) Keep the distance for installation so that the sensor head is not charged. (See Effective inspection distance : “4.
  • Page 6 Operating / Storage environment Warning (1) Keep operating ambient temp. range Operating ambient temp. range is 0 to 50 Even if ambient temp. is within spec. range, environment with sharp temp. change will can form dew. Don’t use it there. (2) Environment to avoid Do not operate nor store the product under following environment to avoid failure.

  • Page 7: Outline

    2. Outline Electrostatic sensor consists of the sensor head and sensor amplifier. 1500mm 3500mm Sensor Sensor head Part A amplifier Electrostatic sensor has two types of sensors below. # Model : IZD10-110 The purpose is to confirm electricity elimination effect of the ionizer. The sensor is set so that Inspected charged potential is output in relatively small range of potential.

  • Page 8: How To Order

    3. How to Order IZD10 - * 10 Measuring range +/- 0.4kV +/- 20kV 4. Specification Electrostatic sensor IZD10-110 IZD10-510 model no. +/- 0.4kV +/- 20kV Measuring range ＊１ ＊１ (when detection distance 25mm) (when detection distance 50mm) Output voltage 1 to 5V (Output impedance Approx.

  • Page 9: Installation Of The Sensor Amplifier

    Bolt mount surface Detection hole Sensor head M3 screws Sensor head Mate M3 bolt to the bolt mount surface. Mounting from the opposite side leads to cause the breakage of the sensor head. The sensor head body is common with GND due to the sensor structure. Attention should be taken not to short circuit +24V power source during installation and power supply.

  • Page 10: Circuitry And Wiring Chart

    5-2. Circuitry and wiring chart Wire leads according to circuitry and wiring chart. (1) Circuitry Color in ( ) indicates lead wire cover color of specified cable. Electrostatic sensor Sensor head Sensor amplifier DC[+] (Brown) Power source DC24V+/-10% DC[-] (Blue) 100 Ohms Sensor output (White)

  • Page 11: Performance

    6. Performance 6-1. Output signal When measuring the potential of charged object with electrostatic sensor, the relation between measured charged potential and output voltage depends on the sensor installation distance. See the chart below for the relation. (Installation distance in the chart indicates the distance between measured object and the electrostatic sensor.) Relation between sensor output and charged potential on installation distance...

  • Page 12: Detection Range

    6-2. Detection range Electrostatic sensor installation distance and detection range are shown below. IZD10-110 Sensor head Installation Detection range distance mm Detection hole IZD10-510 Detection range Installation Detection range distance mm Detection hole Sensor head 6-3. Cautions on installation When an object other than measured object is installed close to the electrostatic sensor, the sensor output can be different from actual value due to the effect of charged potential of installed object.

  • Page 13: Timing Chart

    6-4. Timing chart Chart below shows the timing chart when installation distance of IZD10-110(distance from measured subject) is 25mm. (50mm for IZD10-510) Time until operation stabilized :Note1 Power source(DC24V) 100ms or less (Output delay) 100ms or less (Output delay) Sensor output 1kV[25kV] 0.4kV[20kV] Charged...
