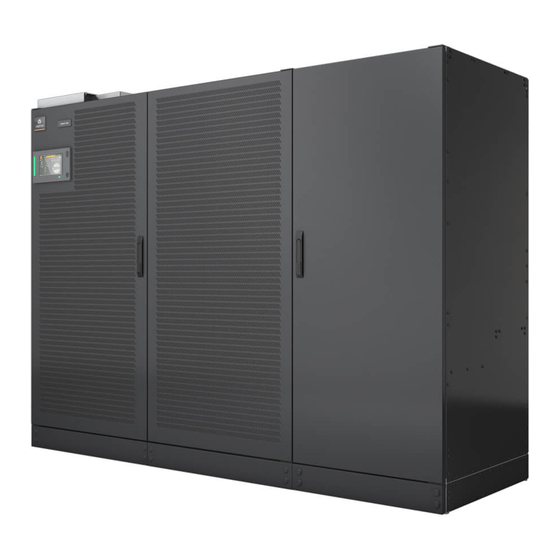

Vertiv Liebert EXL S1 Installer's Manual

400 kva-1200 kva, 60 hz, three-phase ups, single-module and multi-module
Hide thumbs Also See for Liebert EXL S1:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Installation Manual
Liebert®
EXL S1™
Installer Guide
400 kVA – 1200 kVA, 60 Hz, Three-phase UPS,
Single-module and Multi-module (Distributed Bypass)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Liebert EXL S1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vertiv Liebert EXL S1

Summary of Contents for Vertiv Liebert EXL S1

  • Page 1 Liebert® EXL S1™ Installer Guide 400 kVA – 1200 kVA, 60 Hz, Three-phase UPS, Single-module and Multi-module (Distributed Bypass)
  • Page 2 The products covered by this instruction manual are manufactured and/or sold by Vertiv This document is the property of Vertiv and contains confidential and proprietary information owned by Vertiv. Any copying, use or disclosure of it without the written permission of Vertiv is strictly prohibited.

  • Page 3: Table Of Contents

    3.6.7 Connector for Parallel UPS Connection—AP30-XP71A, 71B, AP30-XP72A, 72B 3.6.8 RJ-45 Interface for Synchronization with External Signal—AP30-XP31 3.6.9 UPS Control Contacts with Battery Cabinet or Module Battery Disconnect 3.6.10 UPS Control Contacts with Global Maintenance Bypass Vertiv | EXL S1™ Installer Guide |...
  • Page 4 4.1 Options 4.2 Rectifier Feed Breaker (RFB) 4.2.1 Remote Back-feed Breaker 4.3 Multi-Module System Options and Accessories 4.3.1 Paralleling Cable Kit 4.3.2 Multi-Bus Synch Module (MBSM) 5 Specifications Appendices Appendix A: Technical Illustrations Vertiv | EXL S1™ Installer Guide |...

  • Page 5: Important Safety Instructions

    1 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important instructions that should be followed during installation of your Liebert® EXL S1™ UPS. Read this manual thoroughly, paying special attention to the sections that apply to your installation, before working with the UPS. Retain this manual for use by installing personnel. WARNING! Risk of electrical shock.
  • Page 6 NOTE: Materials sold hereunder cannot be used in the patient vicinity (e.g., use where UL, cUL or IEC 60601-1 is required). Medical applications such as invasive procedures and electrical life support equipment are subject to additional terms and conditions. Vertiv | EXL S1™ Installer Guide...

  • Page 7: Mechanical Installation

    Before installing the UPS, carry out the following preliminary checks: • Visually examine the UPS equipment for transit damage, both internally and externally. Report any damage to the shipper and to your Vertiv representative immediately. • Verify that the correct equipment is being installed. The equipment supplied has an identification tag on the interior doors stating the type, size, and main-calibration parameters of the UPS.
  • Page 8 Vertiv applies the highest safety standards in equipment design to ensure that no live parts are exposed to external contact, and also to ensure that the equipment is protected against the introduction of foreign bodies during operation.

  • Page 9: Storing The Ups And Batteries For Delayed Installation

    2.3.2 Storing the UPS and Batteries for Delayed Installation If the UPS system will not be installed immediately, store it indoors in a clean, dry, and cool location (see Table 5.3 on page 42). If the system includes a battery cabinet, the batteries’ requirements dictate the storage conditions.

  • Page 10: Clearances

    The impedance mismatch can also be minimized by controlling the wiring length of each unit. The design and the layout of the UPS system and associated panels and cabling should be examined closely to ensure that cable lengths and impedance are closely matched. Vertiv | EXL S1™ Installer Guide...

  • Page 11: Unpacking And Unloading The Cabinet From The Pallet

    If the cabling impedance need to be greater than 5% or the total, planned system load exceeds more than 85% per module, contact your Vertiv representative to calculate whether the system will result in an overload condition when operating on bypass.

  • Page 12: System Configuration

    The detailed arrangement and cabinet dimensions for your UPS system is described in the installation drawings. Refer to the appropriate illustrations for your unit included in Technical Illustrations on page 53. Vertiv | EXL S1™ Installer Guide...
  • Page 13 Figure 2.1 Connected and Internally-wired UPS system Item Description Battery cabinets 2 Mechanical Installation...

  • Page 14: Power-Cable Busbars

    53. 2.5 on page 8, lists the drawings by number, UPS model, and options. Input power, from utility power or from a DC system, connects to the UPS through an input/output cabinet. When Liebert® battery cabinets are attached to the UPS, Vertiv supplies the busbars and cables for the power connections.
  • Page 15 The battery cabinets connect to the input/output cabinet with busbars. • UPS models with static bypass only employ busbars that enter below the cabinet roof line. Those busbars are enclosed by the battery cabinet and the input/output cabinet. • UPS models with back-feed disconnect, common mode choke, bypass sharing inductors or with any combination of these options, employ busbars that extend through openings in the tops of the adjacent battery cabinet and input/output cabinet.
  • Page 16 Figure 2.3 Battery-cabinet busbar connections to input/output cabinet 1 Item Description 1000-kVA to 1200-kVA models 500-kVA to 800-kVA models Connect to negative battery bus in I/O cabinet Connect to positive battery bus in I/O cabinet Vertiv | EXL S1™ Installer Guide...
  • Page 17 Figure 2.4 Battery-cabinet busbar connections to input/output cabinet 2 or 3 (1200-kVA model shown) Item Description Input/Output cabinet Busbar x 3 Busbar x 3 Battery cabinet Busbar shroud 2 Mechanical Installation...

  • Page 18: Attaching Input/Output Cabinets

    Before moving an input/output cabinet into position, three input fuses must be removed. For the location, refer to the appropriate illustrations for your unit included in Technical Illustrations on page 53. Table 2.1 above, lists relevant drawings by number, UPS model, and options. Vertiv | EXL S1™ Installer Guide...

  • Page 19: Ups Electrical Installation

    3 UPS ELECTRICAL INSTALLATION These guidelines are for qualified installers who must have knowledge of local wiring practices pertaining to the equipment to be installed. WARNING! Risk of electrical shock. Can cause injury or death. The UPS contains high DC as well as AC voltages.

  • Page 20: Sizing The Input Breaker That Feeds The Ups

    If a smaller input feed breaker is used, the input current limit can be adjusted; see your Vertiv representative for more information. The input current limit should not be set less than 105% of the current needed to support the inverter at full load for normal operation.

  • Page 21: Equipment Ground

    à la terre. Toutes les opérations décrites dans cette section ne doivent être effectuées que par des électriciens ou des techniciens professionnels dûment formés et qualifiés . En cas de difficultés, communiquez avec Vertiv. Pour obtenir les renseignements de contact, consultez la dernière page de ce manuel.

  • Page 22: Dc Power Connections

    The interconnects are very hard to access after the power wiring is complete. To make the interconnections, see connections the appropriate “Interconnection Details” drawing for your system, listed in 2.5 on page 8. Vertiv | EXL S1™ Installer Guide...

  • Page 23: Control Cable And Communication

    UPS models with the back-feed disconnect, common mode choke, or bypass sharing inductors or with any combination of these options employ busbars that extend through openings in the tops of the adjacent battery cabinet and input/output cabinet. These busbars require a protective, factory-supplied shroud that is attached to the input/output cabinet and the adjacent attached battery cabinet.
  • Page 24 AP30-XP11 - Selectable Input Dry Contacts; 8 Form A/B or 4 Form C Contacts) Not Used. AP30-XP4 AP30-XP31 - Load Bus Sync port, AP30-XP71A, 71B; AP30-XP72A, 72B - Parallel UPS Communication Connections AP30-XP24 - Back-feed CB Output Dry Contacts Not Used. AP30-XP19A/19B Vertiv | EXL S1™ Installer Guide...

  • Page 25: Slots For Liebert® Intellislot™ Cards-Slot1 And Slot3

    The platform communicates with Vertiv software tools and services, including Trellis®, Liebert® SiteScan™ Web and Liebert® Nform™. The IS-UNITY-DP card supports up to two third-party protocols along with HTTP/S (Web), Vertiv Protocol, SMTP and SMS. Third-party protocols available on the IS-UNITY-DP card are: •...

  • Page 26: Connector For Repo (Input And Status)-Ap30-Xp10

    NOTE: The external EPO switch must latch open when activated. 3.6.5 Customizable Output Dry Contacts—AP30/AP202 XP12 The UPS has two 18-pin screw connectors (AP30-XP12 and AP202-XP12) that allow connecting 12 Form-C or Form-A/B configurable output contacts. Each contact is rated for 120VAC/5A. Vertiv | EXL S1™ Installer Guide...
  • Page 27 Table 3.3 Customizable output contacts FORM C or FORM A/B AP30: XP12-1 NOT USED AP30: XP12-2 BFD/RBB BACKFEED PROTECTION TRIP Contact #1 COMMON AP30: XP12-3 BFD/RBB BACKFEED PROTECTION TRIP Contact #1 N.O. AP30: XP12-4 SKRU ENABLE CONTACT #2 N.C. AP30: XP12-5 SKRU ENABLE CONTACT #2 COMMON AP30: XP12-6 NOT USED...
  • Page 28 Load Level 100% Load Level 105% Line Fault Summary Alarm Or Line Fault Power Loss Pre-warning Power Loss Warning Load Not Supplied Eco Mode Active Remote Back-Feed Breaker BCB Open Multi Module Operating System Detected Vertiv | EXL S1™ Installer Guide...

  • Page 29: Customizable Input Dry Contacts-Ap30/Ap202 Xp11

    3.6.6 Customizable Input Dry Contacts—AP30/AP202 XP11 The UPS contains two 12-pin screw connectors (AP30-XP11 and AP202-XP11) that allow connecting eight Form-C or 16 Form-A/B configurable output contacts. Table 3.4 Customizable input contacts Form C Form A AP30: XP11-1 BFD AUX CONTACT #1 N.C. RBB AUX.
  • Page 30 (that is, no piggybacking signals). Failure to adhere to these guidelines may result in unintended operation, damage to the equipment, or even a critical load loss. Any customers planning EXL S1 installations that incorporate PLC remote control should contact Vertiv Applications Engineering for guidance.

  • Page 31: Connector For Parallel Ups Connection-Ap30-Xp71A, 71B, Ap30-Xp72A, 72B

    Figure 3.2 External Circuit Breakers in a Typical System Table 3.5 Programmable Input Contacts for External Circuit Breakers Item Module Output The MOB isolates the output of the UPS from the critical load or collective bus of a parallel UPS system. Breaker (MOB) It is typically located in a system paralleling cabinet, system control cabinet, switchgear, or switchboard.

  • Page 32: Interface For Synchronization With External Signal-Ap30-Xp31

    Maintenance Bypass Cabinet, common For 1+N systems with a maintenance Bypass, these contacts must be run to each module from an isolated source. These contacts must be run separately from all other control cables. Vertiv | EXL S1™ Installer Guide...

  • Page 33: Configuring Ground Connections

    3.7 Configuring Ground Connections The UPS is compatible with solidly-grounded wye sources or a high-resistance ground system, if compatible. Refer to High-Resistance Ground Systems on page 32. NOTE: Early production models may not be compatible with high-resistance ground systems. Improper grounding is the largest single cause of UPS installation and start-up problems. Grounding techniques vary significantly from site to site, depending on several factors.
  • Page 34 Figure 3.3 Grounding diagram—Three-wire single-module systems Item Description Source Optional back-feed disconnect BPSS To connected equipment Vertiv | EXL S1™ Installer Guide...

  • Page 35: Recommended Grounding Configuration, Battery Systems

    Figure 3.4 Grounding diagram—Three-wire multi-module systems Item Description Source Optional back-feed disconnect BPSS Switchgear To connected equipment 3.7.2 Recommended Grounding Configuration, Battery Systems Battery cabinet systems must be connected as floating (ungrounded) systems. Center-tapped or grounded battery systems are not possible with battery cabinet systems. Whether the battery system is open-rack or cabinet, the metal rack parts or cabinet must be grounded to the UPS module ground bus.

  • Page 36: High-Resistance Ground Systems

    1+N Multi-module, Single-input layouts ES1-02-S001 with static bypass and two-breaker paralleling cabinet ES1-02-S002 with static bypass, two-breaker paralleling cabinet, and back-feed disconnect ES1-02-S005 without static bypass Vertiv | EXL S1™ Installer Guide...

  • Page 37: Top Entry Low-Voltage

    Table 3.9 System-cabling Layout Drawings (continued) Drawing Number model/options 1+N Multi-module, Dual-input layouts ES1-02-S003 with static bypass and two-breaker paralleling cabinet ES1-02-S004 with static bypass, two-breaker paralleling cabinet, and back-feed disconnect Control Cabling Layouts ES1-19-S002 Communications and general contacts ES1-19-S003 DC source cable layout - UPS with matching battery cabinets ES1-19-S004 DC source cable layout - UPS with third-party battery cabinets...
  • Page 38 NOTE: The low-voltage conduit plate must be removed prior to punching holes for landing conduit. Failure to do so may result in equipment damage due to metal debris. Low-voltage cable route Bottom-entry low-voltage conduit box Fans Vertiv | EXL S1™ Installer Guide...

  • Page 39: Optional Equipment

    UPS Inverter and Maintenance Bypass may result in equipment damage and loss of load. A number of options are available from Vertiv for the EXL S1. (Some options are not available for all ratings.) below are the most frequently provided options. Others are available. Contact your Vertiv representative for more information.

  • Page 40: Rectifier Feed Breaker (Rfb)

    1200kVA Module have a short-time rating of 100 kA at a maximum voltage of 480 V contacts for proper rectifier and for three cycles. operation with the UPS. bypass input. Vertiv | EXL S1™ Installer Guide...

  • Page 41: Multi-Module System Options And Accessories

    Figure 4.1 Remote Back-feed Breaker diagram Item Description Inside UPS Inside Switchgear Phase A critical bus Phase B critical bus Bottom P/S OK signal customer-input contact AP30-XP11 (factory-wired) Back-feed active customer-output contact AP30-XP12 (factory-wired) RBB Aux. contact customer-input contact AP30-XP11 External, 120-V shunt trip RBB Aux.

  • Page 42: Paralleling Cable Kit

    Parallel communication cables must be selected from one of the suppliers to be compatible with the RJ-45 connector on the EXL S1. Vertiv Part # 564556P1 supplied or ordered with multi-module systems. Contact factory for details. Approved CAT6 cable suppliers: •...

  • Page 43: Specifications

    Battery Float Voltage, VDC DC Ripple at Float Voltage < 1.0% (RMS value) < 3.4% Vpp ™ Temperature Compensated Battery Charging Standard with Vertiv Battery Cabinets Output Parameters Load Power Factor Supported (Without Derating) 0.7 Leading to 0.4 Lagging Output Voltage, VAC...
  • Page 44 UL 1778 5th Edition; CSA 22.2 NO 107.3 IEC 62040-2; FCC Part 15, Class A Surge ANSI C62.41, Category B3 ® ENERGY STAR Qualified UPS Pending IBC 2015, CBC 2016, ASCE, OSHPD Seismic Consult the factory for further details. Vertiv | EXL S1™ Installer Guide...
  • Page 45 Table 5.2 Dimensions and Weights—with and without options UPS Rating Installed Options Approximate Dimensions WxDxH, in. Weight Voltage Back-Feed Bypass Common (mm) Unpackaged, Disconnect (Sharing) Mode lb (kg) (BFD) Inductors Choke 63.0 x 36.0 x 79.1 400/500 400/500 — — —...
  • Page 46 78 (72 at partial load) Table 5.4 Current ratings—rectifier input UPS Rating Voltage, VAC Nominal Current Maximum Current 1030 1099 1000 1000 1247 1372 1100 1100 1373 1510 1200 1200 1499 1574 1200 1200 1499 1649 Vertiv | EXL S1™ Installer Guide...
  • Page 47 Table 5.5 Current ratings—bypass UPS Rating Voltage VAC Nominal Current 1000 1000 1203 1100 1100 1323 1200 1200 1443 Table 5.6 Current ratings—Output UPS Rating Voltage, VAC Nominal Current 1000 1000 1203 1100 1100 1323 1200 1200 1443 Table 5.7 Current ratings—battery UPS Rating Maximum Battery Current, EOD Nominal, VDC...
  • Page 48 158% 158% 158% 155% 155% 155% 155% 152% 152% 152% 152% 130% 130% 130% 130% 125% 125% 125% 125% — 110% — 110% 110% 102% Based on nominal input voltage and no battery charging. Vertiv | EXL S1™ Installer Guide...
  • Page 49 Table 5.9 Current-versus-time curves of bypass overload capacity, 104° (40°C) % Load Overload Time, sec. 5.45 5.17 0.61 Based on nominal input voltage 5 Specifications...
  • Page 50 5 - 4" (600 kcmil/ph+350 kcmil Gnd) 6 - 3" (500 kcmil/ph+250 kcmil Gnd) 7 - 3" (500 kcmil/ph+400 kcmil Gnd) 1200 1200 Bottom 5 - 3.5" (600 kcmil/ph+250 kcmil Gnd) 6 - 4" (600 kcmil/ph+400 kcmil Gnd) Vertiv | EXL S1™ Installer Guide...
  • Page 51 Table 5.10 Recommended conduit and cable sizes (continued) (# of conduits); size of conduits; # -size of phase cables per conduit; size of cable for ground per UPS Rating conduit Voltage Cable (VAC) Entry Copper Conductors Aluminum Conductors BYPASS INPUT 2 - 3.5"...
  • Page 52 5 - 3.5"(500 kcmil/ph+350 kcmil Gnd) 5 - 3" (500 kcmil/ph+4/0 AWG Gnd) 6 - 3" (500 kcmil/ph+350 kcmil Gnd) 1200 1200 Bottom 5 - 3.5" (500 kcmil/ph+4/0 AWG Gnd) 5 - 4" (600 kcmil/ph+350 kcmil Gnd) Vertiv | EXL S1™ Installer Guide...
  • Page 53 Conduit size is based on RNC type conduit for bottom input and EMT-type conduit for top input. Vertiv™ recommends that the site planner choose the appropriate cable type based on the particular installation requirements.
  • Page 54 Zinc Plating Fastener Finish Plain Steel Zinc Plating Threads/ No Washer/ Flat No Washer/ Flat Thread No Washer/Flat No Washer/Flat Size Size Inch, Tpi Washer Washer Pitch, Tp Washer Washer 5/16 0.75 1.25 7/16 1.25 Vertiv | EXL S1™ Installer Guide...
  • Page 55 Table 5.12 Recommended Torque Values (continued) Grade 5 Steel: Unified Thread System Torque, lbf.*in. Class 8.8 Steel: Metric Thread System Torque, N*m Fastener Finish Plain Steel Zinc Plating Fastener Finish Plain Steel Zinc Plating Threads/ No Washer/ Flat No Washer/ Flat Thread No Washer/Flat No Washer/Flat...
  • Page 56 This page intentionally left blank Vertiv | EXL S1™ Installer Guide...

  • Page 57: Appendices

    APPENDICES Appendix A: Technical Illustrations The technical illustrations are in the order of the drawing part number. Table A.1 below, groups the drawings by referenced topic/application. Table A.1 Technical-illustrations Contents Drawing Number UPS model 400 – 500 kVA, 415-V UPS Installation Drawings ES1-05-S021 SMS and 1+N multi-module unit ES1-05-S022...
  • Page 58 System Cabling Layouts - 1+N Multi-module, Dual-input layouts ES1-02-S003 with static bypass and two-breaker paralleling cabinet ES1-02-S004 with static bypass, two-breaker paralleling cabinet, and back-feed disconnect System Cabling Layouts - Control Cabling Layouts ES1-19-S002 Control wiring Vertiv | EXL S1™ Installer Guide...
  • Page 59 Table A.1 Technical-illustrations Contents (continued) Drawing Number UPS model ES1-19-S003 DC source cable layout - UPS with matching battery cabinets ES1-19-S004 DC source cable layout - UPS with third-party battery cabinets DC source cable layout - UPS with third-party maintenance-bypass-distribution and battery ES1-19-S005 cabinets ES1-19-S007...
  • Page 60 This page intentionally left blank Vertiv | EXL S1™ Installer Guide...
  • Page 61 NOTE: UNLESS OTHERWISE SPECIFIED THIS DOCUMENT (AND THE INFORMATION IT CONTAINS) ARE THE PROPERTY OF VERTIV CO. BY ACCEPTING IT INTO YOUR POSSESSION, YOU AGREE THAT YOU WILL KEEP THIS DOCUMENT, AND ALL INFORMATION CONTAINED HEREIN, IN STRICTEST THE I/O CABINET MUST BE MOVED TOWARD...
  • Page 62 REVISIONS REV. DESCRIPTION DATE APPROVED 9/25/2017 M HUBBS ADDED TWO PARTS TO STEPS 4,6 & 7 9/25/2017 C HOLT INPUT BUSBARS INPUT BUSBARS HIDDEN TO SEE BYPASS CONNECTIONS IN STEP 4, INSERT CARRIEAGE BOLT FROM UPS SIDE AND INSERT CAP SCREW FROM I/O SIDE BYPASS CONNECTIONS BEHIND INPUT BUSBARS...
  • Page 63 REVISIONS STEP 11 REV. DESCRIPTION DATE APPROVED INPUT: 240 In Lbs X6 NUTS ONLY 9/25/2017 M HUBBS 27.0 NM NO CHANGES THIS SHEET 9/25/2017 C HOLT REINSTALL FUSES REMOVED DURING CABINET JOINING STEP M12 LARGE FLAT WASHER (1) {PN: 09-43H00Z-00} M12 RIBBED WASHER (2) {PN: 09-39H00Z-B1} M12 NUT (1) {PN: 09-25J00Z-00} M12 SET SCREW (1) {PN: 09-08JY03-15}...
  • Page 64 NOTE: UNLESS OTHERWISE SPECIFIED THIS DOCUMENT (AND THE INFORMATION IT CONTAINS) ARE THE PROPERTY OF VERTIV CO. BY ACCEPTING IT INTO YOUR POSSESSION, YOU AGREE THAT YOU WILL KEEP THIS DOCUMENT, AND ALL INFORMATION CONTAINED HEREIN, IN STRICTEST MM ( PRIMARY)
  • Page 65 REVISIONS REV. DATE STEP 11 DESCRIPTION APPROVED INPUT: SHEET 2 / ZONES B4 & C4 : ADDED 04-09-18 J. STINSON 240 In Lbs STEP 14 BAG-B, BAG-C, BAG-D, BAG-E, & X6 NUTS ONLY 04-09-18 K. WAGNER 27.0 NM BAG-F REFERENCES. REMOVE COVER SO WIRE DURING CABINET JOINING STEP CAN BE PLACED IN DUCT...
  • Page 66 REVISIONS REV. DATE DESCRIPTION APPROVED STEP 15 IS ONLY 04-09-18 J. STINSON SEE SHEETS 1 & 2 FOR CHANGES. 04-09-18 K. WAGNER FIELD INSTALL ITEM ON THIS PAGE BFD WIRING AP30 STEP 15 XP12-2 (WHT) BFD CONTROL WIRING (X34) XP12-3 (RED) CONNECT X35 AND X34 NOT PRESENT W/OUT BFD FROM IO TO UPS...
  • Page 67 NOTE: UNLESS OTHERWISE SPECIFIED THIS DOCUMENT (AND THE INFORMATION IT CONTAINS) ARE THE PROPERTY OF VERTIV CO. BY ACCEPTING IT INTO YOUR POSSESSION, YOU AGREE THAT YOU WILL KEEP THIS DOCUMENT, AND ALL INFORMATION CONTAINED HEREIN, IN STRICTEST THE I/O CABINET MUST BE MOVED TOWARD...
  • Page 68 REVISIONS REV. DESCRIPTION DATE APPROVED BYPASS CONNECTIONS ARE SAME IN 10-25-17 L. JOHNSON ALL 9 SPOTS 10-25-17 C. HOLT STEP 9 REMOVE COVER SO WIRE CAN BE PLACED IN DUCT INPUT BUSBAR INPUT: STEP 3 HIDDEN IN THIS VIEW TO M12 X 45 CARRIAGE BOLT (1) {PN: 09-15JN0Z-15} SEE BYPASS CONNECTIONS 480 In Lbs...
  • Page 69 REVISIONS REV. DESCRIPTION DATE APPROVED 10-25-17 L. JOHNSON STEP 10 IS ONLY NO CHANGES TO THIS SHEET 10-25-17 C. HOLT FIELD INSTALL ITEM ON THIS PAGE STEP 10 CONNECT X35 AND X34 FROM IO TO UPS BFD CONTROL WIRING (X34) NOT PRESENT W/OUT BFD I/O 3 AP30...
  • Page 70 REVISIONS REV. DESCRIPTION DATE APPROVED 10-25-17 L. JOHNSON ADDED SHEET 4 10-25-17 C. HOLT REMOVE INPUT FUSES AND HARDWARE FROM THE UPS AND SET TO SIDE FUSES WILL STAY IN THIS CABINET FOR SHIPPING TO CUSTOMER SITE REMOVE BAG WITH FUSE HARDWARE CUT WIRE TIE USED TO HOLD INSTALL FUSES USING HARDWARE FLEX BUS DURING SHIPPING...
  • Page 71 © VERTIV CO.- CONFIDENTIAL AND PROPRIETARY - ALL RIGHTS RESERVED. UNLESS OTHERWISE SPECIFIED THIS DOCUMENT (AND THE INFORMATION IT CONTAINS) ARE THE PROPERTY OF VERTIV CO. BY ACCEPTING IT INTO YOUR POSSESSION, YOU AGREE THAT YOU WILL KEEP THIS DOCUMENT, AND ALL INFORMATION CONTAINED HEREIN, IN STRICTEST...
  • Page 72 REVISIONS REV. DATE DESCRIPTION APPROVED EXL S1 600KVA UPS SHOWN, 400KVA SIMILAR WITHOUT BFD CABINET NEGATIVE BUSBAR 20 X2 DETAIL C POSITIVE BUSBAR 20 X2 DETAIL C TOP LEFT VIEW, NEGATIVE BUSBAR TORQUE M12 HARDWARE TO 54 N-m ( 480 in-lbs ) BATTERY CABINET JUNCTION CABINET 36 X2...
  • Page 73 REVISIONS EXL S1 600KVA UPS SHOWN, 400KVA SIMILAR; REV. DATE DESCRIPTION APPROVED BFD CABINET ATTACHED NEGATIVE BUSBAR 20 X2 DETAIL C POSITIVE BUSBAR NEGATIVE BUSBAR 20 X2 DETAIL C TOP LEFT VIEW, TORQUE M12 HARDWARE TO 54 N-m ( 480 in-lbs ) 36 X2 POSITIVE BUSBAR BFD CABINET...
  • Page 74 REVISIONS REV. DATE DESCRIPTION APPROVED EXL S1 600KVA UPS SHOWN, 400KVA SIMILAR; BATTERY CABINET BFD CABINET ATTACHED JUNCTION CABINET BFD CABINET BATTERY CABINET JUNCTION CABINET BFD CABINET WIRES GO THROUGH HERE NEGATIVE BUSBAR 43 X3 43 X2 19 X6 19 X4 20 X6 20 X4 43 X2...
  • Page 75 + GND SYSTEM NOTE (SEE NOTE 6) A WRAP-AROUND MAINTENANCE BYPASS (FURNISHED BY VERTIV OR OTHERS) IS REQUIRED TO PERMIT ALL COMPONENTS OF THE UPS MODULE TO BE SAFELY SERVICED WHILE MAINTAINING POWER TO THE LOAD (SEE NOTE 3) 2 WIRE + GND...
  • Page 76 BREAK-BEFORE-MAKE DELAY TO THE AUTOMATIC TRANSFER SWITCH OPERATION. SYSTEM NOTE A WRAP-AROUND MAINTENANCE BYPASS (FURNISHED BY VERTIV OR OTHERS) IS REQUIRED TO PERMIT ALL COMPONENTS OF THE UPS MODULE TO BE SAFELY SERVICED WHILE MAINTAINING POWER TO THE LOAD * MODULE...
  • Page 77 BE SIZED FOR A TOTAL MAXIMUM 2 VOLT DROP AT MAXIMUM DISCHARGE CURRENT. DC POWER CABLES ARE FURNISHED BY VERTIV FOR MATCHING BATTERY CABINETS THAT ARE CONNECTED TO THE UPS MODULE (RIGHT HAND SIDE ONLY). UPS RECTIFIER INPUT, BYPASS INPUT, AND OUTPUT CABLES MAINTENANCE BYPASS PANELBOARD/SWITCHBOARD (FBO) MUST BE RUN IN SEPARATE CONDUITS.
  • Page 78 POWER CABLES FROM UPS DC LINK TO BATTERIES SHOULD BE SIZED FOR A TOTAL MAXIMUM 2 VOLT DROP AT MAXIMUM DISCHARGE CURRENT. DC POWER CABLES ARE FURNISHED BY VERTIV FOR MATCHING BATTERY CABINETS THAT ARE CONNECTED TO THE UPS MODULE MAINTENANCE BYPASS PANELBOARD/SWITCHBOARD (FBO) (RIGHT HAND SIDE ONLY).
  • Page 79 BE SIZED FOR A TOTAL MAXIMUM 2 VOLT DROP AT MAXIMUM DISCHARGE CURRENT. DC POWER CABLES ARE FURNISHED BY VERTIV FOR MATCHING BATTERY CABINETS THAT ARE CONNECTED TO THE UPS MODULE (RIGHT HAND SIDE ONLY). UPS RECTIFIER INPUT, BYPASS INPUT, AND OUTPUT CABLES MAINTENANCE BYPASS PANELBOARD/SWITCHBOARD (FBO) MUST BE RUN IN SEPARATE CONDUITS.
  • Page 80 POWER CABLES FROM UPS DC LINK TO BATTERIES SHOULD BE SIZED FOR A TOTAL MAXIMUM 2 VOLT DROP AT MAXIMUM DISCHARGE CURRENT. DC POWER CABLES ARE FURNISHED BY VERTIV FOR MATCHING BATTERY CABINETS THAT ARE CONNECTED TO THE UPS MODULE (RIGHT HAND SIDE ONLY).
  • Page 81 BEFORE-MAKE DELAY TO THE AUTOMATIC TRANSFER SWITCH OPERATION. SYSTEM NOTE A WRAP-AROUND MAINTENANCE BYPASS (FURNISHED BY VERTIV OR OTHERS) IS REQUIRED TO PERMIT ALL (SEE NOTE 3) 2 WIRE + GND COMPONENTS OF THE UPS MODULE TO BE SAFELY SERVICED WHILE MAINTAINING POWER TO THE LOAD...
  • Page 82 A WRAP-AROUND MAINTENANCE BYPASS (FURNISHED 3 WIRE + GND RFB (FBO) + GND BY VERTIV OR OTHERS) IS REQUIRED TO PERMIT ALL (SEE NOTE 6) COMPONENTS OF THE UPS MODULE TO BE SAFELY SERVICED WHILE MAINTAINING POWER TO THE LOAD...
  • Page 83 MAINTENANCE BYPASS PANELBOARD/SWITCHBOARD (FBO) SIZED FOR A TOTAL MAXIMUM 2 VOLT DROP AT MAXIMUM DISCHARGE CURRENT. DC POWER CABLES ARE * BYPASS FURNISHED BY VERTIV FOR MATCHING BATTERY CABINETS AC OUTPUT AC INPUT THAT ARE CONNECTED TO THE UPS MODULE (RIGHT HAND...
  • Page 84 SIZED FOR A TOTAL MAXIMUM 2 VOLT DROP AT MAXIMUM * BYPASS DISCHARGE CURRENT. DC POWER CABLES ARE AC OUTPUT AC INPUT FURNISHED BY VERTIV FOR MATCHING BATTERY 3 OR 4 WIRE 3 OR 4 WIRE CABINETS THAT ARE CONNECTED TO THE UPS MODULE + GND + GND (RIGHT HAND SIDE ONLY).
  • Page 85 * BYPASS DISCHARGE CURRENT. DC POWER CABLES ARE FURNISHED AC OUTPUT AC INPUT BY VERTIV FOR MATCHING BATTERY CABINETS THAT ARE 3 OR 4 WIRE 3 OR 4 WIRE CONNECTED TO THE UPS MODULE (RIGHT HAND SIDE ONLY). + GND...
  • Page 86 SINGLE MODULE WITH STATIC BYPASS ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 10/30/2018 DUAL INPUT UPS WITH 4 BREAKER EXTERNAL MAINTENANCE BYPASS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 87 FOR A TOTAL MAXIMUM 2 VOLT DROP AT MAXIMUM DISCHARGE 3 OR 4 WIRE + GND UPS OUTPUT CURRENT. DC POWER CABLES ARE FURNISHED BY VERTIV FOR 3 OR 4 WIRE MATCHING BATTERY CABINETS THAT ARE CONNECTED TO THE UPS + GND MODULE (RIGHT HAND SIDE ONLY).
  • Page 88 3 OR 4 WIRE + GND UPS OUTPUT AT MAXIMUM DISCHARGE CURRENT. DC POWER CABLES 3 OR 4 WIRE ARE FURNISHED BY VERTIV FOR MATCHING BATTERY + GND CABINETS THAT ARE CONNECTED TO THE UPS MODULE (RIGHT HAND SIDE ONLY).
  • Page 89 POWER CABLES FROM UPS DC LINK TO BATTERIES SHOULD BE SIZED FOR A TOTAL + GND MAXIMUM 2 VOLT DROP AT MAXIMUM DISCHARGE CURRENT. DC POWER CABLES ARE FURNISHED BY VERTIV FOR MATCHING BATTERY CABINETS THAT ARE CONNECTED TO THE UPS MODULE (RIGHT HAND SIDE ONLY). UPS CABINET #1 CONTROL WIRING AND POWER WIRING MUST BE RUN IN SEPARATE CONDUITS.
  • Page 90 POWER CABLES FROM UPS DC LINK TO BATTERIES SHOULD BE SIZED FOR A TOTAL MAXIMUM 2 VOLT DROP AT MAXIMUM DISCHARGE CURRENT. DC POWER CABLES ARE FURNISHED BY VERTIV FOR UPS CABINET #1 MATCHING BATTERY CABINETS THAT ARE CONNECTED TO THE UPS * MODULE BYPASS MODULE (RIGHT HAND SIDE ONLY).
  • Page 91 BE SIZED FOR A TOTAL MAXIMUM 2 VOLT DROP AT MAXIMUM DISCHARGE CURRENT. DC POWER CABLES ARE FURNISHED BY VERTIV FOR MATCHING BATTERY CABINETS THAT ARE CONNECTED TO THE UPS MODULE (RIGHT HAND SIDE ONLY). UPS RECTIFIER AND OUTPUT CABLES MUST BE RUN IN SEPARATE CONDUITS.
  • Page 92 1 OF 6 J. SHIPMAN ES1-05-S001 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/23/2018 1000kVA-1200kVA REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 93 2 OF 6 J. SHIPMAN ES1-05-S001 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/23/2018 1000kVA-1200kVA REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 94 3 OF 6 J. SHIPMAN ES1-05-S001 SMS AND 1+N MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/23/2018 1000kVA-1200kVA REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 95 4 OF 6 J. SHIPMAN ES1-05-S001 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/23/2018 1000kVA-1200kVA REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 96 5 OF 6 J. SHIPMAN ES1-05-S001 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/23/2018 1000kVA-1200kVA REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 97 6 OF 6 J. SHIPMAN ES1-05-S001 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/23/2018 1000kVA-1200kVA REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 98 1 OF 6 J. SHIPMAN ES1-05-S002 SMS AND 1+N ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 99 2 OF 6 J. SHIPMAN ES1-05-S002 SMS AND 1+N ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 100 J. SHIPMAN ES1-05-S002 SMS AND 1+N I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 101 4 OF 6 J. SHIPMAN ES1-05-S002 SMS AND 1+N ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 102 5 OF 6 J. SHIPMAN ES1-05-S002 SMS AND 1+N ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 103 6 OF 6 J. SHIPMAN ES1-05-S002 SMS AND 1+N ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 104 ES1-05-S003 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/23/2018 1000kVA-1200kVA WITH OPTIONAL SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 105 ES1-05-S003 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/23/2018 1000kVA-1200kVA WITH OPTIONAL SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 106 SMS, 1+N, AND N+1 MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/23/2018 1000kVA-1200kVA WITH OPTIONAL SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 107 ES1-05-S003 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/23/2018 1000kVA-1200kVA WITH OPTIONAL SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 108 ES1-05-S003 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/23/2018 1000kVA-1200kVA WITH OPTIONAL SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 109 ES1-05-S003 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/23/2018 1000kVA-1200kVA WITH OPTIONAL SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 110 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 111 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 112 SMS, 1+N, AND N+1 MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 113 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 114 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 115 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 116 ES1-05-S005 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH COMMON MODE CHOKE REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 117 ES1-05-S005 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH COMMON MODE CHOKE REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 118 SMS, 1+N, AND N+1 MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH COMMON MODE CHOKE REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 119 ES1-05-S005 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH COMMON MODE CHOKE REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 120 ES1-05-S005 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH COMMON MODE CHOKE REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 121 ES1-05-S005 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH COMMON MODE CHOKE REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 122 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 07/11/2017 1000kVA-1200kVA WITH COMMON MODE CHOKE AND BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 123 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 07/11/2017 1000kVA-1200kVA WITH COMMON MODE CHOKE AND BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 124 SMS, 1+N, AND N+1 MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 07/11/2017 1000kVA-1200kVA WITH COMMON MODE CHOKE AND BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 125 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 07/11/2017 1000kVA-1200kVA WITH COMMON MODE CHOKE AND BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 126 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 07/11/2017 1000kVA-1200kVA WITH COMMON MODE CHOKE AND BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 127 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 07/11/2017 1000kVA-1200kVA WITH COMMON MODE CHOKE AND BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 128 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH COMMON MODE CHOKE AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 129 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH COMMON MODE CHOKE AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 130 SMS, 1+N, AND N+1 MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH COMMON MODE CHOKE AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 131 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH COMMON MODE CHOKE AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 132 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH COMMON MODE CHOKE AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 133 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 1000kVA-1200kVA WITH COMMON MODE CHOKE AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 134 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 07/11/2017 1000kVA-1200kVA WITH COMMON MODE CHOKE, BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 135 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 07/11/2017 1000kVA-1200kVA WITH COMMON MODE CHOKE, BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 136 SMS, 1+N, AND N+1 MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 07/11/2017 1000kVA-1200kVA WITH COMMON MODE CHOKE, BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 137 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 07/11/2017 1000kVA-1200kVA WITH COMMON MODE CHOKE, BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 138 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 07/11/2017 1000kVA-1200kVA WITH COMMON MODE CHOKE, BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 139 DESIGNED BY: SMS, 1+N, AND N+1 MULTI-MODULE DATE (LATEST REV.) S. MAJOR 07/11/2017 1000kVA-1200kVA WITH COMMON MODE CHOKE, BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 P.O. BOX 29186 S. MAJOR COLUMBUS, OH 43229...
  • Page 140 1 OF 6 J. SHIPMAN ES1-05-S009 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 141 2 OF 6 J. SHIPMAN ES1-05-S009 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 142 3 OF 6 J. SHIPMAN ES1-05-S009 SMS AND 1+N MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 143 4 OF 6 J. SHIPMAN ES1-05-S009 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 144 5 OF 6 J. SHIPMAN ES1-05-S009 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 145 6 OF 6 J. SHIPMAN ES1-05-S009 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 146 1 OF 6 J. SHIPMAN ES1-05-S010 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 08/08/2017 625kVA-800kVA WITH BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 147 2 OF 6 J. SHIPMAN ES1-05-S010 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 08/08/2017 625kVA-800kVA WITH BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 148 J. SHIPMAN ES1-05-S010 SMS AND 1+N MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 08/08/2017 625kVA-800kVA WITH BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 149 4 OF 6 J. SHIPMAN ES1-05-S010 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 08/08/2017 625kVA-800kVA WITH BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 150 5 OF 6 J. SHIPMAN ES1-05-S010 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 08/08/2017 625kVA-800kVA WITH BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 151 6 OF 6 J. SHIPMAN ES1-05-S010 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 08/08/2017 625kVA-800kVA WITH BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 152 J. SHIPMAN ES1-05-S011 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 153 J. SHIPMAN ES1-05-S011 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 154 ES1-05-S011 SMS AND 1+N MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 155 J. SHIPMAN ES1-05-S011 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 156 J. SHIPMAN ES1-05-S011 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 157 J. SHIPMAN ES1-05-S011 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 158 ES1-05-S012 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 08/08/2017 625kVA-800kVA WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 159 ES1-05-S012 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 08/08/2017 625kVA-800kVA WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 160 SMS AND 1+N MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 08/08/2017 625kVA-800kVA WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 161 ES1-05-S012 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 08/08/2017 625kVA-800kVA WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 162 ES1-05-S012 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 08/08/2017 625kVA-800kVA WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 163 ES1-05-S012 SMS AND 1+N MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 08/08/2017 625kVA-800kVA WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 164 ES1-05-S013 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH COMMON MODE CHOKE REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 165 ES1-05-S013 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH COMMON MODE CHOKE REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 166 SMS, 1+N, AND N+1 MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH COMMON MODE CHOKE REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 167 ES1-05-S013 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH COMMON MODE CHOKE REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 168 ES1-05-S013 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH COMMON MODE CHOKE REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 169 ES1-05-S013 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH COMMON MODE CHOKE REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 170 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/19/2017 625kVA-800kVA WITH COMMON MODE CHOKE AND BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 171 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/19/2017 625kVA-800kVA WITH COMMON MODE CHOKE AND BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 172 SMS, 1+N, AND N+1 MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/19/2017 625kVA-800kVA WITH COMMON MODE CHOKE AND BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 173 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/19/2017 625kVA-800kVA WITH COMMON MODE CHOKE AND BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 174 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/19/2017 625kVA-800kVA WITH COMMON MODE CHOKE AND BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 175 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 0/19/2017 625kVA-800kVA WITH COMMON MODE CHOKE AND BFD REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 176 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH COMMON MODE CHOKE AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 177 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH COMMON MODE CHOKE AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 178 SMS, 1+N, AND N+1 MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH COMMON MODE CHOKE AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 179 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH COMMON MODE CHOKE AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 180 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH COMMON MODE CHOKE AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 181 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 03/27/2018 625kVA-800kVA WITH COMMON MODE CHOKE AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 182 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/19/2017 625kVA-800kVA WITH COMMON MODE CHOKE, BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 183 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/19/2017 625kVA-800kVA WITH COMMON MODE CHOKE, BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 184 SMS, 1+N, AND N+1 MULTI-MODULE I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/19/2017 625kVA-800kVA WITH COMMON MODE CHOKE, BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 185 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/19/2017 625kVA-800kVA WITH COMMON MODE CHOKE, BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 186 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/19/2017 625kVA-800kVA WITH COMMON MODE CHOKE, BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 187 SMS, 1+N, AND N+1 MULTI-MODULE ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/19/2017 625kVA-800kVA WITH COMMON MODE CHOKE, BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 188 1 OF 6 J. SHIPMAN ES1-05-S017 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA UPS, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 189 2 OF 6 J. SHIPMAN ES1-05-S017 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA UPS, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 190 J. SHIPMAN ES1-05-S017 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA UPS, 480V I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 191 4 OF 6 J. SHIPMAN ES1-05-S017 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA UPS, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 192 5 OF 6 J. SHIPMAN ES1-05-S017 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA UPS, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 193 6 OF 6 J. SHIPMAN ES1-05-S017 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA UPS, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 09/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 194 J. SHIPMAN ES1-05-S018 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V, WITH BFD ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 195 J. SHIPMAN ES1-05-S018 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V, WITH BFD ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 196 J. SHIPMAN ES1-05-S018 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V, WITH BFD ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 197 J. SHIPMAN ES1-05-S018 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V, WITH BFD ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 198 J. SHIPMAN ES1-05-S018 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V, WITH BFD ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 199 J. SHIPMAN ES1-05-S018 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V, WITH BFD ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 200 J. SHIPMAN ES1-05-S019 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH SHARING INDUCTORS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 201 J. SHIPMAN ES1-05-S019 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH SHARING INDUCTORS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 202 J. SHIPMAN ES1-05-S019 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH SHARING INDUCTORS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 203 J. SHIPMAN ES1-05-S019 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH SHARING INDUCTORS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 204 J. SHIPMAN ES1-05-S019 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 480V WITH SHARING INDUCTORS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 205 J. SHIPMAN ES1-05-S019 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH SHARING INDUCTORS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 206 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 207 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 208 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 209 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 210 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 211 SMS AND 1+N MULTI-MODULE, 500kVA-600kVA, 480V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 212 1 OF 6 J. SHIPMAN ES1-05-S021 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA UPS, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 10/11/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 213 2 OF 6 J. SHIPMAN ES1-05-S021 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA UPS, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 10/11/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 214 J. SHIPMAN ES1-05-S021 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA UPS, 415V I/O CABINET ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 10/11/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 215 4 OF 6 J. SHIPMAN ES1-05-S021 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA UPS, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 10/11/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 216 5 OF 6 J. SHIPMAN ES1-05-S021 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA UPS, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 10/11/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 217 6 OF 6 J. SHIPMAN ES1-05-S021 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA UPS, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 10/11/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 218 J. SHIPMAN ES1-05-S022 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V, WITH BFD ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 219 J. SHIPMAN ES1-05-S022 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V, WITH BFD ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 220 J. SHIPMAN ES1-05-S022 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V, WITH BFD ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 221 J. SHIPMAN ES1-05-S022 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V, WITH BFD ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 222 J. SHIPMAN ES1-05-S022 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V, WITH BFD ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 223 J. SHIPMAN ES1-05-S022 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V, WITH BFD ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 LIEBERT EXL S1 REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 224 J. SHIPMAN ES1-05-S023 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH SHARING INDUCTORS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 225 J. SHIPMAN ES1-05-S023 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH SHARING INDUCTORS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 226 J. SHIPMAN ES1-05-S023 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH SHARING INDUCTORS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 227 J. SHIPMAN ES1-05-S023 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH SHARING INDUCTORS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 228 J. SHIPMAN ES1-05-S023 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH SHARING INDUCTORS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 229 J. SHIPMAN ES1-05-S023 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH SHARING INDUCTORS REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 230 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 231 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 232 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 233 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 234 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 235 SMS AND 1+N MULTI-MODULE, 400kVA-500kVA, 415V ECN NO. DESIGNED BY: DATE (LATEST REV.) S. MAJOR 11/21/2018 WITH BFD AND SHARING INDUCTOR REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 S. MAJOR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 236 AP30-XP72B CG #7 MULTIPLE BUS SYNCHRONIZATION MODULE (MBSM) AP30-XP31 CG #10 TB1 (SEE NOTE 2) CG #11 EXTERNAL CUSTOMER RBB SHUNT TRIP LIEBERT EXL S1 UPS SHEET NO. DRAWN BY: TITLE DWG. NO. CABLE LAYOUT 1 OF 1 J. SHIPMAN...
  • Page 237 STANDALONE SYSTEM CG #1 MUST ONLY BE RUN TO MATCHING BATTERY CABINET #1. MATCHING BATTERY MATCHING BATTERY CABINET #1 CABINET #N TB1154:1-4 CG #1 CG #1 LIEBERT EXL S1 UPS SHEET NO. DRAWN BY: TITLE DWG. NO. CABLE LAYOUT 1 OF 1 J. SHIPMAN ES1-19-S003 DC SOURCE ECN NO.
  • Page 238 SOURCE #N TEMP SENSE NOTE 1 NOTE 1 BATTERY BIB #1 BATTERY BIB #N TB1154:1-4 CG #1 CG #1 LIEBERT EXL S1 UPS SHEET NO. DRAWN BY: TITLE DWG. NO. CABLE LAYOUT 1 OF 1 K. STACY ES1-19-S004 DC SOURCE ECN NO.
  • Page 239 NOTE 1 NOTE 1 MBD BIB #1 BATTERY BIB #1 BATTERY BIB #N CG #1 CG #1 CG #1 TB1154:1-4 LIEBERT EXL S1 UPS SHEET NO. DRAWN BY: TITLE DWG. NO. CABLE LAYOUT 1 OF 1 K. STACY ES1-19-S005 DC SOURCE ECN NO.
  • Page 240 NOTES ALL CABLE GROUPS SHOULD BE RUN IN SEPARATE CONDUIT TO HELP PREVENT SIGNAL INTERFERENCE. TB1 LOCATED IN I/O CABINET NEXT TO 120VAC POWER SUPPLY. LIEBERT EXL S1 UPS AP30/-XP12 : 4-5 CG #4 SKRU ENABLED AP30/XP10: 1-4 CG #5...
  • Page 241 ES1-19-S024 SYSTEM CONTROLS, DISTRIBUTED STATIC SWITCH ECN NO. DESIGNED BY: DATE (LATEST REV.) B. COGAR 07/13/2018 (1+N) MULTI-MODULE AND PARALLELING CABINET REF DWG. APPROVED BY: REVISION 1050 DEARBORN DR LIEBERT EXL S1 B. COGAR P.O. BOX 29186 COLUMBUS, OH 43229...
  • Page 242 Vertiv | EXL S1™ Installer Guide...
  • Page 243 VertivCo.com | Vertiv Headquarters, 1050 Dearborn Drive, Columbus, OH, 43085, USA © 2018 Vertiv Co. All rights reserved. Vertiv and the Vertiv logo are trademarks or registered trademarks of Vertiv Co. All other names and logos referred to are trade names, trademarks or registered trademarks of their respective owners. While every precaution has been taken to ensure accuracy and completeness herein, Vertiv Co.

Table of Contents

Save PDF
