LIEBERT® EXS™ UPS
208/220­ ‑ V­30­KVA
Quick Installation Guide
IMPORTANT: Before installing,
connecting to supply or operating
your Liebert EXS UPS, please
review the Safety and Regulatory
Statements sheet. For detailed
installation, operating, maintenance
and troubleshooting information
visit the EXS product page for the
EXS Installer/User Guide available
at www.Vertiv.com or use the QR
code below.

INSTALLATION

Inspecting the UPS

Inspect the UPS for any signs of
obvious damage. If damage is
visible, do not proceed. File a
damage claim with the carrier
immediately and send a copy to:
Vertiv Corporation
1050 Dearborn Drive
P.O. Box 29186
Columbus OH 43085
Attn. Traffic Department

Choosing a location

The UPS measures 23.6 x 33.5 x
63 in. (600 x 850 x 1600 mm).
Install the UPS in a clean, well-
ventilated environment with the
ambient temperature range of 32°F
to 104°F (0°C to 40°C).
For installation and maintenance,
3 ft (914 mm) clearance is required
in the front and rear of the unit. For
proper ventilation during normal
operation, leave 8 in. (203 mm)
clearance on the rear. No side
clearance is required for installation
or operation of the UPS.

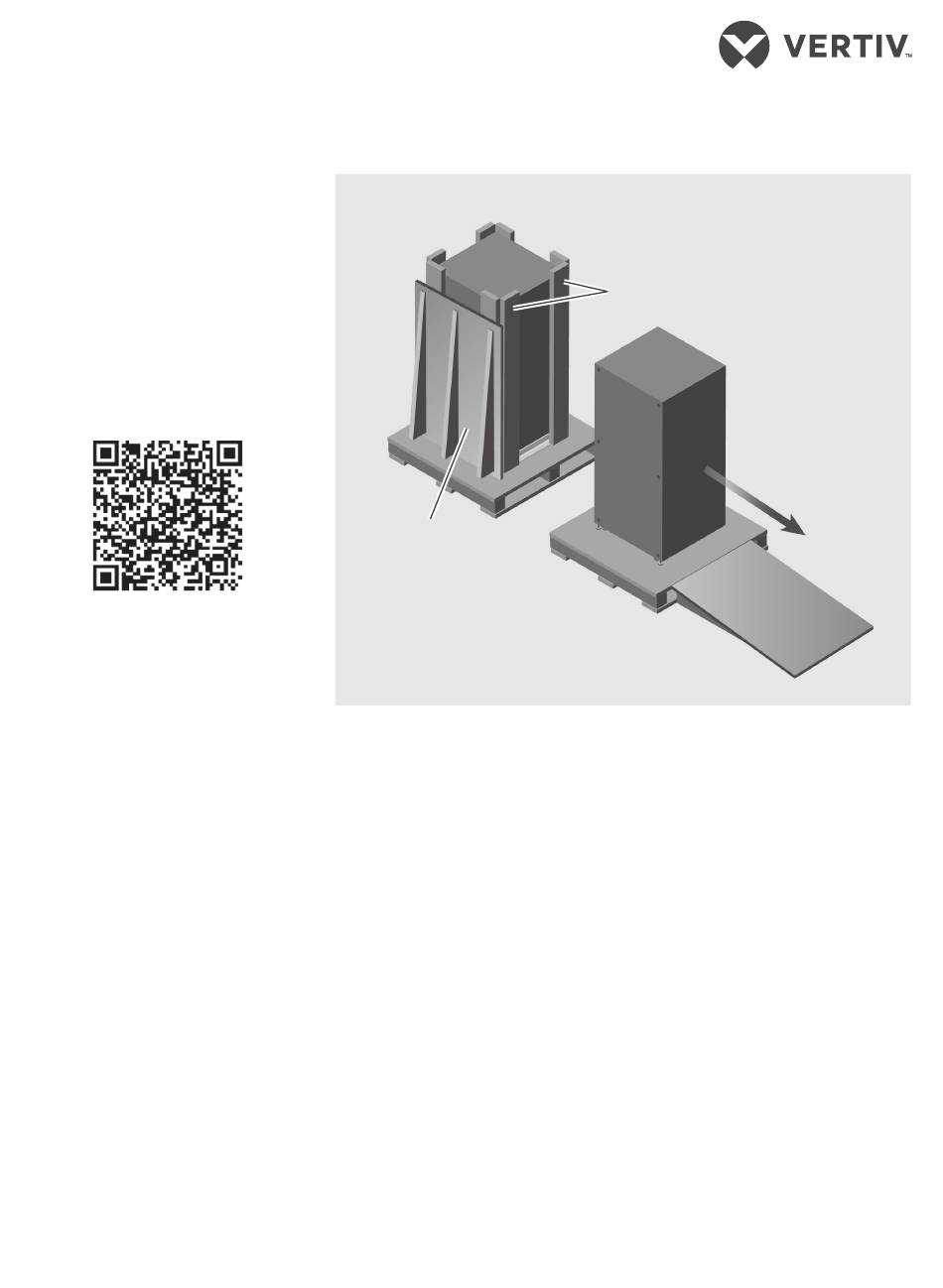

Removing Packaging and Moving the UPS
Ramp in
shipping position
Handling and unpacking
the unit
The unit weighs up to 1,650 lb
(748 kg), depending on the number
of batteries included. The UPS
ships on a pallet and is equipped
with casters that permit two or
more people to roll it off the pallet
for installation. Use a forklift or
pallet jack to move the palleted
UPS as close as possible to the
installation location before
removing packing material or
loosening shipping brackets.
1. Remove the protective
packaging, shown in the
illustration at the top-right.
2. Locate the accessories
package on top of the UPS and
set aside.
3. Use a 16-mm (5/8 -in.) wrench
or socket to un-bolt the
shipping brackets from the
pallet.
Packaging
Repositioned ramp
placed for unit
transfer to
installation location
4. Un-bolt the shipping brackets
from the front and rear of the
UPS. Remove the front lower
panel from the UPS to remove
the front bracket.
5. Make sure the leveling feet are
raised so they do not interfere
when rolling the unit on the
casters.
6. Roll the unit down the ramp to
the installation location, see
the illustration above, then
lower the leveling feet to fix the
UPS in the install location.
