GENERAL ASSEMBLY

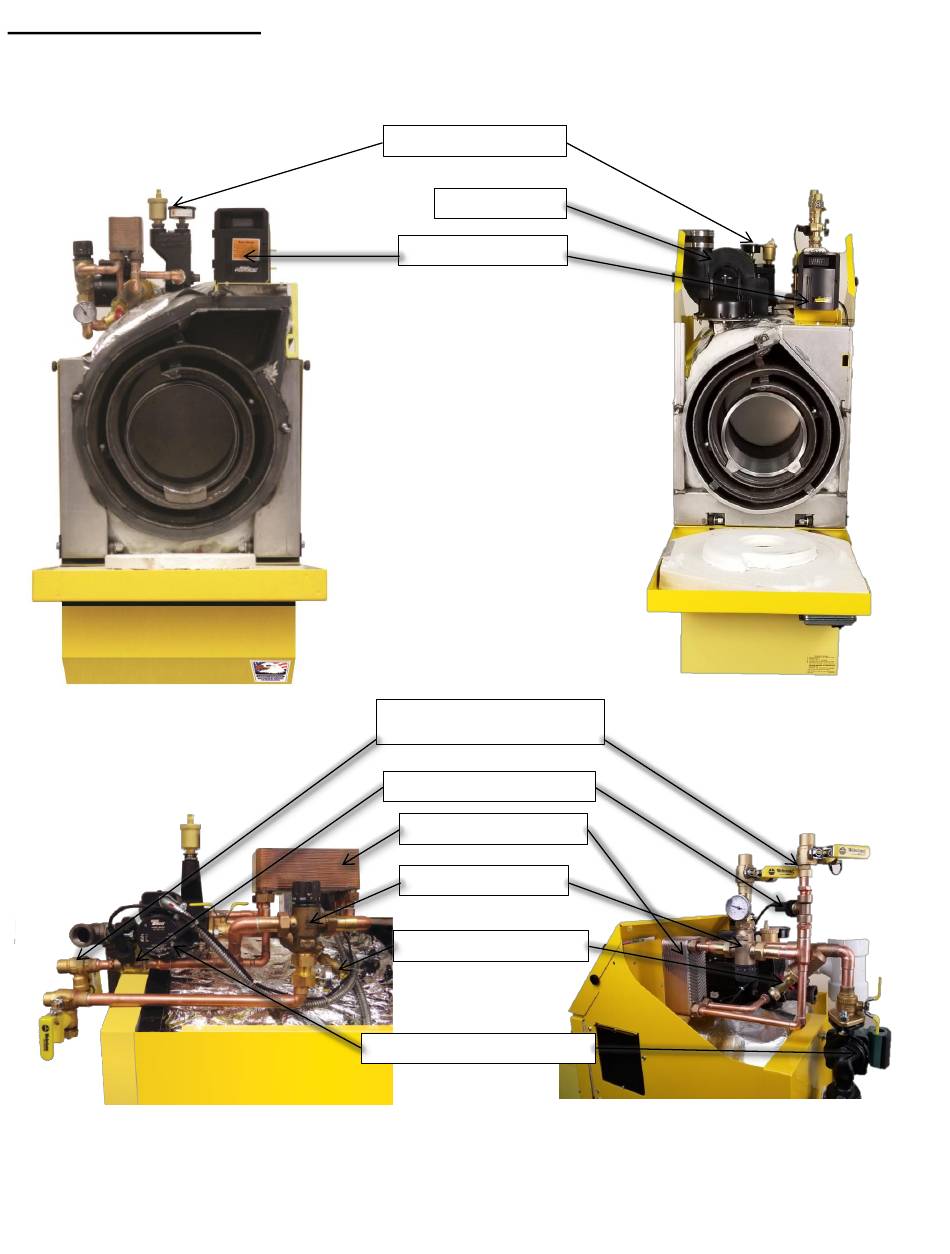

Assembly of various packaged units is illustrated in figure 2A and 2B as well as throughout this manual. The use of non-
Energy Kinetics supplied pump, controls and accessories should follow good practices. The diagrams and locations
presented in the manual are recommended.
Air Vent and T&P Gauge
Figure 2A
Power Venter
Ascent Hydrostat
Ascent Plus
Ascent Combi
Domestic Clean-in-place Fittings.
Included for Field Installation
Combi EK1T+
EK1T
For Polypropylene Venting
For Conventional Venting
Domestic Flow Switch
#18 Plate Heat Exchanger
ASSE 1017 Mix Valve
Boiler Bypass Strainer/Drain
Domestic/Boiler Bypass Circulator
Ascent Oil – August 2019
