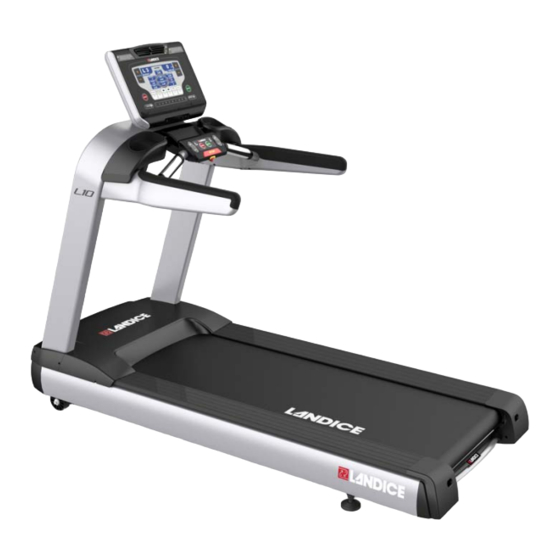

L10 Treadmill
90 Series
Installation Manual
Part Number: 73208-2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Landice 90 Series

Summary of Contents for Landice 90 Series

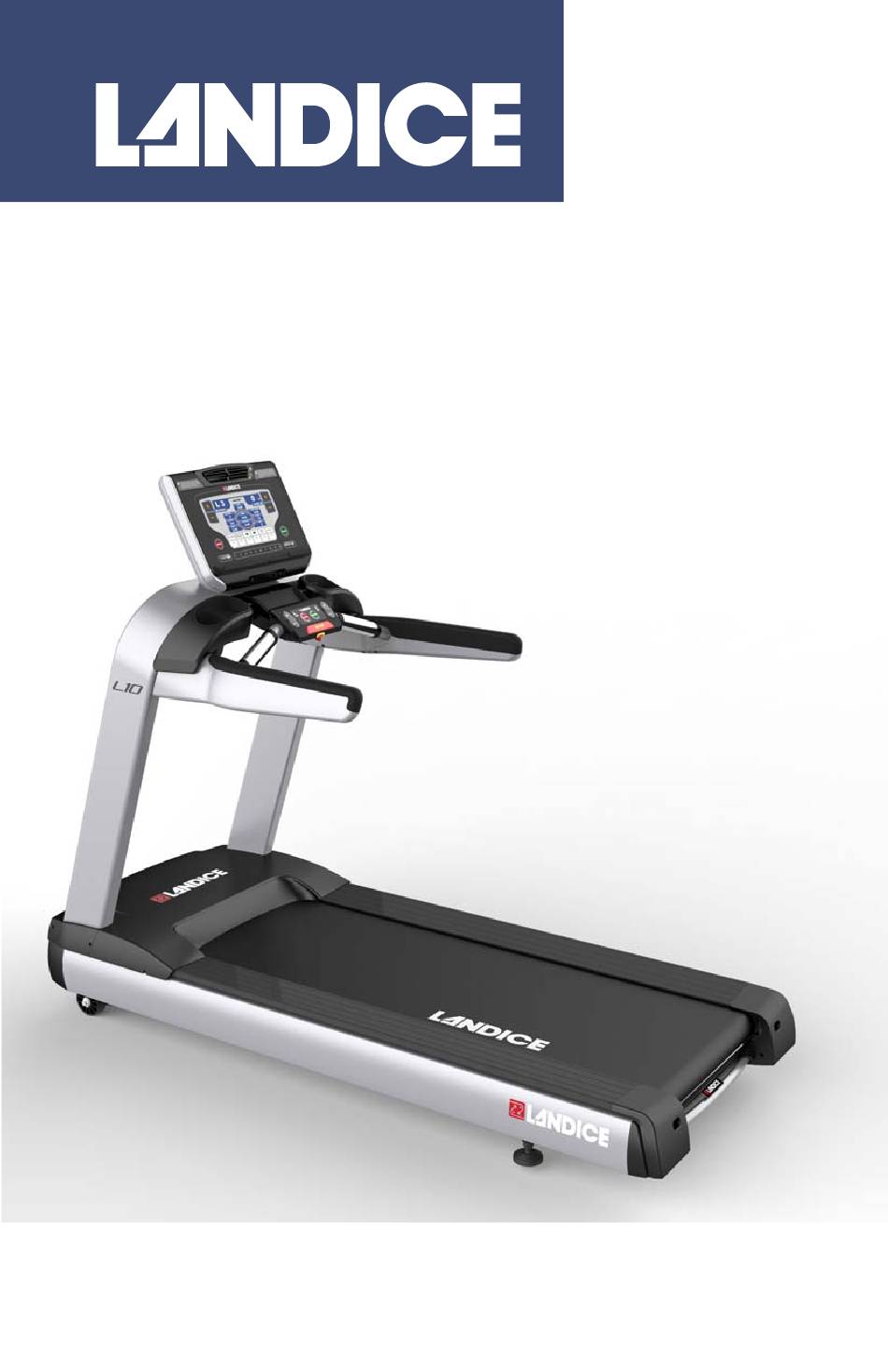

  • Page 1 L10 Treadmill 90 Series Installation Manual Part Number: 73208-2...

  • Page 2: Table Of Contents

    Contents Contents 1. Important Safety Instructions ........... 3 1.1. Safety................... 3 1.2. Grounding Instructions............4 1.3. 120-Volt Treadmills .............. 5 1.4. 200 – 240-Volt Treadmills ............ 5 2. Installation ................. 7 2.1. Tools Needed ..............7 2.2. Hardware Included............... 7 2.3.

  • Page 3: Important Safety Instructions

    1. Important Safety Instructions 1.1. Safety Read all instructions before using the treadmill. Save these instructions. Veuillez lire toutes les instructions avant d'utiliser le tapis roulant. VEUILLEZ CONSERVER CES INSTRUCTIONS. To reduce the risk of electric shock: always unplug DANGER the treadmill from the electrical outlet immediately after using and before cleaning.

  • Page 4: Grounding Instructions

    Important Safety Instructions Failure to leave ample clearance around the WARNING treadmill could cause you to be trapped between the treadmill and a wall if you fall, resulting in burns or other serious injury from the moving treadbelt. Allow a minimum clearance of 18 inches (46 cm) on each side of the treadmill.

  • Page 5: 120-Volt Treadmills

    Important Safety Instructions Improper connection of the grounding connector DANGER can result in a risk of electric shock. Check with a qualified electrician/service technician if you are in doubt as to whether the treadmill is properly grounded. Do not modify the plug provided with the treadmill–if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
  • Page 6 Important Safety Instructions Un mauvais raccordement à l'équipement de mise DANGER à la terre vous expose à un risque d'électrocution. Renseignez-vous auprès d'un électricien/ technicien de service qualifié en cas de doute sur la mise à la terre correcte du tapis roulant. Ne modifiez pas la fiche fournie avec le tapis roulant: si elle ne convient pas à...

  • Page 7: Installation

    2. Installation 2.1. Tools Needed • M4-Allen Wrench 4mm (#22 on blister pack) • M6-Allen Wrench 6mm (#21 on blister pack, blue handle) Installer provides the following tools: • Med Phillips Screwdriver • Socket wrench 16mm • Open end wrench 16mm 2.2.

  • Page 8: Unpacking

    Installation Unpacking • M10x25 bolts: 4 pieces (#10 on blister pack) • M10 Nylon Lock Nuts: 2 pieces (#11 on blister pack) • M10 Flat Washers: 2 pieces (#12 on blister pack) • M4x75 Phillips screws: 4 pieces (#15 on blister pack) 2.3.
  • Page 9 Unpacking Installation 2. Move boxed unit to room where it will be used, cut the straps, and take off the top of the box (Figure 2-3). Figure 2-3. Open Shipping Box Console/ Display Box Large Accessory 3. Remove wood bracing from inside the box. You will have to slide larger box toward center to remove wood brace covering it (Figure 2-4).
  • Page 10 Installation Unpacking Figure 2-5. Large Accessory Box Contents 5. Open smaller box. Inside you will find the console/display (Figure 2-6). Figure 2-6. Console/Display 6. Remove Upright from box (Figure 2-7). Figure 2-7. Packed Upright Upright...
  • Page 11 Unpacking Installation 7. Cut open the box and remove bubble wrap (Figure 2-8). Lift motor cover off and set aside. Figure 2-8. Packed Base 8. Remove the Treadmill base from the box and place where it will be used as determined in Step 1. One person uses the Grab Bar and two people lift at each front corner as shown in Figure 2-9.

  • Page 12: Assembly

    Installation Assembly 2.4. Assembly 1. On both sides: The M10x165 and M10x180 Hex Head Bolts used to secure the Upright to the Frame are shipped in the Frame, held in place during shipment with 16mm nuts. Remove and discard the nuts and allow bolts to slide down and rest on the floor (Figure 2-10).
  • Page 13 Assembly Installation Figure 2-11. Upright Installation Upright Nylon Nut Welded Nut Flat Washer Alignment Pin Rear Bolt Front Bolt 4. Remove the two Nylon Lock Nuts #11 and Flat Washers #12 from the blister pack. 5. On both sides: Push the Rear Bolt up through the Frame and Upright Base Plate and install the Nylon Lock Nuts and Flat Washers.
  • Page 14 Installation Assembly 8. Tighten all four M10x25 Hex Head Bolts. 9. Tighten remaining hardware found in Step 1. 10. Slide Remote Console Assembly onto Center Upright Bracket and the End Plates into the Side Brackets as shown in Figure 2-13. Figure 2-13.
  • Page 15 Assembly Installation 12. On both sides: Attach the Remote Console Assembly to the Upright Brackets using one M8x15 Socket Head Cap Screw, found on blister pack (Figure 2-15). Secure with 6mm Allen wrench. Figure 2-15. Remote Console Assembly Plate Hardware (both sides) M8x15 Socket Head Cap Screw...
  • Page 16 Installation Assembly 14. Loosely attach each Handrail to the Upright Bracket and the Remote Console Assembly End Plates with M8x15 Socket Head Cap Screws and Lock Washers. Tighten all Screws that secure the Remote Console Assembly to the Upright (6 per side, Figure 2-17). Figure 2-17.
  • Page 17 Assembly Installation Figure 2-18. Accessory Tray Installation - Upper Screws Ribbon Cable Accessory Cover from Remote Console Pulse Cable from Remote Console 17. Route the Ribbon Cable and Pulse Cable through the hole in the Accessory Tray and the Upright indicated by the red arrow (Figure 2-18).
  • Page 18 Installation Assembly 18. Secure the Accessory Tray from above with four M6x15 Button Head Cap Screws as shown using the 4mm Allen wrench (Figure 2-19). 19. Secure the tray from underneath with two M6x15 Button Head Cap Screws as shown using the 4mm Allen wrench (Figure 2-20). Figure 2-20.
  • Page 19 Assembly Installation 21. Locate the Wire Tie coming from the Upright Cable Routing Hole as shown in the following figure. Wrap the wire tie around the Upper Wire Harness and feed the connector into the upright and pull the Upper Wire Harness through the Upright and out of the Upper Access Hole (Figure 2-22).
  • Page 20 Installation Assembly Figure 2-23. Console Assembly Installation (cables not shown for clarity) Keyway (both sides) Stud (both sides) 24. Remove four M6X75 button head cap screws from blister pack. Using 4mm Allen wrench, secure Console/Display assembly to upright (Figure 2-24). Figure 2-24.

  • Page 21: Cover Installation

    Cover Installation Installation Figure 2-25. Accessory Cover Installation Notch 2.5. Cover Installation 1. Install the Motor Cover using two M5x25 Socket Head Cap Screws, found on blister pack, as shown in Figure 2-26. Figure 2-26. Motor Cover Inner Screws Screws 2.
  • Page 22 Installation Cover Installation Figure 2-27. Motor Cover Outer Screws M5x25 Socket Tabs Head Cap Screws (2X) Forward Cover (2X) M5x25 Socket Head Cap Screws (4X) 3. Install the four M5x25 Socket Head Cap Screws found on blister pack (Figure 2-27). 4.

  • Page 23: Leveling Treadmill

    Leveling Treadmill Installation 2.6. Leveling Treadmill 1. Ensure that all feet touch the floor: Loosen the 19mm Jam Nut and the 14mm Adjustment Nut using open end or adjustable wrench and turn the Adjustment Nut until the foot touches the floor (Figure 2-28).
  • Page 24 Installation Leveling Treadmill 3. When the bubble is centered on the level, lock each leveling foot into place by tightening the 19mm nut against the bottom of the frame. Do not plug treadmill into a surge WARNING suppressor or GFI outlet. Ne branchez pas le tapis roulant dans un AVERTISSEMENT suppresseur de surtension ou une sortie GFCI.

  • Page 25: Treadbelt Tensioning

    Treadbelt Tensioning Installation 2.7. Treadbelt Tensioning 1. Treadbelts are tensioned at the factory prior to shipment and normally need no adjustment. To determine if the treadbelt needs adjustment, straddle the treadbelt by stepping on the straddle covers. Start the treadmill, step on the treadbelt and increase speed to 3mph.

  • Page 26: Treadbelt Tracking

    Installation Treadbelt Tracking 2.8. Treadbelt Tracking 1. Ensure that the Treadbelt tracks properly. Treadbelt tracking is maintained by ensuring that the drive and take-up rollers are parallel, each is at right angles to the frame, so that the treadbelt tension from side to side is equal as shown in the following figure. If the treadbelt is running diagonally, with unequal gaps between the treadbelt and sides then the rollers must be adjusted (see Figure 2- 30).
  • Page 27 Treadbelt Tracking Installation This example assumes that only the take-up roller is out of Note: alignment. You might encounter a situation in which both rollers are out of alignment but the same process applies. a. Turn treadmill on, and bring speed up to 2.0 mph. b.
  • Page 28 111 Canfield Avenue, Suite A-1, Randolph, NJ 07869 1-800-LANDICE U.S. Tel. (+1) 973-927-9010 · Fax (+1) 973-927-0630 International Tel. (+1) 973-927-9010 www.landice.com...
