1.2 Functional Overview of the TMS320F240 EVM

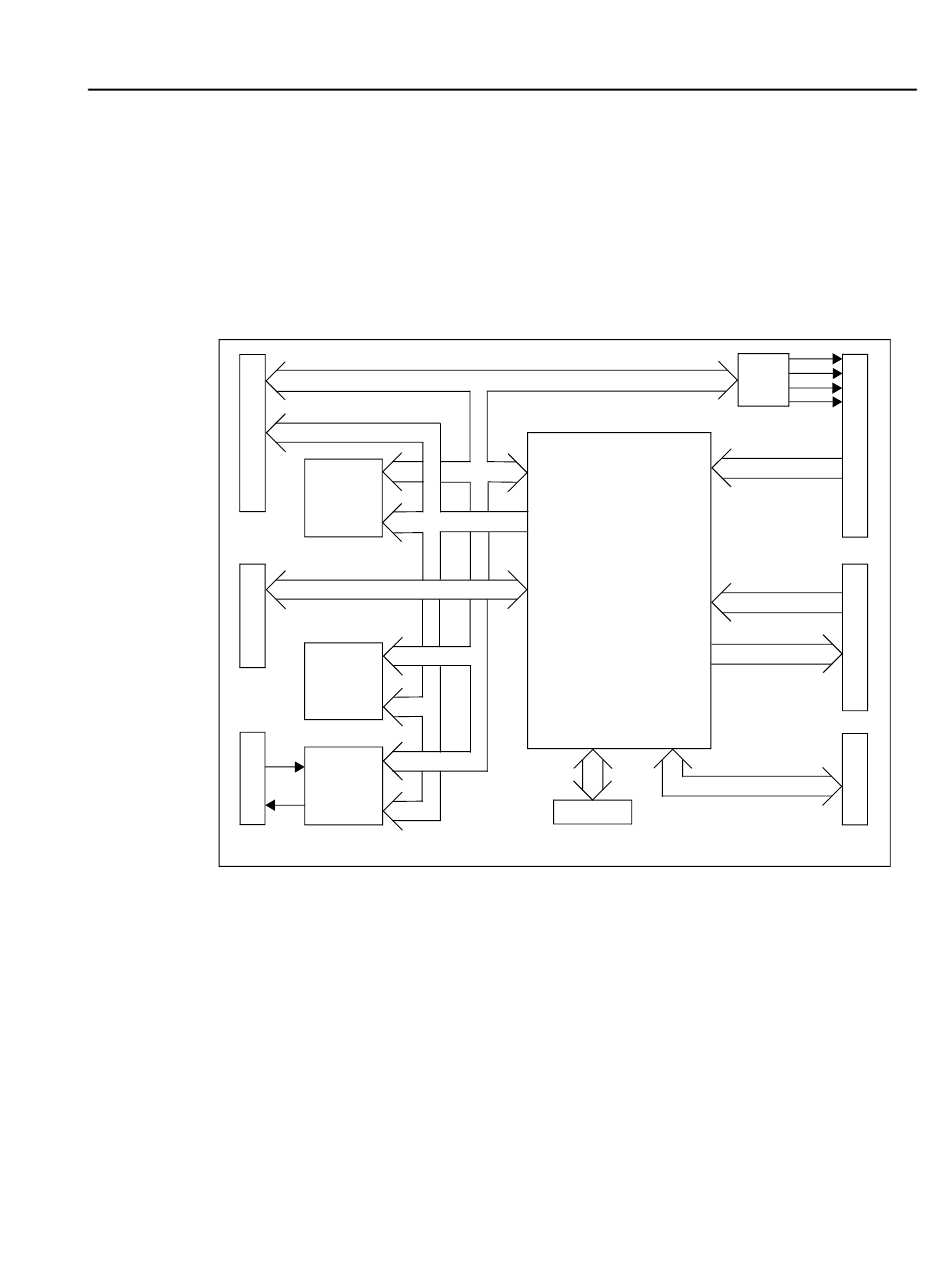

Figure 1-1 shows a block diagram of the basic configuration for the F240 EVM. The
major interfaces of the EVM include the target ram and rom interface, target UART,
analog interface, and expansion interface.
The F240 interfaces to 128K Words of zero wait-state static memory. An external I/O
interface supports 65,000 parallel I/O ports and optional high speed synchronous serial
port. A Flash Boot Rom can be mapped into the memory interface.
